1.3

Evaluating and recording the diagnosis

Viewing the report
1. Click on the "View" button in the "ANT-20 NEXT - [Application]" window.

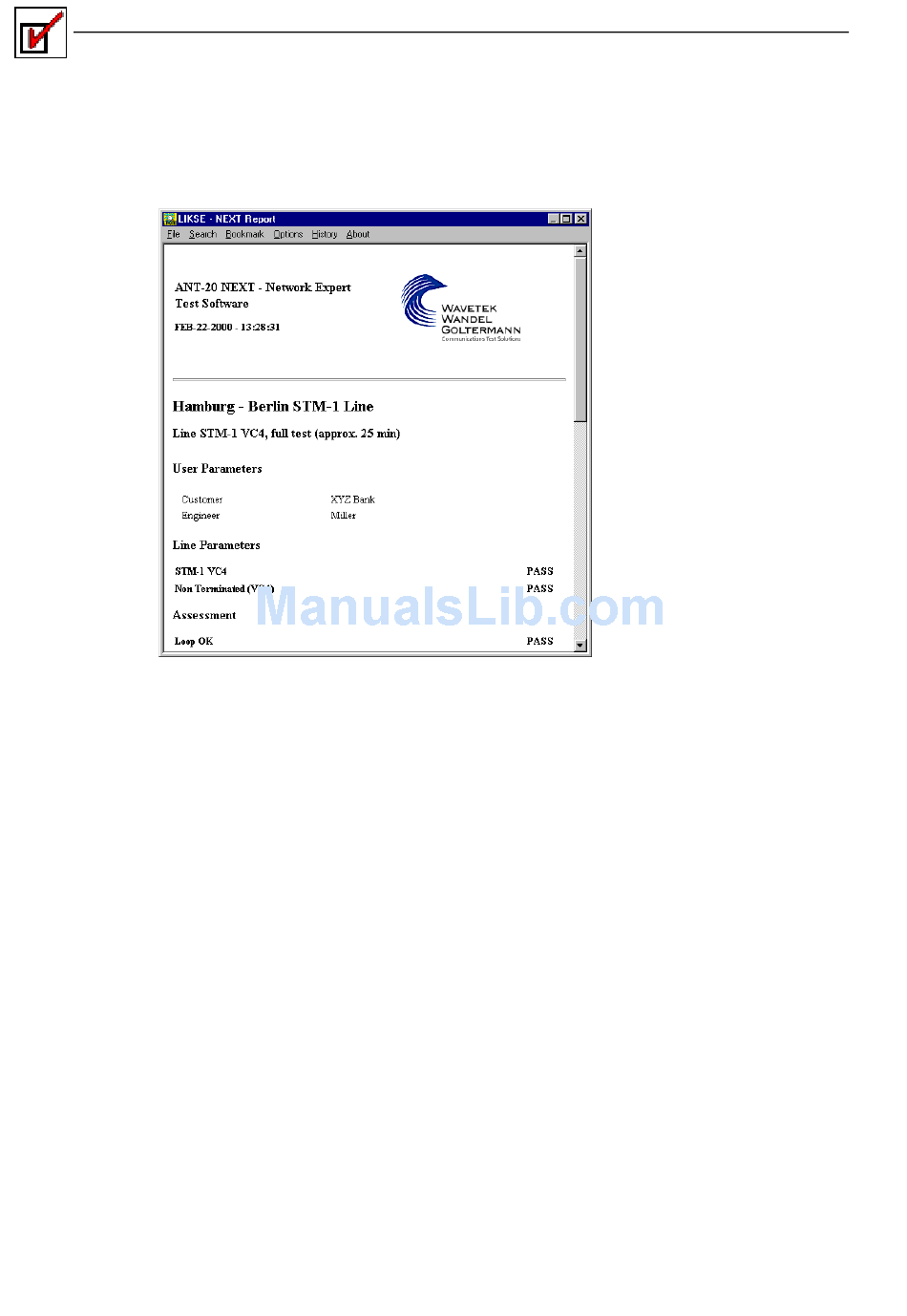

An external HTML viewer window opens with the report of the diagnosis.
Fig. O-10
2. To view further details in the report, click on the scroll bars and / or the context-sensitive text
in the lower part of the report.
Note:
Printing the report
1. Click on the "Print Preview" menu item in the "File" menu.
A preview of the printout is displayed.
2. Click on "Print".
The currently-loaded page of the report will be printed out.
O-8
Diagnosis report display
Text in the HTML viewer is color-coded:
Black: Instrument setup and measurements assessed as "OK" and results
that correspond with expectations
Red: Incorrect measurements or results that contradict expectations
Yellow: Warnings
