ANT-20SE
2.6

Creating and customizing applications

An application is defined by the following information:
• The required line characteristics
• The weighting or evaluation of the possible diagnoses
• The descriptions of the possible causes of problems
• The sets of parameters (measurement times, tolerance limits, etc.) for the individual
measurements
The following sections describe how you can create and customize a new application.
2.6.1

Creating a new application

1. Click on the "New" menu item in the "Application" menu in the "ANT-20 NEXT - [Application]"
window.
The "Define New Application" window opens.

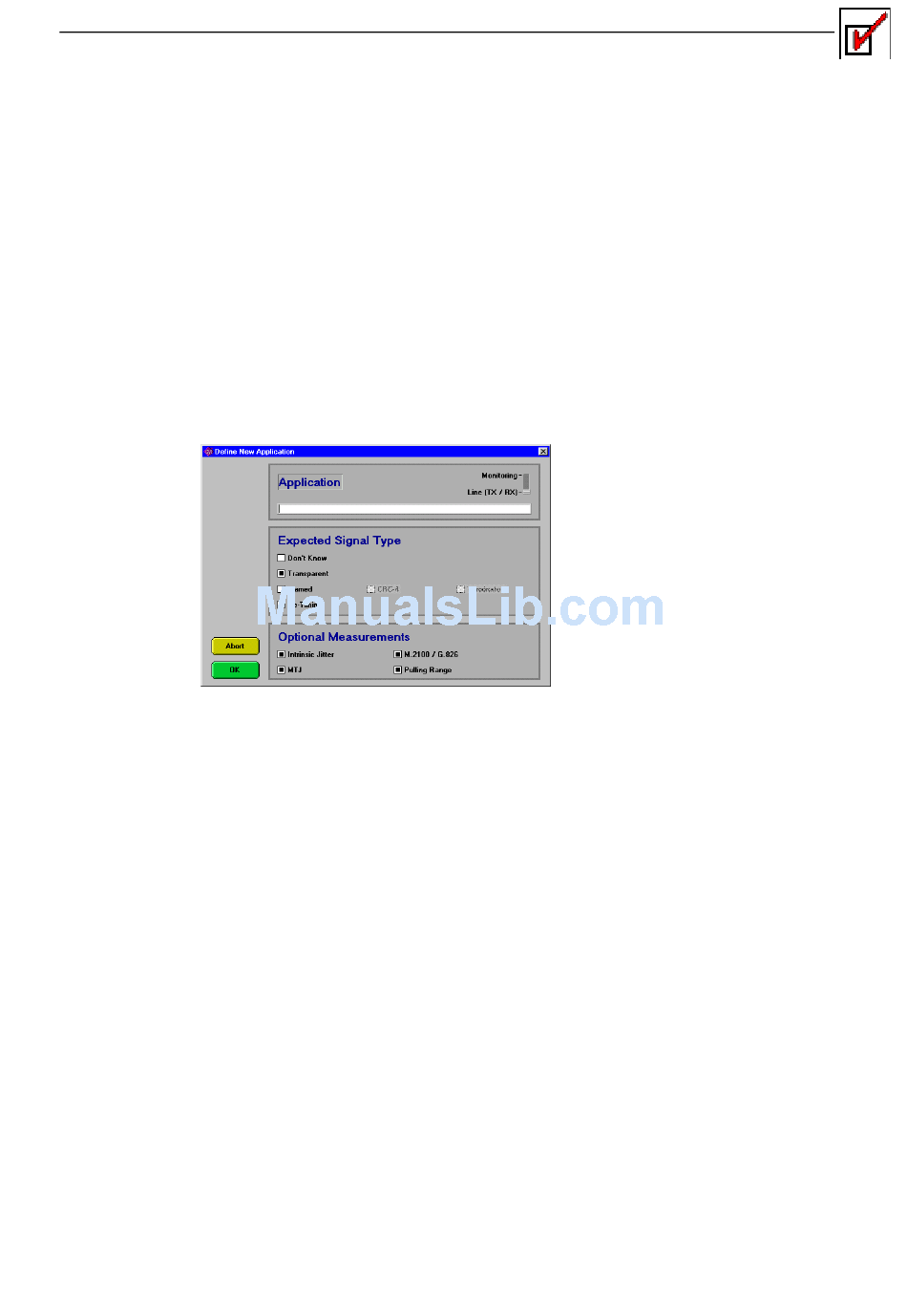

Fig. O-26
2. Enter a description (up to 255 characters) for the new application in the text box in the
"Application" field.
3. Select the type of application: "Monitoring" or "Line (TX/RX)".
4. Select the expected characteristics under "Expected Signal Type".
5. Select the optional measurements that you want to perform ("Optional Measurements").
6. Click on the "OK" button.
Note: A description of the application must be entered, otherwise an error message will be
The next section tells you how to customize the new application to meet your requirements.
Operating
"Define New Application" window
displayed when you exit from the window.
ANT-20 NEXT
O-21
