ANT-20SE
• The "Save Report - [Application name]" window displays:
– PASS (green)
– FAIL (red)
– ABORT (yellow)
• "Ready" or "Abort" is shown next to "Diagnosis" in the "ANT-20 NEXT - [Application]"
window:
– Status LED green
– Status LED red
– Status LED yellow
• Alarms
– Alarm LED red
– Alarm LED green
Saving the report
1. Click on the "Save" button in the "Save Report - [Application name]" window.
The "Save Report" window opens.

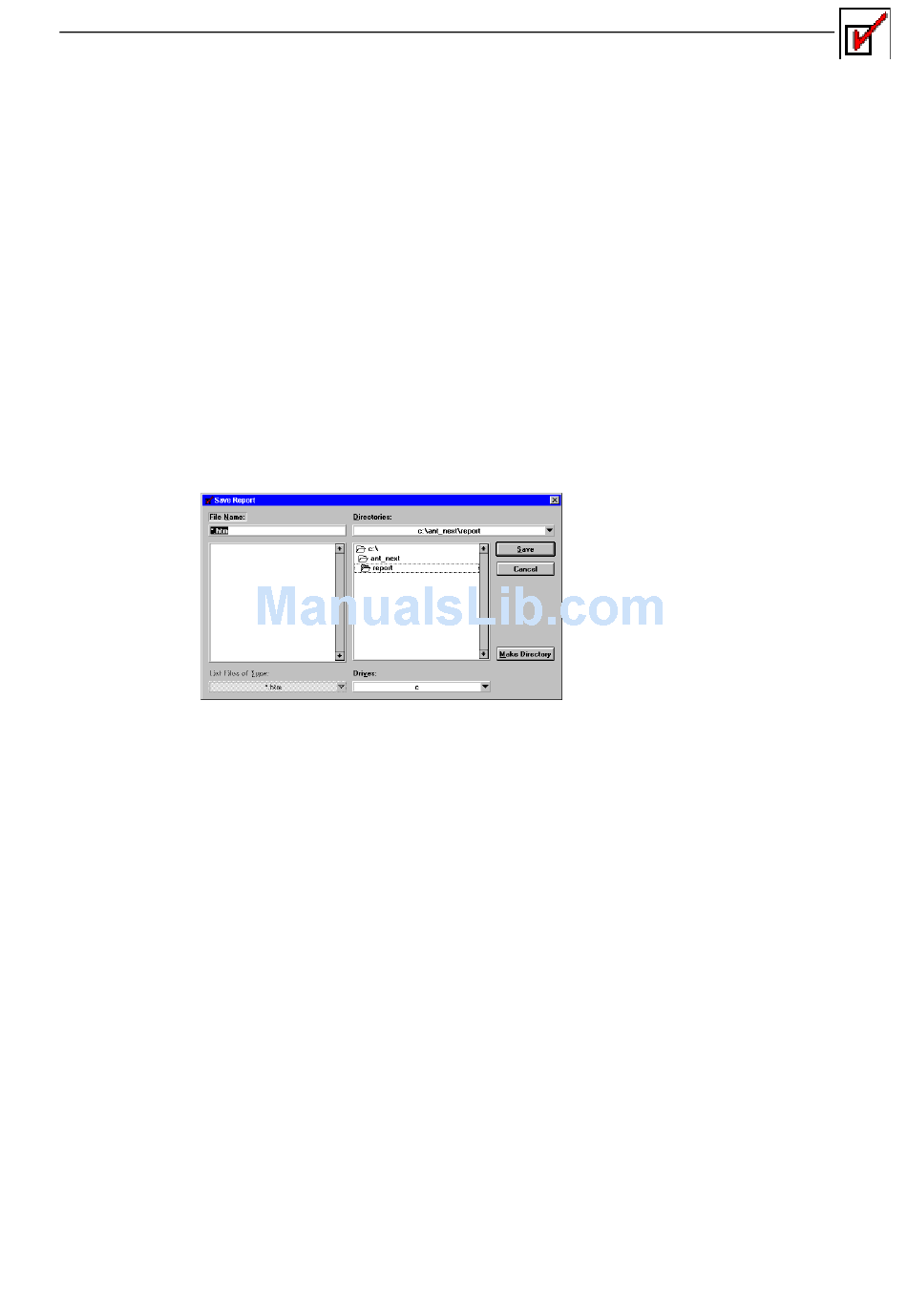

Fig. O-9
2. Enter a name for the report in the "File Name:" text box: File name extension ".htm".
3. Click on "Save".
The report is saved in HTML format under the name you entered. The "Save Report" window
and the "Save Report - [Application name]" window close.
Operating
if the diagnosis showed no faults
if faults were detected by the diagnosis
if the diagnosis was terminated prematurely
No faults diagnosed
Diagnosis detected faults
Warning
An alarm occurred during diagnosis.
No alarms occurred.
"Save Report" window
ANT-20 NEXT
O-7
