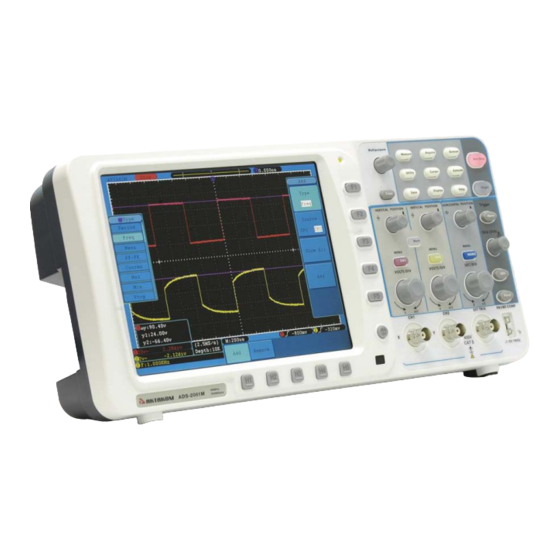

Aktakom ADS2061 User Manual

Ads series smart digital storage oscilloscopes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ADS Series
Smart Digital Storage Oscilloscopes
User Manual
■ ADS2061
■ ADS2111
■ ADS2121
■ ADS2221
WWW.AKTAKOM.COM

Advertisement

Table of Contents
loading

Related Manuals for Aktakom ADS2061

Summary of Contents for Aktakom ADS2061

  • Page 1 ADS Series Smart Digital Storage Oscilloscopes User Manual ■ ADS2061 ■ ADS2111 ■ ADS2121 ■ ADS2221 WWW.AKTAKOM.COM...
  • Page 2 product.

  • Page 3: Table Of Contents

    Table of Contents 1. General Safety Requirements ..................1 2. Safety Terms and Symbols ....................2 3. General Characteristics ....................4 4. Junior User Guidebook ....................5 Introduction to the Structure of the Oscilloscope ..............6 Front panel ............................... 6 Left side panel ............................
  • Page 4 How to measure with cursors ......................... 62 How to use Autoscale ..........................67 How to Use Executive Buttons....................... 69 6. Demonstration ....................... 71 Example 1: Measurement of Simple Signals ................71 Example 2: Gain of the Amplifier in the Metering Circuit ........... 72 Example 3: Capture the Single Signal ..................

  • Page 5: General Safety Requirements

    1. General Safety Requirements Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent this product or any other products connected from damage. In order to avoid any contingent danger, this product is only used within the range specified.

  • Page 6: Safety Terms And Symbols

    2. Safety Terms and Symbols Safety Terms Terms in this manual: The following terms may appear in this manual: Warning: A warning statement indicates the conditions and actions which may endanger the life safety. Note: A note statement indicates the conditions and actions which may cause damage to this product or other property.
  • Page 7 To avoid body damage and prevent product and connected equipment dam. This product can only be used in the specified applications. Carefully read the following safety information before using the test tool. Warning: To avoid fire or electrical shock if an oscilloscope input is connected to more than 42V peak (30Vrms) or on circuits of more than 4800VA, please take note of below items: ...

  • Page 8: General Characteristics

    3. General Characteristics  Bandwidth: 60MHz — 300 MHz;  Sample rate(real time): 500MS/s — 3.2GS/s;  Dual channel, 10M points on each channel for the Record length;  Autoscale function;  7cm smart design body;  8 inch high definition TFT display (800 x 600 pixels); ...

  • Page 9: Junior User Guidebook

    4. Junior User Guidebook This chapter deals with the following topics mainly:  Introduction to the structure of the oscilloscope  Introduction to the user interface  How to implement the general inspection  How to implement the function inspection ...

  • Page 10: Introduction To The Structure Of The Oscilloscope

    Introduction to the Structure of the Oscilloscope When you get a new-type oscilloscope, you should get acquainted with its front panel at first and the SDS series digital storage oscilloscope is no exception. This chapter makes a simple description of the operation and function of the front panel of the SDS series oscilloscope, enabling you to be familiar with the use of the SDS series oscilloscope in the shortest time.

  • Page 11: Left Side Panel

    there is battery inside DSO). Yellow light: Indicating DSO connect with AC Power and the battery is in charging (if there is battery inside DSO) Dim: Only powered by battery without connecting AC Power 4. Control (key and knob) area 5.

  • Page 12: Rear Panel

    the oscilloscope regarded as “Host equipment”. For example: upgrading software by USB flash disk needs to use this port. 2. USB Device port: It is used to transfer data when external USB equipment connects to the oscilloscope regarded as “Device equipment”. For example: to use this port when connect PC to the oscilloscope by USB.

  • Page 13: Control (Key And Knob) Area

    Control (key and knob) area Fig. 4-5 Keys Overview 1. Menu option setting: H1~H5 2. Menu option setting: F1~F5 3. Menu off：turn off the menu 4. M knob(Multipurpose knob) 5. Function key area: Total 12 keys 6. Vertical control area with 3 keys and 4 knobs. “CH1 MENU”...

  • Page 14: User Interface Introduction

    User interface introduction Fig. 4-6 Illustrative Drawing of Display Interfaces 1. Waveform Viewing Area. 2. The Trigger State indicates the following information: Auto: The oscilloscope is under the Automatic mode and is collecting the waveform under the non-trigger state. Trig: The oscilloscope has already detected a trigger signal and is collecting the after-triggering information.
  • Page 15 6. It shows present triggering value and displays the site of present window in internal memory. 7. It shows setting time (see “Config” on P54 ). It indicates that there is a U disk connecting with the oscilloscope. Indicating battery power status (see “Display” on P55 ). 10.

  • Page 16: How To Implement The General Inspection

    “Accessories” of this Manual. You can check whether there is any loss of accessories with reference to this description. If it is found that there is any accessory lost or damaged, please get in touch with the distributor of AKTAKOM responsible for this service or the AKTAKOM’s local offices.

  • Page 17: How To Implement The Function Inspection

    How to implement the Function Inspection Make a fast function check to verify the normal operation of the instrument, according to the following steps: 1. Connect the power cord to a power source. Turn on the Power Switch Button ― ○ on the left side (make sure the “―” side is pressed down). Then, push down the button of the “...

  • Page 18: How To Implement The Probe Compensation

    How to Implement the Probe Compensation When connect the probe with any input channel for the first time, make this adjustment to match the probe with the input channel. The probe which is not compensated or presents a compensation deviation will result in the measuring error or mistake.

  • Page 19: How To Use The Probe Safely

    MENU). (2) Press H3 button to display the Probe menu; select the proper value corresponding to the probe. This setting will be valid all the time before it is changed again. Note: The attenuation coefficient of the probe in the menu is preset to 10X when the oscilloscope is delivered from the factory.

  • Page 20: How To Implement Auto-Calibration

    Warning: In order to avoid suffering from the electric shock, please keep your finger behind the safety guard ring of the probe body during the operation. In order to protect you from suffering from the electric shock during your using the probe, do not touch the metal part of the probe tip when the probe is connected to the power supply.

  • Page 21: Introduction To The Horizontal System

    “VERTICAL POSITION” knob is rotated, the pointer of the earth datum point of the channel is directed to move up and down following the waveform. Measuring Skill If the channel is under the DC coupling mode, you can rapidly measure the DC component of the signal through the observation of the difference between the wave form and the signal ground.

  • Page 22: Introduction To The Trigger System

    “Horizontal Time Base” display in the status bar changes accordingly. The horizontal scanning speed steps from 5ns up to 100s in the sequence of 1-2-5 ADS2061 or ADS2061 2. Use the “HORIZONTAL POSITION” knob to adjust the horizontal position of the signal in the waveform window.
  • Page 23 Fig.4-14 Trigger Control Zone Press the “Trigger Menu” button and call out the trigger menu. With the operations of the menu selection buttons, the trigger setting can be changed. Use the “TRIG LEVEL” knob to change the trigger level setting. With the rotation of the “TRIG LEVEL”...

  • Page 24: Advanced User Guidebook

    5. Advanced User Guidebook Up till now, you have already been familiar with the initial operations of the functions of the function areas, buttons and knobs in the front panel of the SDS series oscilloscope. Based the introduction of the previous Chapter, the user should have an intimate knowledge of the determination of the change of the oscilloscope setting through observing the status bar.

  • Page 25: How To Set The Vertical System

    How to Set the Vertical System The VERTICAL CONTROLS includes three menu buttons such as CH1 MENU, CH2 MENU and Math, and four knobs such as VERTICAL POSITION, VOLTS/DIV (one group for each of the two channels). Setting of CH1 and CH2 Every channel has an independent vertical menu and each item is set respectively based on the channel.
  • Page 26 The description of the Channel Menu is shown as the following list: Function Menu Setting Description Unblock the AC and DC components in the input signal. Coupling Block the DC component in the input signal. GROUND The Input signal is interrupted. The waveform is displayed normally.
  • Page 27 2. Regulate the probe attenuation. In order to match the attenuation coefficient of the probe, it is required to adjust the attenuation ration coefficient of the probe through the operating menu of the Channel accordingly (see “How to Set the Probe Attenuation Coefficient” on P14).
  • Page 28 Taking the Channel 1 for example, the operation steps are shown as follows: (1) Press the CH1 MENU button and get access to the CH1 SETUP menu. (2) Press the H2 menu selection button and select ON for Inverted item. The waveform inverted function is initiated.

  • Page 29: Implementation Of Mathematical Manipulation Function

    Setting of Band Limit When high frequency components of a waveform are not important to its analysis, the bandwidth limit control can be used to reject frequencies above 20 MHz. Taking the Channel 1 for example, the operation steps are shown as below: (1) Press the CH1 MENU button to call out the CH1 SETUP menu.
  • Page 30 Select CH2 as FFT source. Rectangle Blackman Window Select window for FFT. Hanning Hamming Select dB for Format. Format Vrms Select Vrms for Format. Set multiple ×1. ×1 Set multiple ×2. ×2 Zoom Set multiple ×5. ×5 Set multiple ×10. ×10 Taking the additive operation between Channel 1 and Channels 2 for example, the operation steps are as follows:...

  • Page 31: Using Fft Function

    Using FFT function An FFT breaks down signals into component frequencies, which the oscilloscope uses to display a graph of the frequency domain of a signal, as opposed to the oscilloscope’s standard time domain graph. You can match these frequencies with known system frequencies, such as system clocks, oscillators, or power supplies.
  • Page 32 Use Hamming for measuring sine, periodic and narrow band random noise. This window works on transients or bursts where the signal levels before and after the event are significantly different. This is a very good window for measuring amplitude accuracy but less so for resolving frequencies.
  • Page 33 Fig.5-9 Hamming window Fig.5-10. Rectangle window User Manual of Smart Digital Storage Oscilloscope...
  • Page 34 Fig.5-11 Hamming window Quick Tips  If desired, use the zoom feature to magnify the FFT waveform.  Use the default dB scale to see a detailed view of multiple frequencies, even if they have very different amplitudes. Use the Vrms scale to see an overall view of how all frequencies compare to each other.

  • Page 35: Application Of Vertical Position And Volts/Div Knobs

    Application of VERTICAL POSITION and VOLTS/DIV Knobs 1. The VERTIVAL POSITION knob is used to adjust the vertical positions of the waveforms of all Channels (including those resulted from the mathematical operation). The analytic resolution of this control knob changes with the vertical division. 2.

  • Page 36: Main Time Base

    time base or the window. HORIZ MENU button: with this button pushed down, the screen shows the operating menu (see Fig. 5-13). Fig. 5-13 Time Base Mode Menu The description of the Horizontal Menu is as follows: Function Menu Description The setting of the horizontal main time base is Main (Main Time Base) used to display the waveform.

  • Page 37: Window Expansion

    area defined by two cursors. In this case, the HORIZONTAL POSITION and SEC/DIV knobs can be used to adjust the horizontal position and size of this window area. In FFT mode, Set menu is invalid. See Fig.5-15. Fig. 5-15 Window Setting Window Expansion Press the H3 menu selection button and choose Zoom.

  • Page 38: How To Set The Trigger System

    How to set the Trigger System Trigger is to determine when DSO starts to acquire data and waveform display. Once trigger to be set correctly then it will convert the unstable display to meaning waveform. When DSO start to acquire data it will acquire enough data to form waveform on left of trigger point.

  • Page 39: Video Trigger

    The Edge Trigger Menu is shown as Fig.5-17 Fig. 5-17 Edge trigger menu Edge menu list: MENU SETTINGS INSTRUCTION Single Mode Edge Set vertical channel trigger type as edge trigger. Select CH1 as trigger signal. Select CH2 as trigger signal. Source Select Ext-trigger as trigger signal EXT/5...

  • Page 40: Pulse Width Trigger

    Fig. 5-18 Video trigger menu Video menu list: MENU SETTING INSTRUCTION Single Mode Video Set vertical channel trigger type as video trigger. Select CH1 as the trigger source. Select CH2 as the trigger source. Source The external trigger input. EXT/5 Ext-trigger divided to 5 to extend trigger level range.

  • Page 41: Slope Trigger

    Polarity Choose the polarity when Select pulse width condition and adjust the M knob to set time. Auto Acquire waveform even no trigger occurred Normal Acquire waveform when trigger occurred Mode Single When trigger occurs, acquire one waveform then stop Holdoff 100ns~10s, adjust M knob to set time interval before Holdoff...

  • Page 42: Alternate Trigger

    Holdoff Single When trigger occurs, acquire one waveform then stop Holdoff 100ns~10s, turn the M knob to set time interval before another trigger occur. Reset Set Holdoff time as 100ns Alternate trigger Trigger signal comes from two vertical channels when alternate trigger is on. This mode is used to observe two unrelated signals.
  • Page 43 2. Alternate trigger (Trigger Mode: video) Alternate trigger (Trigger Type: video) Me Fig.5-22 nu is shown as Fig.5-22 Alternate trigger (Trigger Type: video) Menu Alternate trigger (Trigger Type: video) list: Menu MENU SETTING INSTRUCTION Alternate Video Set vertical channel trigger type as video trigger. Mode Select CH1 as the trigger source.
  • Page 44 frequency portion pass. Polarity Choose the polarity when Select pulse width condition and turn the M knob to set time. Auto Acquire waveform even no trigger occurred Mode Holdoff 100ns~10s, adjust M knob to set time interval before another trigger occur. Holdoff Reset Set Holdoff time as 100ns...
  • Page 45 selected as a trigger source whatever displayed or not.  Ext Trig: The instrument can trigger from a third source while acquiring data from CH1 and CH2. For example, you might want to trigger from an external clock or with a signal from another part of the test circuit. The Ext, Ext/ 5 trigger sources use the external trigger signal connected to the EXT TRIG connector.

  • Page 46: How To Operate The Function Menu

    How to Operate the Function Menu The function menu control zone includes 9 function menu buttons and 3 immediate-execution buttons: Measure, Acquire, Autoset, Utility, Cursor, Autoscale, Save, Display, Help, Run/Stop, Copy and Single. How to Implement Sampling Setup Press the Acquire button and the menu is displayed in the screen, shown as Fig.5-25.
  • Page 47 Function Menu Setting Description 1000 Length 100K Choose the record length Change the ACQU Mode settings and observe the consequent variation of the wave form displayed. Fig.5-26 Peak Detect mode, under which the burrs on the falling edge of the square wave, can be detected and the noise is heavy.

  • Page 48: How To Set The Display System

    Fig.5-27 Common ACQU Mode display, in which no burr can be detected. Fig.5-28 The displayed waveform after the noise is removed under the Average Mode, in which the average number of 16 is set. How to Set the Display System Push down the Display button and the menu displayed in the screen is shown as Fig.5-29.
  • Page 49 The description of the Display Set Menu is shown as follows: Function Menu Setting Description Dots Only the sampling points are displayed. Type Vect The space between the adjacent sampling points in the display is filled with the vector form. 1 second Time 2 seconds...
  • Page 50 Fig.5-31 Display in Dots form Persist When the Persist function is used, the persistence display effect of the picture tube oscilloscope can be simulated: the reserved original data is displayed in fade color and the new data is in bright color. Press the H2 button，the Persist menu will display at the right of screen.
  • Page 51 Fig.5-32 Infinite Persistence Display XY Format This format is only applicable to Channel 1 and Channel 2. After the XY display format is selected, Channel 1 is displayed in the horizontal axis and Channel 2 in the vertical axis; the oscilloscope is set in the un-triggered sample mode: the data are displayed as bright spots and the sampling rate is 1MS/s and cannot be changed.
  • Page 52 Press the H3 menu selection button to set XY Mode ON. The display format is changed to be XY mode (see Fig.5-33). Fig.5-33 XY Display Mode Cymometer It is a 6-digit cymometer. The cymometer can measure frequencies from 2Hz to the full bandwidth.

  • Page 53: How To Save And Recall A Waveform

    External The file will be named according to the current system time. The waveform file could be open by Aktakom waveform analysis software (on the supplied CD). When the type is Setting, the menu shows as following: User Manual of Smart Digital Storage Oscilloscope...
  • Page 54 Setting1 ….. Setting The setting address Setting8 Save the current oscilloscope setting to the Save internal storage Load Recall the setting from the selected address When the type is Image, the menu shows as following: Save the current display screen. You can also press Copy button to do it.

  • Page 55: How To Record/Playback Waveforms

    Fig.5-35 Wave Saving How to Record/Playback Waveforms Wave Record function can record the input current wave. You can set the interval between recorded frames in the range of 1ms~1000s.The max frame number reaches 1000,and you can get better analysis effect with playback and storage function. Wave Record contains four modes: OFF, Record, Playback and Storage.
  • Page 56 Fig.5-36 Wave Record Playback: Play back the wave recorded or saved. Playback menu shows as follows: Menu Setting Instruction Start frame Turn the M knob to select the number of start frame to playback (1～1000) End frame Turn the M knob to select the number of end frame Playback Mode to playback (1～1000) Frame Set...
  • Page 57 Fig.5-37 Wave Playback Storage: Save the current wave according to the start frame and end frame set. Storage menu shows as follows: Menu Setting Instruction Turn the M knob to select the number of start frame Start frame Storage to store (1～1000) Mode Turn the M knob to select the number of end frame to Frame Set...

  • Page 58: How To Implement The Auxiliary System Function Setting

    Fig.5-38 Wave Storage To use wave record function, do as follows: (1) Press Save button. (2) Press H1 button, turn the M knob to choose Record. (3) Press H2 button. In the Mode menu, press F2 button to choose Record. (4) Press H3 button.
  • Page 59 Function Menu Setting Description Chinese Choose the display language of the operating language English system. Others Display On/Off the date display Hour Min Setting Hour/Minute Set Time Day Month Setting Date/Month Year Setting Year Lock all keys. Unlock method: press 50% KeyLock button in trigger control area, then press Force button, repeat 3 times.
  • Page 60 Function Menu Setting Description Self Cal Carry out the self-calibration procedure. Default Call out the factory settings. Do Self Cal (Self-Calibration) The self-calibration procedure can improve the accuracy of the oscilloscope under the ambient temperature to the greatest extent. If the change of the ambient temperature is up to or exceeds 5℃, the self-calibration procedure should be executed to obtain the highest level of accuracy.
  • Page 61 The description of Pass/Fail Menu is shown as the follows: Function Menu Setting Description Enable Control enable switch operate Operate Control operate switch Pass Signal tested corresponds with the rule Fail Signal tested not correspond with the rule Output Beep Beep when it satisfies the rule Stop Stop once satisfying the rule...

  • Page 62: How To Measure Automatically

    Fig.5-44 Pass/Fail test Note: 1. When Pass/Fail is ON, if XY or FFT is ready to run, then Pass/Fail will be closed; under the mode of XY or FFT, Pass/Fail is unable. 2. Under the mode of Factory, Auto Scale and Auto Set, Pass/Fail will be closed. 3.
  • Page 63 Measurements. The oscilloscopes provide 20 parameters for auto measurement, including Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B , DelayA→B ,+Width, -Width, +Duty, -Duty. That’s 10 voltage and 10 time measurements in all. The menu is displayed as Fig.5-46.

  • Page 64: The Automatic Measurement Of Voltage Parameters

    Measure the frequency, the peak-to-peak voltage of the Channel CH1 and the mean, the RMS of the Channel CH2, following below steps: 1. Press the Measure button to show the automatic measurement function menu. 2. Press the H1 button to display the Add menu. 3.

  • Page 65: The Automatic Measurement Of Time Parameters

    The SDS series oscilloscopes provide automatic voltage measurements including Vpp, Vmax, Vmin, Vavg, Vamp, Vrms, Vtop, Vbase, Overshoot and Preshoot. Fig.5-45 below shows a pulse with some of the voltage measurement points. Fig.5-48 Vpp: Peak-to-Peak Voltage. Vmax: The maximum amplitude. The most positive peak voltage measured over the entire waveform.

  • Page 66: How To Measure With Cursors

    Fig.5-49 Rise Time: Time that the leading edge of the first pulse in the waveform takes to rise from 10% to 90% of its amplitude. Fall Time: Time that the falling edge of the first pulse in the waveform takes to fall from 90% to 10% of its amplitude.
  • Page 67 Function Setting Description Menu Switch off the cursor measurement. Type Voltage Display the voltage measurement cursor and menu. Time Display the time measurement cursor and menu. Display the channel generating the waveform to Source which the cursor measurement will be applied. When carrying out the cursor measurement, the position of Cursor 1 can be adjusted with the VERTICAL POSITION knob of Channel 1, and that of Cursor 2 can be adjusted with the VERTICAL POSITION knob of Channel 2.
  • Page 68 Carry out the following operation steps for the time cursor measurement of the channel CH1: Press Cursor and recall the Cursor Measure menu. 2. Press the H2 button and choose CH1 for Source. 3. Press the H1 button, the Type menu will display at the right of the screen. Press the F3 button to select Time for Type, with two purple dotted lines displayed along the vertical direction of the screen, which indicating Cursor 1 and Cursor 2.
  • Page 69 Fig.5-53 CURS MEAS Menu The description of the cursor measurement menu is shown as the following table: Function Setting Description Menu Switch off the cursor measurement. Type Vamp Display the Vamp measurement cursor and menu. Freq Display the Freq measurement cursor and menu. Source Math FFT Display the channel for the cursor measure.
  • Page 70 Fig.5-54 wave of Vamp cursor measurement Carry out the following operation steps for the Freq cursor measurement: 1. Press Cursor and recall the Cursor Measure menu. 2. Press the H1 button, the Type menu will display at the right of the screen. Press the F3 button to select Freq for Type, with two purple dotted lines displayed along the vertical direction of the screen indicating the corresponding Cursor 1 and Cursor 2...

  • Page 71: How To Use Autoscale

    Fig.5-55 wave of Freq cursor measurement How to use Autoscale The function is applied to follow-up signals automatically even if the signals change at any time. Autoscale enables the instrument to set up trigger mode, voltage division and time scale automatically according to the type, amplitude and frequency of the signals.
  • Page 72 Follow-up and adjust the vertical and horizontal settings. Follow-up and adjust horizontal scale without changing Mode vertical setting. Follow-up and adjust vertical scale without changing horizontal setting. Show Multi-period waveforms. Wave Only show one or two periods. If you want to measure the two-channel signal, you can do as the follows: 1.

  • Page 73: How To Use Executive Buttons

    3. At the mode of XY and STOP status, pressing Autoset to enter into Autoscale, DSO switches to YT mode and AUTO status. 4. At the mode of Autoscale, DSO is always in the state of DC coupling and AUTO triggering.
  • Page 74 base of the waveform can be adjusted within a certain range, in other words, the signal can be expanded in the horizontal or vertical direction. When the horizontal time base equal to or is less than 50ms, the horizontal time base can be expanded for 4 divisions downwards. Press this button you can set the trigger mode as single directly，so when Single: trigger occurs, acquire one waveform then stop.

  • Page 75: Demonstration

    6. Demonstration Example 1: Measurement of Simple Signals Observe an unknown signal in the circuit, and display and measure rapidly the frequency and peak-to-peak voltage of the signal. Carry out the following operation steps for the rapid display of this signal: (1) Set the probe menu attenuation coefficient as 10X and that of the switch in the probe switch as 10X (see “How to Set the Probe Attenuation Coefficient”...

  • Page 76: Example 2: Gain Of The Amplifier In The Metering Circuit

    (12) Press the F4 button, the peak-to-peak voltage measurement will be added, finish settings of channel 2. Then, the period, frequency, mean and peak-to-peak voltage will be displayed at the bottom left of the screen and change periodically (see Fig.6-1). Fig.6-1 Waveform of Automation Measurement Example 2: Gain of the Amplifier in the Metering Circuit...

  • Page 77: Example 3: Capture The Single Signal

    (7) Press the F1 button again and turn the M knob to choose PK-PK.. (8) Read the peak-to-peak voltages of Channel 1 and Channel 2 from the bottom left of the screen (See Fig.6-2). (9) Calculate the amplifier gain with the following formulas. Gain = Output Signal / Input signal Gain (db) = 20×log (gain) Fig.6-2 Waveform of Gain Measurement...
  • Page 78 (3) Press the Acquire button to display the Acquire menu. (4) Press the H1 button to display the Acquire Mode menu. (5) Press the F2 button to choose Peak detect. (6) Press the Trigger Menu button to display the Trigger menu. (7) Press the H1 button to display the Trigger Type menu.

  • Page 79: Example 4: Analyze The Details Of A Signal

    Fig.6-3 Capture the Single Signal Example 4: Analyze the Details of a Signal Observe the Signal Containing Noises If the signal is interfered by the noise, the noise may cause a failure in the circuit. For the analyzing of the noise in detail, please operate the instrument according to the following steps: (1) Press the Acquire button to display the Acquire menu.
  • Page 80 Fig.6-4 Waveform of the Signal Containing Noises Separate Noises from the Signal When analyze the waveform of a signal, you should remove the noise in it. For the reduction of the random noise in the oscilloscope display, please operate the instrument according to the following steps: (1) Press the Acquire button to display the Acquire menu.

  • Page 81: Example 5: Application Of X-Y Function

    Fig.6-5 Waveform of the Noise-Removed Signal Example 5: Application of X-Y Function Examine the Phase Difference between Signals of two Channels Example: Test the phase change of the signal after it passes through a circuit network. Connect the oscilloscope with the circuit and monitor the input and output signals of the circuit.

  • Page 82: Example 6: Video Signal Trigger

    waveform. (8) With the elliptical oscillogram method adopted, observe and calculate the phase difference (see Fig.6-6). The signal must be centered and kept in the horizontal direction. Fig.6-6 Lissajous Graph Based on the expression sin q =A/B or C/D, there into, q is the phase difference angle, and the definitions of A, B, C, and D are shown as the graph above.
  • Page 83 (2) Press the H1 button to display the trigger type menu. (3) Press the F1 button to choose Single for Type. (4) Turn the M knob to choose Video as the mode. (5) Press the H2 button to display the Source menu. (6) Press the F1 button to choose CH1 for Source.

  • Page 84: F.a.q

     Restart the instrument after completing the checks above.  If this product still cannot work normally, please get in touch with AKTAKOM and we will be under your service. 2. After acquiring the signal, carry out the following operations if the waveform of the signal is not displayed in the screen.
  • Page 85 6. After the Average value sampling is set in the Acqu Mode (see “How to Implement Sampling Setup” on P42 ), or the longer duration is set in the Persist in Display (see “Persist” on P46), the display rate is slowed down. It is a normal phenomenon.

  • Page 86: Technical Specifications

    “Auto-calibration” procedure (see “How to Implement Auto-calibration” on P16). All specification standards can be fulfilled, except one(s) marked with the word “Typical”. Performance Characteristics Instruction Bandwidth ADS2061 60MHz Channel 2 + 1 (External) Mode Normal, Peak detect, Averaging Sample rate...
  • Page 87 Performance Characteristics Instruction Interpolation （sin x）/x Record length 10M points on each channel Scanning speed 5ns/div～100s/div, ADS2061 step by 1～2～5 （S/div） Sampling rate / ±100ppm relay time accuracy Single： Interval（△T） ±(1 interval time+100ppm×reading+0.6ns); accuracy Average>16： （DC～100MHz） ±(1 interval time +100ppm×reading+0.4ns)
  • Page 88 Performance Characteristics Instruction Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Automatic Period, Rise Time, Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty Waveform Math ＋, －, *, / ,FFT Waveform storage 15 waveforms Bandw Full bandwidth idth Lissajous...
  • Page 89 Performance Characteristics Instruction Positive pulse：＞、＜、＝ Trigger condition negative pulse：＞、＜、＝ Pulse trigger Pulse Width range 24ns～10s Support standard NTSC、PAL and Modulation SECAM broadcast systems Video Trigger Line number range 1-525 (NTSC) and 1-625 (PAL/SECAM) Positive pulse：＞、＜、＝ Trigger condition negative pulse：＞、＜、＝ Slope Trigger Time setting 24ns～10s Trigger on CH1...

  • Page 90: General Technical Specifications

    General Technical Specifications Display Display Type 8” Colored LCD (Liquid Crystal Display) Display Resolution 800 (Horizontal) × 600 (Vertical) Pixels Display Colors 65536 colors, TFT screen Output of the Probe Compensator Output Voltage About 5V, with the Peak-to-Peak equal to or greater voltage (Typical ) than 1MΩ...

  • Page 91: Appendix

    9. Appendix Appendix A: Enclosure Standard Accessories: 2 Passive probe: 1.2 m, 1:1 (10:1)  CD: x 1 (PC link application software)  Power cord: 1pcs, up to the standards of the country in which it is used.  USB cable ...

  • Page 92: Appendix C: Battery Using Guide

    Appendix C: Battery Using Guide Battery electric quantity indicating symbols 、 、 and include: power indication Fig.9-1 Battery Charging the oscilloscope Connect the power cord to a power source. Turn on the Power Switch Button ― ○ on the left side (make sure the “―” side is pressed down). Yellow light of the indicator on the front panel means the battery is being charged.
