Motion Control Engineering 2000 Manual page 242

Troubleshooting

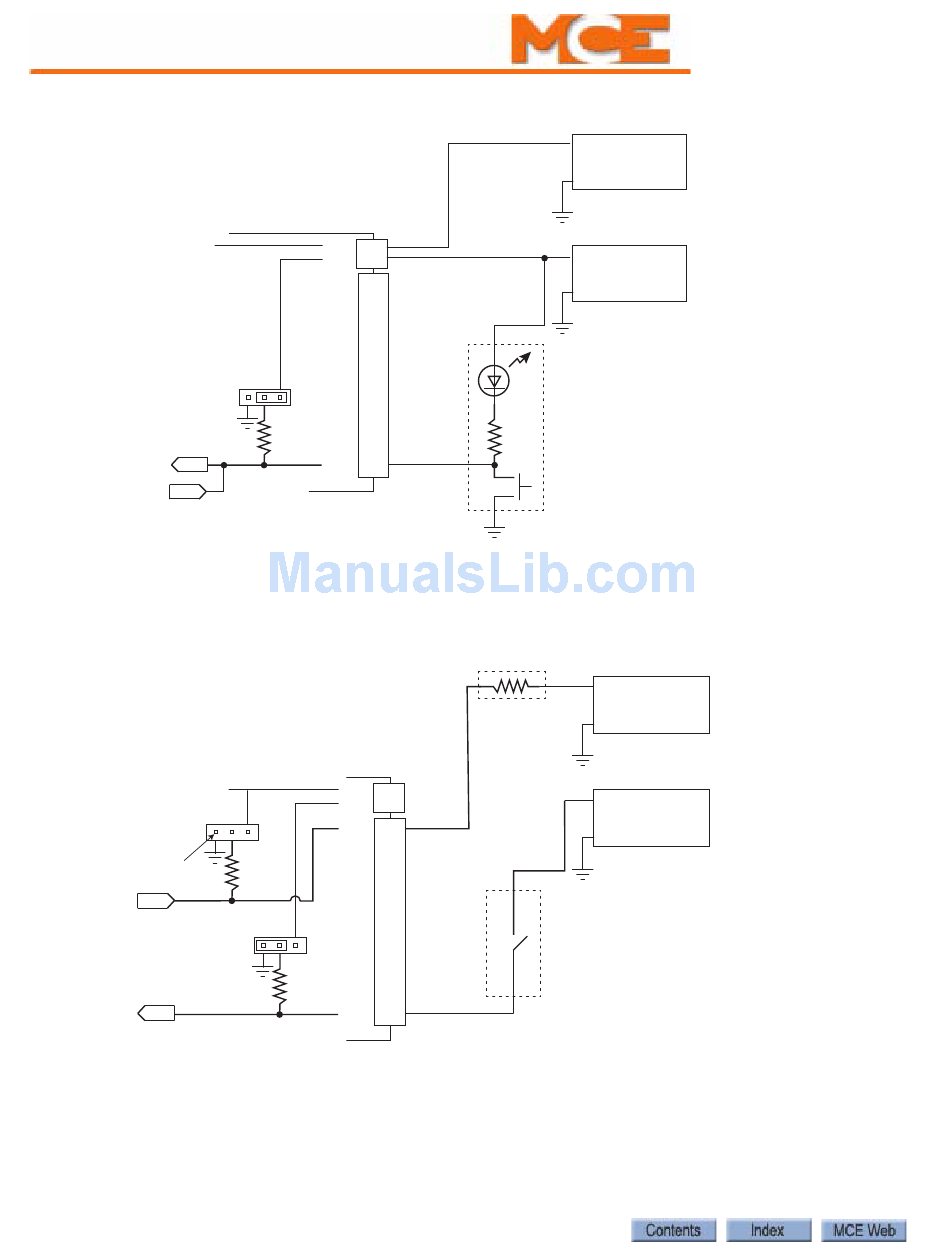

Figure 6.7 Typical Input and Output Connection (Board ID 0 to 15)
JP10 - JP17
I/O 9 - I/O 16
JP2 - JP9
I/O 1 - I/O 8
IN
Figure 6.8 Typical Input or Output Connection (Board ID 32 to 36)
JP10 - JP17
I/O 9 - I/O 16
JP17
IN
No jumper
IN
JP2 - JP9
I/O 1 - I/O 8
6-54 Manual # 42-02-1P21
PS1 and PS2 are used
to provide input pull-up
ONLY when I/O Jumpers
are set to I/O
PS2
PS1
IO 16
IO 15
IO 14
IO 13
IO 12
IO 11
IO 10
IO 9
JP2
IO 8
IO 7
I/O
IO 6
IO 5
IO 4
IO 3
IO 2
IO 1
PS2
PS1
IO 16
I/O
IO 15
IO 14
IO 13
IO 12
IO 11
IO 10
IO 9
JP2
IO 8
IO 7
I/O
IO 6
IO 5
IO 4
IO 3
IO 2
Input
IO 1
+ Power Supply
+Vc
-
+
Power Supply
+Vn
-
+Vn
Typical Fixture
Connection
< 500 mA continuous current
Load
Output
+Vn
Typical switch
or other wired
input
When using a board con-
nection in IO mode, con-
nect the associated PS
input to the same voltage
used to power the fix-
ture.
PS1 and PS2 can be con-
nected to separate volt-
ages, depending on the
job requirements.
+ Power Supply
+Vc
AC or DC
-
+ Power Supply
+Vn
AC or DC
-
