F5: Controller Utilities/Monitoring and Reporting

Place the F5 switch in the Up position (all others down). This
option provides access to the Controller Utilities Menu and the
Monitoring and Reporting Menu.

Controller Utilities Menu

Use this menu to register front and/or rear car calls, set the controller's date and time, view and
clear the event log, and view system CAN bus and CTL diagnostic data. If Controller Utilities
Menu is not displayed, press N push button. Please refer to Figure 5.3.

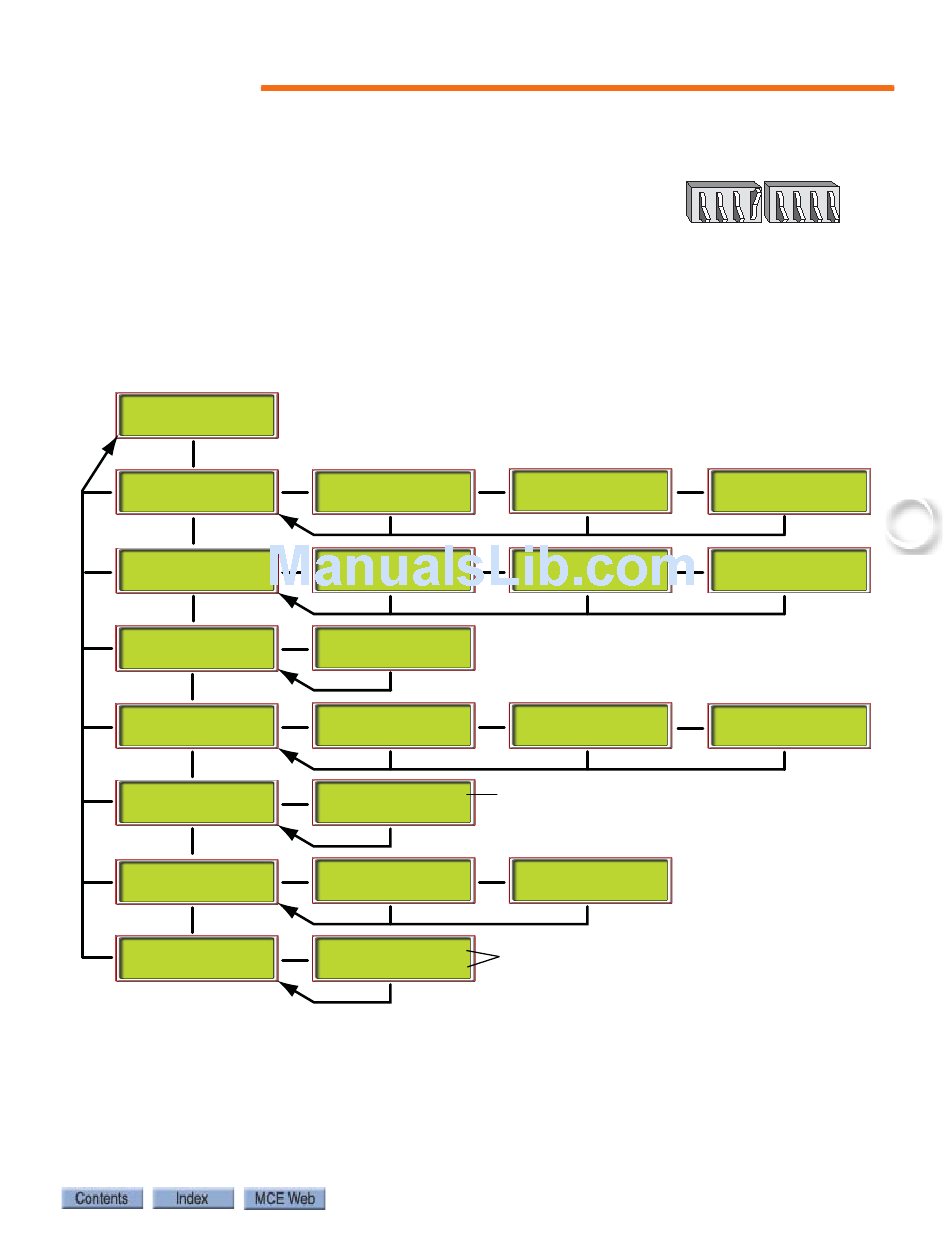

Figure 5.3 Controller Utilities Menu
* CONTROLLER
*UTILITIES MENU*
S
+
- FRONT CALL
- REGISTRATION -
and
N
N
- REAR CALL
+
- REGISTRATION -
and
N
N
+ - VIEW
- DATE AND TIME-
and
N
N
- ADJUST
+
- DATE AND TIME-
and
N
N
+ - VIEW
- EVENT LOG
and
N
N
- CLEAR
+
- EVENT LOG
and
N
N
-SYSTEM CAN BUS-
+
- DATA VIEWING -
and
N

Registering Front or Rear Car Calls

1. Press S push button. Front Call Registration is displayed. Press S to select or press N
until Rear Call Registration is displayed and press S to select. Refer to Figure 5.3.
2. Press +/- push buttons to increment or decrement floor numbers.
3. Press and momentarily hold S push button to register calls: displays [ON] while held.
4. Press + and N push buttons together to back out of the current display.
F5: Controller Utilities/Monitoring and Reporting
*
S
- FRONT CAR CALL
LANDING 01 [OFF]
+ and N
REAR CAR CALL
- S
LANDING 01 [OFF]
+ and N
- TIME: 02:35:10
S
DATE: 02-08-2010
+ and N
- S TIME: 02:35:10
DATE: 02-08-2010
+ and N
-
#01 DOL INPUT FA
S
- C01 05/25/2010
+ and N
- S CLEAR ALL EVENTS
[S]-YES [N]-NO
-
+ and N
S CID| 00 00 00 00
1C1| 0A 01 00 01
+ and N
+/-
FRONT CAR CALL
LANDING 02 [OFF]
+ and N
REAR CAR CALL
+/-
LANDING 02 [OFF]
+ and N
+/- TIME: 02:40:00
DATE: 02-08-2010
S
+ and N
Scrolling message
EVENT LOG
CLEARED
+ and N
CAN data bytes in hex
FUNCTION SWITCHES
F8 F7 F6 F5 F4 F3 F2 F1
Controller Utilities Menu
S*
FRONT CAR CALL
LANDING 02 [ON]
+/-
+ and N
S* REAR CAR CALL
LANDING 02 [ON]
+/-
+ and N
N SAVE DATE/TIME?
[S]-YES [N]-NO
+ and N
