Identification

6
2 Identification
2.1

Device designation

The flow measuring system consists of the following components:
• Promag 53 transmitter
• Promag E/H/L/P/W sensors
Two versions are available:
• Compact version: transmitter and sensor form a single mechanical unit
• Remote version: transmitter and sensor are installed separately
2.1.1 Nameplate of the transmitter
PROMAG 53
53W1H-XXXXXXXXXXXX
Order Code:
1
12345678901
Ser.No.:
ABCDEFGHJKLMNPQRST
TAG No.:
20-260VAC 20-64VDC /
2
50-60Hz
EPD/MSU
3
FOUNDATION Fieldbus ITK 5.01
4
DEVICE ID 452B481042-21000191000
5
i
N12895

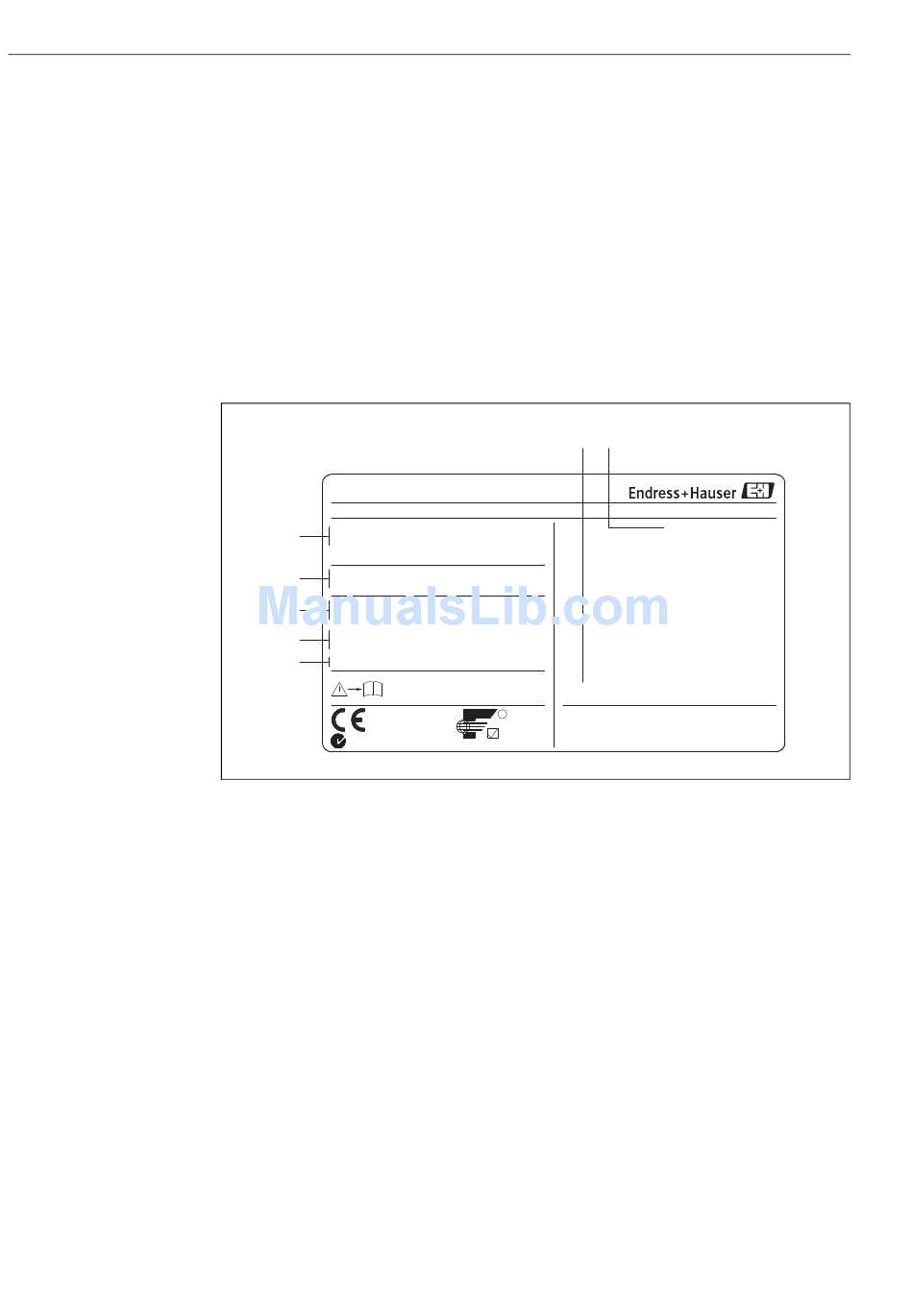

Fig. 1: Nameplate specifications for the "Promag 53" transmitter (example)
1 Order code/serial number: See the specifications on the order confirmation for the meanings of the individual letters and digits
2 Power supply/frequency
Power consumption
3 Additional functions and software
– EPD: with empty pipe detection electrode
– ECC: with electrode cleaning
4 FOUNDATION Fieldbus: equipped with FOUNDATION Fieldbus H1 interface
ITK 5.01: certified by the Fieldbus Foundation; Interoperability Test Kit, revision 5.01
DEVICE ID: FOUNDATION Fieldbus device identification
5 Reserved for additional information on special products
6 Permitted ambient temperature range
7 Degree of protection
Proline Promag 53 FOUNDATION Fieldbus
6
7
45VA/19W
-20°C (-4°F) <Tamb<+60°C (+140°F)
R
F
OUNDATION
IP67 / NEMA/Type 4X
a0005475
