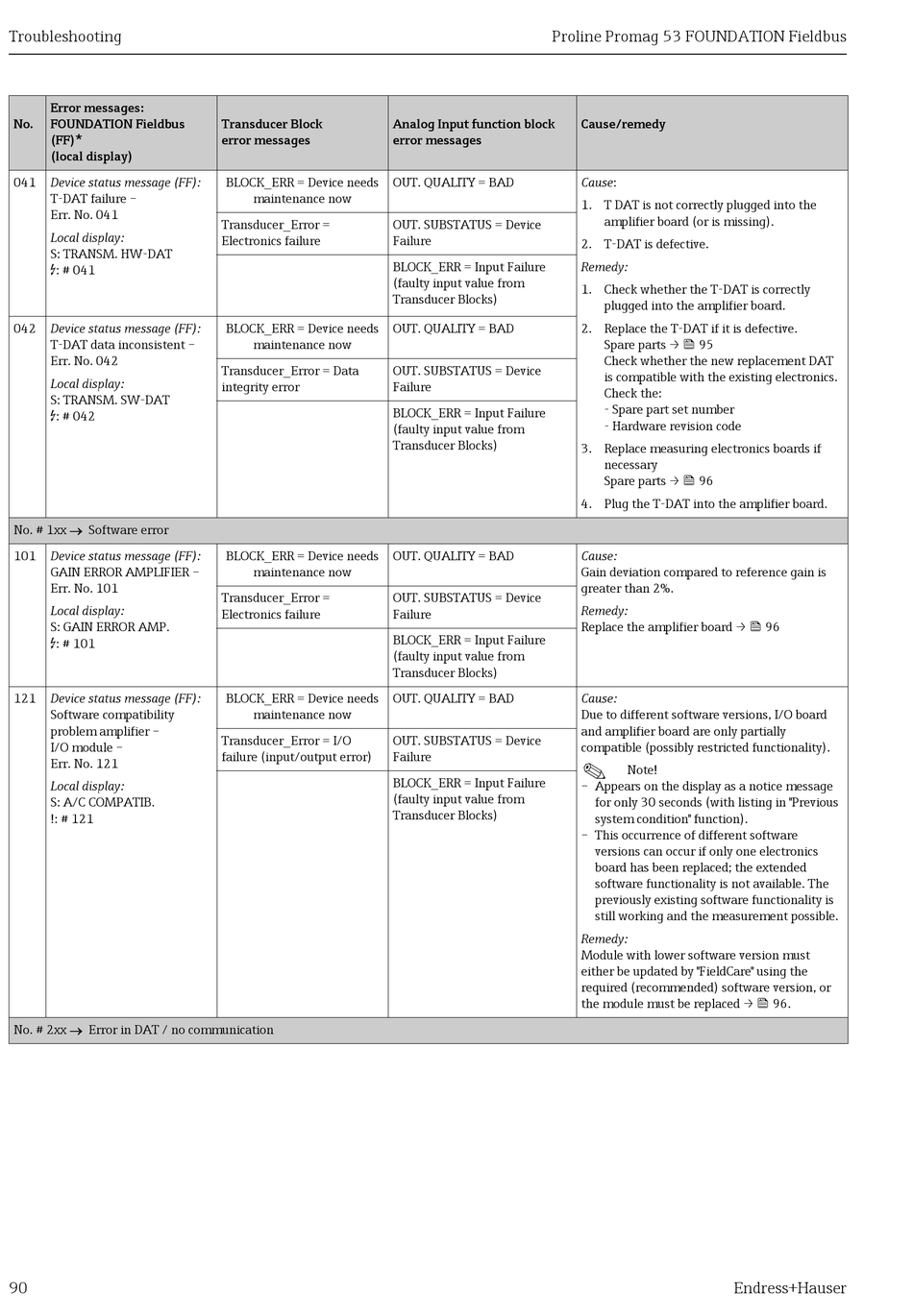

Troubleshooting
Error messages:
No. FOUNDATION Fieldbus
(FF)*
(local display)
041 Device status message (FF):
T-DAT failure –
Err. No. 041
Local display:
S: TRANSM. HW-DAT
$
: # 041
042 Device status message (FF):
T-DAT data inconsistent –
Err. No. 042
Local display:
S: TRANSM. SW-DAT
$
: # 042
No. # 1xx  Software error
101 Device status message (FF):
GAIN ERROR AMPLIFIER –
Err. No. 101
Local display:
S: GAIN ERROR AMP.
$
: # 101
121 Device status message (FF):
Software compatibility
problem amplifier –
I/O module –
Err. No. 121
Local display:
S: A/C COMPATIB.
!: # 121
No. # 2xx  Error in DAT / no communication
90
Transducer Block
error messages
BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Electronics failure
BLOCK_ERR = Device needs
maintenance now
Transducer_Error = Data
integrity error
BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Electronics failure
BLOCK_ERR = Device needs
maintenance now
Transducer_Error = I/O
failure (input/output error)
Proline Promag 53 FOUNDATION Fieldbus
Analog Input function block
error messages
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
Cause/remedy
Cause:
1. T DAT is not correctly plugged into the
amplifier board (or is missing).
2. T-DAT is defective.
Remedy:
1. Check whether the T-DAT is correctly
plugged into the amplifier board.
2. Replace the T-DAT if it is defective.
Spare parts →  95
Check whether the new replacement DAT
is compatible with the existing electronics.
Check the:
- Spare part set number
- Hardware revision code
3. Replace measuring electronics boards if
necessary
Spare parts →  96
4. Plug the T-DAT into the amplifier board.
Cause:
Gain deviation compared to reference gain is
greater than 2%.
Remedy:
Replace the amplifier board →  96
Cause:
Due to different software versions, I/O board
and amplifier board are only partially
compatible (possibly restricted functionality).
!
Note!
– Appears on the display as a notice message
for only 30 seconds (with listing in "Previous
system condition" function).
– This occurrence of different software
versions can occur if only one electronics
board has been replaced; the extended
software functionality is not available. The
previously existing software functionality is
still working and the measurement possible.
Remedy:
Module with lower software version must
either be updated by "FieldCare" using the
required (recommended) software version, or
the module must be replaced →  96.
