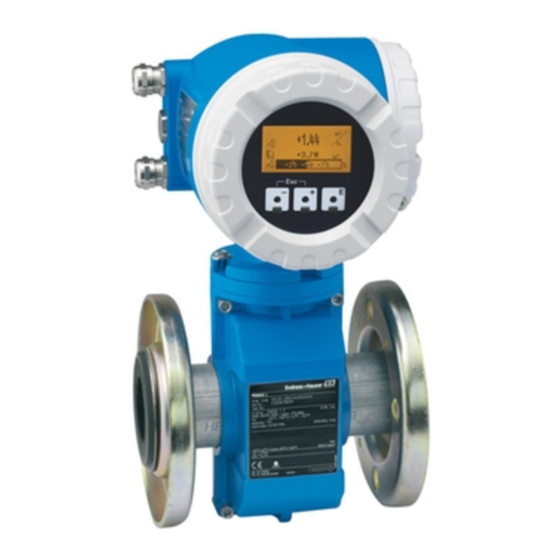

Endress+Hauser Proline Promag 53 Operating Manual

Electromagnetic flowmeter
Hide thumbs Also See for Proline Promag 53:
Table of Contents

Advertisement

Quick Links

BA00053D/06/EN/14.15
71280319
Valid as of version:
PB DP: V 3.04.XX (Device software)
PB PA: V 3.04.XX (Device software)
Products
Operating Manual
Proline Promag 53
Electromagnetic flowmeter
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag 53

Summary of Contents for Endress+Hauser Proline Promag 53

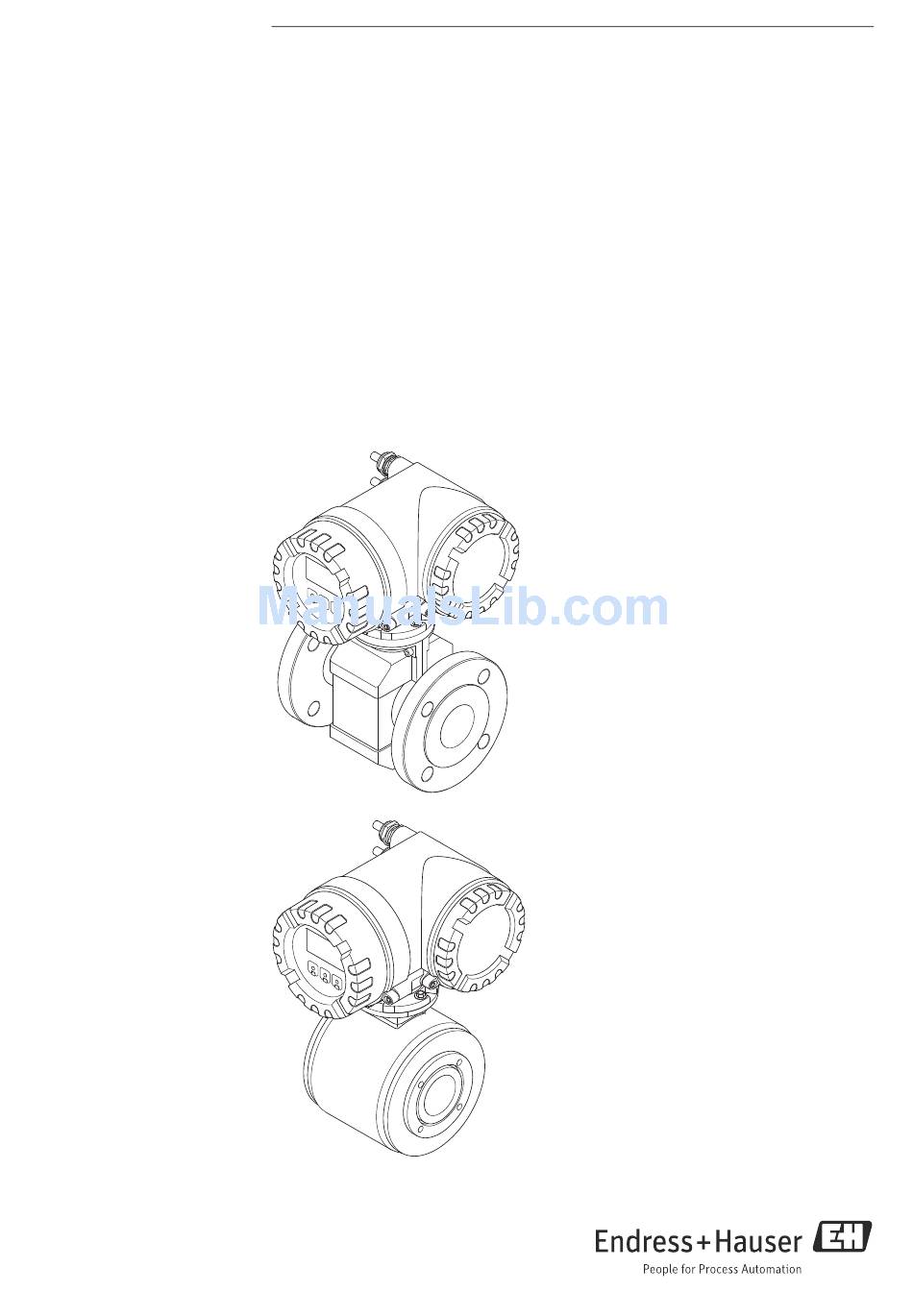

  • Page 1 Products Solutions Services BA00053D/06/EN/14.15 71280319 Valid as of version: PB DP: V 3.04.XX (Device software) PB PA: V 3.04.XX (Device software) Operating Manual Proline Promag 53 PROFIBUS DP/PA Electromagnetic flowmeter...

  • Page 3: Table Of Contents

    Exterior cleaning ......127 Seals ........127 Endress+Hauser...

  • Page 4: Safety Instructions

    • The device must be operated by persons authorized and trained by the facility' s owner- operator. Strict compliance with the instructions in the Operating Manual is mandatory. • Endress+Hauser is willing to assist in clarifying the chemical resistance properties of parts wetted by special fluids, including fluids used for cleaning. However, small changes in temperature, concentration or the degree of contamination in the process can result in changes of the chemical resistance properties.

  • Page 5: Returns

    If the temperature of the fluid is high, implement sufficient measures to prevent burning or scalding. • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to this Operating Manual. Returns The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered.

  • Page 6: Identification

    Power supply/frequency/power consumption Additional functions and software Available inputs and outputs Reserved for information on special products Please refer to operating instructions / documentation Reserved for certificates, approvals and for additional information on device version Ambient temperature range Degree of protection Endress+Hauser...
  • Page 7 Please refer to operating instructions / documentation Reserved for additional information on device version (approvals, certificates) Calibration tolerance Additional information – EPD: with empty pipe detection electrode – R/B: with reference electrode (only for Promag P) Degree of protection Flow direction Endress+Hauser...
  • Page 8 Pending signals at the inputs and outputs possible configurations and terminal assignment Version of device software currently installed (inclusive language group) Installed communication type PROFIBUS ID No. Date of installation Current updates to data specified in points 6 to 9 Endress+Hauser...

  • Page 9: Certificates And Approvals

    IEC/EN 61326. The measuring system described in this Operating Manual is therefore in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system is in conformity with the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 10: Installation

    At all times, therefore, make sure that the device does not unexpectedly turn around its axis or slip. a0004294  Fig. 4: Transporting sensors with DN 300 (12") Endress+Hauser...
  • Page 11 • Do not remove the protection plates or caps on the process connections until you are ready to install the device. This is particularly important in the case of sensors with PTFE linings. Endress+Hauser...

  • Page 12: Installation Conditions

    →  165. It might be necessary to install pulse dampers in systems incorporating reciprocating, diaphragm or peristaltic pumps. Information on the measuring system' s resistance to vibration and shock →  161. A0011900 Fig. 7: Installing pumps Endress+Hauser...
  • Page 13 Information on the lining' s resistance to partial vacuum →  165 A0011902 Fig. 9: Measures for installation in a down pipe Vent valve Siphon  Length of down pipe (h 5 m (16,3 ft)) Endress+Hauser...
  • Page 14 (not available for "measuring electrode only" option, not in Promag H, DN 2 to 15 (1/12 to ½")) Measuring electrodes for signal detection Reference electrode for potential equalization (not available for "measuring electrode only" option, not in Promag H) Endress+Hauser...
  • Page 15 It is advisable to install sensor and transmitter separately if vibration is excessively severe. Information on the permitted resistance to vibration and shock →  161. A0011906 Fig. 13: Measures to prevent vibration of the measuring device (L > 10 m / 33 ft) Endress+Hauser...
  • Page 16 From the nomogram, read off the pressure loss as a function of fluid velocity (downstream from the reduction) and the d/D ratio. [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0011907 Fig. 15: Pressure loss due to adapters Endress+Hauser...
  • Page 17 850 to 28000 1200 – – 1250 to 40000 1250 to 40000 1400 – – – 1700 to 55000 1600 – – – 2200 to 70000 1800 – – – 2800 to 90000 2000 – – – 3400 to 110000 Endress+Hauser...
  • Page 18 Min./max. full scale value (v ≈ 0.3 or 10 m/s) in [Mgal/d] 54" – – – 9 to 300 60" – – – 12 to 380 66" – – – 14 to 500 72" – – – 16 to 570 78" – – – 18 to 650 Endress+Hauser...
  • Page 19 (EPD →  125) is switched on. [µS/cm] [ft] a0010734 Fig. 16: Permitted lengths for connecting cable in remote version, as a function of the conductivity of the fluid Gray shaded area = permissible range Lmax = length of connecting cable Endress+Hauser...
  • Page 20 • Always tighten the screws uniformly and in diagonally opposite sequence. • Overtightening the screws will deform the sealing faces or damage the seals. • The tightening torques listed below apply only to pipes not subjected to tensile stress. Endress+Hauser...
  • Page 21 20 × M 24 PN 16 20 × M 30 PN 6 20 × M 24 PN 10 20 × M 27 600 * PN 16 20 × M 33 * Designed acc. to EN 1092-1 (not to DIN 2501) Endress+Hauser...
  • Page 22 4 × M 16 4 × M 16 4 × M 16 8 × M 16 8 × M 16 8 × M 20 8 × M 20 12 × M 20 12 × M 22 16 × M 22 Endress+Hauser...
  • Page 23 Particularly when using process connections made of plastic, it is essential that the sensor be mounted securely. A wall mounting kit for this purpose can be ordered separately as an accessory from Endress+Hauser (→  128). a0004301 Fig.
  • Page 24 • Ground rings can be ordered separately from Endress+Hauser as accessories →  128. When placing the order, make certain that the ground ring is compatible with the material used for the electrodes.
  • Page 25 Cleaning using pigs When cleaning using pigs, please note the internal diameters of the measuring tube and the process connection. All the dimensions and lengths of the sensor and transmitter are provided in the separate documentation "Technical Information" →  184. Endress+Hauser...
  • Page 26 • If necessary, special ground cables for potential equalization can be ordered as an accessory (→  128). • Information on potential equalization and detailed mounting instructions for the use of ground cables can be found on →  62. Endress+Hauser...
  • Page 27 28 × M 30 1000 PN 6 28 × M 27 1000 PN 10 28 × M 33 1200 PN 6 32 × M 30 1200 PN 10 32 × M 36 * Designed acc. to EN 1092-1 (not to DIN 2501) Endress+Hauser...
  • Page 28 16 × M 30 Table E 20 × M 30 Table E 20 × M 30 Table E 20 × M 30 Table E 24 × M 30 1000 Table E 24 × M 30 1200 Table E 32 × M 30 Endress+Hauser...
  • Page 29 16 × M 27 PN 16 20 × M 27 PN 16 20 × M 30 PN 16 20 × M 33 PN 16 24 × M 33 1000 PN 16 24 × M 33 1200 PN 16 32 × M 33 Endress+Hauser...
  • Page 30 Ground cable • If necessary, special ground cables can be ordered as accessories for potential equalization, →  128. • For information on potential equalization and detailed installation instructions for using ground cables, please refer to →  62. Endress+Hauser...
  • Page 31 • The tightening torques listed below apply only to pipes not subjected to tensile stress. Tightening torques for: • EN (DIN) →  32 • ASME →  33 • JIS →  33 • AS 2129 →  34 • AS 4087 →  34 Endress+Hauser...
  • Page 32 PN 25 20 × M 33 – PN 10 20 × M 27 – 600 * PN 16 20 × M 33 – PN 25 20 × M 36 – * Designed acc. to EN 1092-1 (not to DIN 2501) Endress+Hauser...
  • Page 33 4 × M 16 8 × M 16 4 × M 16 8 × M 16 8 × M 16 8 × M 20 8 × M 16 8 × M 20 8 × M 20 8 × M 22 Endress+Hauser...
  • Page 34 PTFE Table E 4 × M 12 Table E 4 × M 16 Promag P tightening torques for AS 4087 Nominal diameter AS 4087 Screws Max. tightening torque [Nm] [mm] Pressure rating PTFE PN 16 4 × M 16 Endress+Hauser...
  • Page 35 • The tightening torques listed below apply only to pipes not subjected to tensile stress. Tightening torques for: • EN (DIN) →  36 • JIS →  38 • ASME →  38 • AWWA →  39 • AS 2129 →  39 • AS 4087 →  40 Endress+Hauser...
  • Page 36 24 × M 39 PN 6 24 × M 27 PN 10 24 × M 30 PN 16 24 × M 36 PN 25 24 × M 45 PN 6 24 × M 27 PN 10 28 × M 30 Endress+Hauser...
  • Page 37 44 × M 52 1108 1003 2000 PN 6 48 × M 39 2000 PN 10 48 × M 45 1047 1092 2000 PN 16 48 × M 56 1324 1261 * Designed acc. to EN 1092-1 (not to DIN 2501) Endress+Hauser...
  • Page 38 8 × ¾" 6" Class 150 8 × ¾" 6" Class 300 12 × ¾" 8" Class 150 8 × ¾" 10" Class 150 12 × 7/8" 12" Class 150 12 × 7/8" 14" Class 150 12 × 1" Endress+Hauser...
  • Page 39 16 × M 30 Table E 20 × M 30 Table E 20 × M 30 Table E 20 × M 30 Table E 24 × M 30 1000 Table E 24 × M 30 1200 Table E 32 × M 30 Endress+Hauser...
  • Page 40 20 × M 30 PN 16 20 × M 33 PN 16 24 × M 33 1000 PN 16 24 × M 33 1200 PN 16 32 × M 33 * Designed acc. to AS 2129 (not to AS 4087) Endress+Hauser...
  • Page 41 Turn the transmitter housing to the desired position (max. 2 × 90° in either direction). Lower the housing into position once more. Retighten the two securing screws. £ £ 180° 180° a0004303 Fig. 25: Turning the transmitter housing (stainless steel field housing) Endress+Hauser...
  • Page 42 Turn the display to the desired position (max. 4 × 45° in both directions) and position it back on the electronics compartment cover. Screw the cover of the electronics compartment firmly onto the transmitter housing. 4 x 45° a0003236 Fig. 26: Turning the local display (field housing) Endress+Hauser...
  • Page 43 – Screw head: max. Ø 10.5 mm (0.4") Secure the transmitter housing to the wall as indicated. Screw the cover of the connection compartment (a) firmly onto the housing. 35 (1.38) 90 (3.54) 192 (7.56) a0001130 Fig. 27: Mounted directly on the wall Endress+Hauser...
  • Page 44 If the device is mounted to a warm pipe, make sure that the housing temperature does not exceed +60 °C (+140 °F), which is the maximum permissible temperature. Ø 20…70 (Ø 0.79…2.75) 155 ( ~ 6.1) a0001132 Fig. 29: Pipe mounting (wall-mount housing) Endress+Hauser...

  • Page 45: Post-Installation Check

    Outlet run  2 × DN Is the measuring device protected against moisture and direct sunlight? – Is the sensor adequately protected against vibration (attachment, support)? Acceleration up to 2 g in accordance with IEC 600 68-2-6 →  161 Endress+Hauser...

  • Page 46: Wiring

    When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to this Operating Manual. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Note! The device does not have an internal power switch. For this reason, assign the device a switch or power-circuit breaker which can be used to disconnect the power supply line from the power grid.
  • Page 47 (AWG 18) 0.32 mm (AWG 22) 44 /km 112 /km Loop-resistance (DC) 100  ± 20% 100  ± 30% Characteristic impedance at 31.25 kHz Attenuation constant at 39 kHz 3 dB/km 5 dB/km Capacitive asymmetry 2 nF/km 2 nF/km Endress+Hauser...
  • Page 48 • In the case of a branched bus segment, the device furthest from the segment coupler represents the end of the bus. • If the fieldbus is extended with a repeater then the extension must also be terminated at both ends. Endress+Hauser...
  • Page 49 (or protective ground) at one end only and to use capacitive coupling to connect all other grounding points. " Caution! The legal EMC requirements are fulfilled only when the cable shield is grounded on both sides! Endress+Hauser...

  • Page 50: Connecting The Remote Version

    Insulate the cable shields that are not connected. This eliminates the risk of short- circuits with neighboring cable shields inside the connection housing. Transmitter: Secure the cover on the connection compartment (a). Sensor: Mount the cover on the connection housing (b). Endress+Hauser...
  • Page 51 Connecting the remote version of Promag H Wall-mount housing connection compartment Cover of the sensor connection housing Signal cable Coil current cable n.c. Not connected, insulated cable shields Wire colors/Terminal No.: 5/6 = brown, 7/8 = white, 4 = green, 37/36 = yellow Endress+Hauser...
  • Page 52 A0002687 SENSOR Signal cable Coil current cable 20 (0.79)* 20 (0.79)* 160 (6.30)* 170 (6.69)* mm (inch) mm (inch) 80 (3.15) 70 (2.76) 50 (1.97) 50 (1.97) 17 (0.67) 8 (0.31) 10 (0.39) 8 (0.31) ³1 (0.04) A0002650 A0002646 Endress+Hauser...
  • Page 53 8 (0.31) 8 (0.31) A0002684 A0002686 SENSOR Signal cable Coil current cable 80 (3.15) 70 (2.76) 15 (0.59) 17 (0.67) 15 ( 0.59 40 (1.57) 8 (0.31) 8 (0.31) ³ 1 (0.04) ³ mm (inch) mm (inch) A0002648 A0002647 Endress+Hauser...

  • Page 54: Cable Specifications

    1 = Core, 2 = Core insulation, 3 = Core shield, 4 = Core jacket, 5 = Core reinforcement, 6 = Cable shield, 7 = Outer jacket Reinforced connecting cables As an option, Endress+Hauser can also deliver reinforced connecting cables with an additional, reinforcing metal braid. We recommend such cables for the following cases: •...

  • Page 55: Connecting The Measuring Unit

    Order version 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-) 26 = PA +  27 = PA - 53***-***********F PROFIBUS PA, Ex i 53***-***********H PROFIBUS PA  With integrated reverse polarity protection Endress+Hauser...
  • Page 56 – We recommend that the fieldbus cable not be looped using conventional cable glands. If you later replace even just one measuring device, the bus communication will have to be interrupted. Screw the cover of the connection compartment (a) back onto the transmitter housing. Endress+Hauser...
  • Page 57 – that the stripped and twisted lengths of cable shield to the ground terminal are as short as possible Service adapter for connecting service interface FXA193 (Fieldcheck, FieldCare) Cable for external termination: Terminal No. 24: +5 V Terminal No. 25: DGND Endress+Hauser...
  • Page 58 – the shielding and grounding of the fieldbus cable →  49 – that the stripped and twisted lengths of cable shield to the ground terminal are as short as possible Service adapter for connecting service interface FXA193 (Fieldcheck, FieldCare) Signal cable: see Terminal assignment →  55 Endress+Hauser...
  • Page 59 – the shielding and grounding of the fieldbus cable →  49 – that the stripped and twisted lengths of cable shield to the ground terminal are as short as possible Service adapter for connecting service interface FXA193 (Fieldcheck, FieldCare) Endress+Hauser...
  • Page 60 • Existing cable infrastructures can be used and expanded instantly, e.g. when constructing new star distributors using 4-channel or 8-channel distribution modules. The device can therefore be supplied with the option of a ready-mounted fieldbus connector. Fieldbus connectors for retrofitting can be ordered from Endress+Hauser as a spare part.→  128 150/300 45.0 (1.77)
  • Page 61 PROFIBUS PA measuring device using a plug-in cable. In such a case, use a metallic plug in which the cable shielding is attached to the plug housing (such as prefabricated cables). Endress+Hauser...

  • Page 62: Potential Matching

    When using process connections made of plastic, potential equalization must be guaranteed through the use of grounding rings →  24. The necessary grounding rings may be ordered separately as an accessory from Endress+Hauser (→  128). 4.4.3 Connection examples for potential equalization...
  • Page 63 The ground cable for flange-to-flange connections can be Fig. 38: Via the transmitter' s ground terminal and the pipe flanges ordered separately as an accessory from Endress+Hauser. When using the measuring device in: • Plastic pipes • Isolating lined pipes This type of connection occurs when: •...

  • Page 64: Degree Of Protection

    Caution! Do not loosen the screws of the sensor housing as otherwise the degree of protection guaranteed by Endress+Hauser no longer applies. Note! The sensor can also be supplied with IP 68 rating (permanent immersion in water to a depth of 3 meters (10 ft).

  • Page 65: Post-Connection Check

    PROFIBUS PA→  48 Has the max. length of the spurs been observed in accordance with the PROFIBUS DP →  47 PROFIBUS specifications? PROFIBUS PA→  48 Is the fieldbus cable fully shielded and correctly grounded? →  49 Endress+Hauser...

  • Page 66: Operation

    Local display for device operation in the field (option) Configuration/operating programs (e.g. FieldCare) for operation via PROFIBUS DP/PA Configuration/operating program for operating by means of the FXA193 service interface (e.g. FieldCare) Jumper/miniature switches for hardware settings (write protection, device address, address mode) Endress+Hauser...

  • Page 67: Local Display

    3 seconds Return directly to the HOME position – Cancel data entry key (Enter key)  – HOME position Entry into the function matrix – Save the numerical values you input or settings you change Endress+Hauser...
  • Page 68 Device with batching software: On measuring devices with installed batching software (F-Chip →  126) and a suitably configured display line, you can carry out filling processes directly using the local display. You will find a detailed description on →  70. Endress+Hauser...
  • Page 69 UNC = uncertain UNC= unclear Output value OUT, Output value OUT, analog input 1 to totalizer 1 to 3 2 (AI module) (TOTAL module) with status with status a0004618 a0002329 BAD = bad BAD= bad Endress+Hauser...
  • Page 70 After the batch quantity is reached, the "START" or "PRESET" softkeys reappear on the display. +2.5 l +2.5 l +2.5 l 0.0 l 0.0 l 0.0 l 0.0 l STOP HOLD MATRIX START PRESET MATRIX STOP GO ON MATRIX a0004386 Fig. 45: Controlling batching processes using the local display (softkeys) Endress+Hauser...

  • Page 71: Brief Operating Manual To The Function Matrix

    – Press and hold down the Esc key ( X ) for longer than 3 seconds  HOME position – Repeatedly press the Esc key ( X )  Return step-by-step to HOME position > 3 s – – – – – – – – a0001210 Fig. 46: Selecting functions and configuring parameters (function matrix) Endress+Hauser...

  • Page 72: General Notes

    • If programming is disabled and the OS operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If "0" is entered as the customer' s code, programming is always enabled. • The Endress+Hauser service organization can be of assistance if you mislay your personal code. "...

  • Page 73: Error Messages

    • Error conditions can be output via the relay outputs or the fieldbus communication. • If an error message occurs, an upper or lower signal level for the breakdown information according to NAMUR NE 43 can be output via the current output. Endress+Hauser...

  • Page 74: Operating Options

    5.5.1 Operating program "FieldCare" Fieldcare is Endress+Hauser’s FDT-based plant Asset Management Tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flow measuring devices are accessed via a service interface or via the service interface FXA193.
  • Page 75 The Fieldcheck tester/simulator is used for testing flowmeters in the field. When used in conjunction with the "FieldCare" software package, test results can be imported into a database, printed and used for official certification. Contact your Endress+Hauser representative for more information.
  • Page 76 The Fieldcheck tester/simulator is used for testing flowmeters in the field. When used in conjunction with the "FieldCare" software package, test results can be imported into a database, printed and used for official certification. Contact your Endress+Hauser representative for more information.

  • Page 77: Hardware Profibus Dp Settings

    Write protection switched off (factory setting) = it is possible to write to the device parameters via PROFIBUS (acyclic data transmission, e.g. via FieldCare). Overview of LED states:  – Lit continuously Ready for operation  – Not lit Not ready for operation  – Flashing System or process error present →  130 Endress+Hauser...
  • Page 78 Miniature switches for setting the device address (illustrated: 1 + 16 + 32 = device address 49) Miniature switches for the address mode (method of addressing): OFF = software addressing via local operation (factory setting) ON = hardware addressing via miniature switches Miniature switches not assigned Endress+Hauser...
  • Page 79 A = Factory setting B = Setting at the last transmitter Note! It is generally recommended to use external termination since if a device that is terminated internally is defect, this can result in the failure of the entire segment. Endress+Hauser...
  • Page 80 Installation of the I/O board is the reverse of the removal procedure. a0004411 Fig. 51: Configuring the current input with the aid of jumpers (I/O board) Current output Active current output (default) Passive current output Endress+Hauser...
  • Page 81 Installation of the I/O board is the reverse of the removal procedure. a0004412 Fig. 52: Configuring relay contacts (NC/NO) on the convertible I/O board (submodule) with the help of jumpers. Configured as NO contact (factory setting, relay 1) Configured as NC contact (factory setting, relay 2) Endress+Hauser...

  • Page 82: Hardware Profibus Pa Settings

    (acyclic data transmission, e.g. via FieldCare). Jumper without function Overview of LED states:  – Lit continuously Ready for operation  – Not lit Not ready for operation  – Flashing System or process error present →  130 Endress+Hauser...
  • Page 83 Miniature switches for setting the device address (illustrated: 1 + 16 + 32 = device address 49) Miniature switches for the address mode (method of addressing): OFF = software addressing via local operation (factory setting) ON = hardware addressing via miniature switches Miniature switches not assigned Endress+Hauser...

  • Page 84: Commissioning

    Operation  MEASURING OPERATION  MEASURING OPERATION Normal measuring mode commences as soon as startup completes. Various measured-value and/or status variables (HOME position) appear on the display. Note! If startup fails, an error message indicating the cause is displayed. Endress+Hauser...

  • Page 85: Quick Setup

    Failsafe Mode ➃ Configure another Output? Autom. Configuration of Display? Automatic parameterization ➄ of the display Another ➅ ➆ Batching Pulsating Flow Communication Quick Setup? Carrying out the selected Quick Setup a0004551-en Fig. 55: Quick Setup for fast commissioning Endress+Hauser...
  • Page 86 The existing (selected) settings remain. Å The BATCHING QUICK SETUP is only available when the optional software package BATCHING is installed. Æ The PULSATING FLOW QUICK SETUP is only available if the device has a current output or a pulse/ frequency output. Endress+Hauser...
  • Page 87 (see the "Description of Device Functions" manual) to suit local process conditions in order to ensure a stable, unvarying output signal: • Measuring system damping: "FLOW DAMPING" function  increase the value • Current output damping: "TIME CONSTANT" function  increase the value Endress+Hauser...
  • Page 88 • The display returns to the cell QUICK SETUP PULSATING FLOW (1003) if you press the Q key combination during parameter interrogation. • You can call up the Setup menu either directly from the "COMMISSIONING" Quick Setup menu or manually by means of the function QUICK SETUP PULSATING FLOW (1003). Endress+Hauser...
  • Page 89 OFF-VALUE LOW FLOW CUTOFF 6404 PRESSURE SHOCK SUPPRESSION ▾ Back to the HOME position:  Press and hold down the key for longer than three seconds or  Repeatedly press and release the key  Exit the function matrix step by step Endress+Hauser...
  • Page 90 Note! This function is only available when the additional "batching" software is installed in the measuring device (order option). You can order this software from Endress+Hauser as an accessory at a later date. →  128 This Quick Setup menu guides you systematically through the setup procedure for all the device functions that have to be modified and configured for batching operation.
  • Page 91 Assign Relay 4780 Terminal No. Batch Supervision? Max. Batch 7240 Time Autom. Configuration Display? PRESET Locked Access Customer Batch quantity Automatic parameterization of the display Quit Quick Setup a0004433-en Fig. 58: Quick Setup "Batching". Recommended settings see next page. Endress+Hauser...

  • Page 92: Recommended Settings

    2620 ASSIGN (Multiplex information line) ▾ Back to the HOME position:  Press and hold down the key for longer than three seconds or  Repeatedly press and release the key  Exit the function matrix step by step Endress+Hauser...
  • Page 93 PROFILE-GSD  The measuring device is operated in the PROFIBUS Profile mode. Factory setting: MANUFACT. SPEC. Note! For PROFIBUS network configuration, make sure that the right device master file (GSD file) of the measuring device is used for the selected operating mode:→  101 Endress+Hauser...
  • Page 94 PROFIBUS master (Class 1); this, in turn, can affect subsequent control routines. ▾ Back to the HOME position:  Press and hold down the key for longer than three seconds or  Repeatedly press and release the key = Exit the function matrix step by step Endress+Hauser...
  • Page 95 • This option can only be executed if the software version of the T-DAT is the same or newer than that of the EEPROM. Otherwise, the error message "TRANSM. SW-DAT" appears after restarting and the LOAD function is then no longer available. SAVE: Data are transferred from the EEPROM to the T-DAT. Endress+Hauser...

  • Page 96: Commissioning The Profibus Interface

    PROFIBUS master (Class 1). The assignment of a measured variable to the Analog Input function block is shown below using the example of Analog Input function block 1 (AI module, slot 1). Endress+Hauser...
  • Page 97 Select one of the following options: – VOLUME FLOW (CHANNEL = 273, factory setting): the volume flow is totalized. – MASS FLOW (CHANNEL = 277): the mass flow is totalized. – OFF (CHANNEL = 0): no totalizing, "0" is displayed as the totalizer value. Endress+Hauser...
  • Page 98 For PROFIBUS network configuration, make sure that the right device master file (GSD file) of the measuring device is used for the selected operating mode:→  101 Configuration of cyclic data transmission in the PROFIBUS master: A detailed description of the cyclic data transmission is contained on →  105 Endress+Hauser...
  • Page 99 BASIC FUNCTION (G)  SYSTEM PARAMETER (GLA)  CONFIGURATION (660)  MEASURING MODE (6601)  Selection of one of the following options: – UNIDIRECTIONAL (factory setting) = only the positive flow portions – BIDIRECTIONAL = the positive and negative flow components Endress+Hauser...
  • Page 100 For PROFIBUS network configuration, make sure that the right device master file (GSD file) of the measuring device is used for the selected operating mode:→  101 Configuration of cyclic data transmission in the PROFIBUS master: A detailed description of the cyclic data transmission is contained on →  105 Endress+Hauser...

  • Page 101: Profibus Dp/Pa System Integration

    EH_1527_d.bmp/ (Hex) (recommended): EH3x1527.gs .dib Standard Format: EH_1527_n.bmp/ EH3_1527.gs .dib EH_1527_s.bmp/ .dib How to acquire: • Internet (Endress+Hauser)  www.endress.de ( Download  Software  Drivers) • CD-ROM with all GSD files for Endress+Hauser devices  Order No.: 56003894 Endress+Hauser...
  • Page 102 Commissioning Promag 53 PROFIBUS DP/PA Contents of the downloadfile from the Internet and the CD-ROM: • All Endress+Hauser GSD files (standard and extended format) • Endress+Hauser type files • Endress+Hauser bitmap files • Useful information relating to the devices PROFIBUS Profile GSD file: The function scope of the profile GSD file is defined by the PROFIBUS Profile Specification 3.0.
  • Page 103 (input and output data) must be performed in the next step. This can be done directly by means of the configuration software. A detailed description of the modules supported by the measuring device as follows: PROFIBUS DP →  105 PROFIBUS PA→  115 Endress+Hauser...
  • Page 104 The number of writes to the EEPROM is technically restricted to a maximum of 1 million. Attention must be paid to this limit since, if exceeded, it results in data loss and measuring device failure. For this reason, avoid constantly writing nonvolatile device parameters via the PROFIBUS! Endress+Hauser...

  • Page 105: Profibus Dp Cyclic Data Transmission

    Analog Input function block 1 Output variable  volume flow (factory setting) Totalizer function block 1 TOTAL or TOTAL  output variable = volume flow (factory setting) SETTOT_TOTAL or SETTOT  totalizer control SETTOT_MODETOT_TOTAL MODETOT  totalizer configuration Endress+Hauser...
  • Page 106 (e.g. FieldCare) in the CHANNEL function: BASIC FUNCTION (G)  PROFIBUS DP (GBA)  FUNCTION BLOCKS (612)  BLOCK SELECTION (6120): Selection of an Analog Input function block  CHANNEL (6123): Selection of a measured variable Endress+Hauser...
  • Page 107 (e.g. FieldCare) in the CHANNEL function: BASIC FUNCTION (G)  PROFIBUS DP (GBA)  TOTALIZER (613)  SELECT TOTALIZER (6130): Selection of a totalizer  CHANNEL (6133): Selection of measured variable Endress+Hauser...
  • Page 108 SETTOT, MODETOT and TOTAL. With this module combination: • The totalizer can be controlled via the automation system (SETTOT). • The totalizer can be configured via the automation system (MODETOT). • The totalizer value, is transmitted, including the status (TOTAL) Endress+Hauser...
  • Page 109 Display value (IEEE 754 floating point Status number) Status The measuring device interprets the status in accordance with PROFIBUS Profile Specification Version 3.0. The statuses OK, BAD and UNCERTAIN are indicated on the local display by a corresponding symbol. →  69 Endress+Hauser...
  • Page 110 "0". A switchback to "0" does not have any effect. Example (change the output byte) From  Result  Positive zero return is switched on.  No effect  Positive zero return is switched off.  No effect Output data Byte 1 Control Endress+Hauser...
  • Page 111 "Description of Device Functions" manual, which is a separate part of this Operating Manual. Output data: Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Fixed correction quantity (IEEE 754 floating Status point number) Note! The status is not evaluated by the device. Endress+Hauser...
  • Page 112 Gaps between configured modules have to be assigned the EMPTY_MODULE module. For a more detailed description, see →  105 Endress+Hauser...
  • Page 113 TOTAL  output variable = volume flow (factory setting) SETTOT_MODETOT_TOTAL SETTOT  totalizer control MODETOT  totalizer configuration Analog Input function block 2 Output variable  mass flow (factory setting) DISPLAY_VALUE Value for local display CONTROL_BLOCK Control of device functions BATCHING_QUANTITY Batching quantity BATCHING_FIX_COMP_QUANTIT Fixed correction quantity Endress+Hauser...
  • Page 114 Analog Input function block 1 Output variable  volume flow (factory setting) Totalizer function block 1 TOTAL TOTAL  output variable = volume flow (factory setting) EMPTY_MODULE Empty EMPTY_MODULE Empty EMPTY_MODULE Empty EMPTY_MODULE Empty CONTROL_BLOCK Control of device functions Endress+Hauser...

  • Page 115: Profibus Pa Cyclic Data Transmission

    TOTAL  output variable = volume flow (factory setting) SETTOT_TOTAL or SETTOT  totalizer control SETTOT_MODETOT_TOTAL MODETOT  totalizer configuration Totalizer function block 2 TOTAL or TOTAL  output variable = volume flow (factory setting) SETTOT_TOTAL or SETTOT  totalizer control SETTOT_MODETOT_TOTAL MODETOT  totalizer configuration Endress+Hauser...
  • Page 116 BASIC FUNCTION (G)  PROFIBUS PA (GCA)  FUNCTION BLOCKS (612)  BLOCK SELECTION (6120): Selection of an Analog Input function block  CHANNEL (6123): Selection of a measured variable Possible settings Measured variable ID for CHANNEL function VOLUME FLOW MASS FLOW Endress+Hauser...
  • Page 117 ID for CHANNEL function VOLUME FLOW MASS FLOW Factory setting Module Totalizer Totalizer value/ Unit ID for CHANNEL function block Measured variable function  TOTAL (slot 2) VOLUME FLOW  TOTAL (slot 3) VOLUME FLOW  TOTAL (slot 4) VOLUME FLOW Endress+Hauser...
  • Page 118 For a description of the TOTAL function, refer to TOTAL module →  107 Data structure of the SETTOT_TOTAL module combination Output data Input data SETTOT TOTAL Byte 1 Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Control Totalizer value (IEEE 754 floating point number) Status Endress+Hauser...
  • Page 119 If the aggregated total of the totalizer should constantly retain the value 0, the MODETOT function must first be set to 3 (= totalizing is stopped) and then the SETTOT function must be set to 1 (= reset the totalizer). Endress+Hauser...
  • Page 120 "0". A switchback to "0" does not have any effect. Example (change the output byte) From  Result  Positive zero return is switched on.  No effect  Positive zero return is switched off.  No effect Output data Byte 1 Control Endress+Hauser...
  • Page 121 Gaps between configured modules have to be assigned the EMPTY_MODULE module. For a more detailed description, see →  105 Endress+Hauser...
  • Page 122 TOTAL  output variable = volume flow (factory setting) SETTOT_MODETOT_TOTAL SETTOT  totalizer control MODETOT  totalizer configuration Analog Input function block 2 Output variable  mass flow (factory setting) DISPLAY_VALUE Value for local display CONTROL_BLOCK Control of device functions Endress+Hauser...
  • Page 123 Analog Input function block 1 Output variable  volume flow (factory setting) Totalizer function block 1 TOTAL TOTAL  output variable = volume flow (factory setting) EMPTY_MODULE Empty EMPTY_MODULE Empty EMPTY_MODULE Empty EMPTY_MODULE Empty CONTROL_BLOCK Control of device functions Endress+Hauser...

  • Page 124: Profibus Dp/Pa Acyclic Data Transmission

    If programming is incorrect, this maximum number can be reached quickly, drastically reducing a device' s service life. Note! The memory module of the measuring device is designed for one million write operations. Endress+Hauser...

  • Page 125: Adjustment

    • ADJUSTMENT FULL = EMPTY The adjustment values for empty pipe and full pipe are identical. In such cases, the empty- pipe/full-pipe adjustment must be repeated! • ADJUSTMENT NOT OK Adjustment is not possible because the fluid’s conductivity is out of range. Endress+Hauser...

  • Page 126: Data Storage Device

    6.10 Data storage device At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data is stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.

  • Page 127: Maintenance

    The seals of the Promag H sensor must be replaced cyclically, particularly in the case of molded seals (aseptic version). The period between changes depends on the frequency of cleaning cycles, the cleaning temperature and the fluid temperature. Replacement seals (accessories)→  128 Endress+Hauser...

  • Page 128: Accessories

    Accessories Promag 53 PROFIBUS DP/PA Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. The Endress+Hauser service organization can provide detailed information on the order code of your choice. Device-specific accessories...

  • Page 129: Service-Specific Accessories

    Contact your Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser' s FDT-based plant Asset See the product page on the Management Tool. It can configure all the intelligent Endress+Hauser website: field units in your system and helps you manage these www.endress.com...

  • Page 130: Troubleshooting

    20 to 55 V AC and 16 to 62 V DC: 2 A slow-blow / 250 V Fieldbus connection PROFIBUS PA: Check data line Terminal 26 = PA + Terminal 27 = PA - PROFIBUS DP: Check data line Terminal 26 = B (RxD/TxD-P) Terminal 27 = A (RxD/TxD-N) ▾ Endress+Hauser...
  • Page 131 System or process errors which occur during commissioning or operation can also be displayed in the manufacturer-specific device controls using the FieldCare operating program. ▾ Other error (without error message) Other errors are present Diagnosis and rectification →  144 Endress+Hauser...

  • Page 132: System Error Messages

    In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser. →  155 Always enclose a duly completed "Declaration of contamination" form. You will find a preprinted blank of this form at the back of this manual.
  • Page 133 (ROM) or random access memory (RAM) of the processor. Remedy: Replace the amplifier board. S: AMP HW EEPROM 0x0F Device Constant Amplifier Cause: : # 011 Failure EEPROM Amplifier with faulty EEPROM failure Remedy: Replace the amplifier board. Endress+Hauser...
  • Page 134 Check whether the new replacement DAT : # 042 Failure inconsistent is compatible with the existing electronics. Check the: - Spare part set number - Hardware revision code 3. Replace measuring electronics boards if necessary. 4. Plug the T-DAT into the amplifier board. Endress+Hauser...
  • Page 135 Before replacing the DAT, check that the !: # 206 Failure DAT failed new, replacement DAT is compatible with the measuring electronics. Check the: – Spare part set number – Hardware revision code 3. Replace measuring electronics boards if necessary Endress+Hauser...
  • Page 136 1. Check wiring of terminals 41/42 →  50 2. Check coil current cable connector. Compact and remote version: If the error can not be resolved, please contact your local Endress+Hauser service organization. S: STACK CUR OUT n 0x0F Device Constant Temp.
  • Page 137 !: # 355 to 358 0x55 Unit Range Range Frequency output: The actual value for the flow 0x56 Violation High lies outside the set limits. Remedy: 1. Change the upper or lower limit setting, as applicable. 2. Increase or reduce flow, as applicable. Endress+Hauser...
  • Page 138 Wait until process is finished. P: RUN BATCHING 0x80 GOOD O.K. O.K. Batch running Cause: !: # 571 Batching is started and active (valves are open) Remedy: No measures needed (during the batching process some other functions may not be activated). Endress+Hauser...
  • Page 139 !: # 651 to 654 active Simulation relay output is active. Remedy: Switch off simulation. S: SIM. STATUS IN n 0x80 GOOD O.K. O.K. Simulation IO Cause: !: # 671 to 674 active Simulation status output is active. Remedy: Switch off simulation. Endress+Hauser...
  • Page 140 SIM. MEASURAND ( OFF) S: DEV. TEST ACT. 0x60 UNCERTAIN Simulated O.K. Device test via Cause: !: # 698 0x61 Value Fieldcheck active The measuring device is being checked on site 0x62 (manually High via the test and simulation device. specified value) Endress+Hauser...

  • Page 141: Process Error Messages

    Non specific O.K. EPD adjustment Cause: : # 463 0x41 (uncertain wrong The EPD/OED adjustment values for empty pipe 0x42 status) High and full pipe are identical, therefore incorrect. Remedy: Repeat adjustment, making sure procedure is correct. →  125 Endress+Hauser...
  • Page 142 2. If the batching quantity changes, the minimum batching quantity must be adjusted. Overbatching: 1. Reduce fixed correction quantity. 2. If the batching quantity changes, the maximum batching quantity must be adjusted. Note! Please observe Note in error message No. 471 Endress+Hauser...
  • Page 143 P: MAX. FLOW RATE 0x00 Non specific O.K. Flow Rate Cause: !: # 474 0x01 (uncertain Maximum flow value entered is 0x02 status) High exceeded. Remedy: Reduce the flow value. Note! Please observe Note in error message No. 471 Endress+Hauser...

  • Page 144: Process Errors Without Messages

    The following options are available for tackling problems of this nature: other fault not described above has • Request the services of an Endress+Hauser service technician occurred. If you contact our service organization to have a service technician sent out, please be ready to quote the...

  • Page 145: Failsafe Mode Of Outputs

    In the event of a fault or power supply failure: Relay  deenergized No effect on relay output The "Description of Device Functions" manual contains detailed information on relay switching response for various configurations such as error message, flow direction, EPD, limit value, etc. PROFIBUS →  132 Endress+Hauser...

  • Page 146: Spare Parts

    Note! You can order spare parts directly from your Endress+Hauser service organization by providing the serial number printed on the transmitter' s nameplate. →  6 Spare parts are shipped as sets comprising the following parts: •...
  • Page 147 I/O board (COM module), permanent assignment S-DAT (sensor data storage device) T-DAT (transmitter data storage device) F-CHIP (function chip for optional software) Display module Fieldbus connector consisting of protection cap, connector, adapter PG 13.5/M20.5 (only for PROFIBUS-PA, order No. 50098037) Endress+Hauser...
  • Page 148 • When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to this Operating Manual. " Caution! Use only original Endress+Hauser parts. Installing and removing the circuit boards →  70: Unscrew cover of the electronics compartment from the transmitter housing. Remove the local display (1) as follows: –...
  • Page 149 Power unit board Amplifier board Electrode signal cable (sensor) Coil current cable (sensor) S-DAT (sensor data storage device) T-DAT (transmitter data storage device) I/O board (flexible assignment) F-CHIP (function chip for optional software) Pluggable sub-modules (current, pulse/frequency and relay output) Endress+Hauser...
  • Page 150 Operating Manual. " Caution! Use only original Endress+Hauser parts. Installing and removing the circuit boards →  71: Wall-mount housing Remove the screws and open the hinged cover (1) of the housing. Remove the screws securing the electronics module (2). Then push up electronics module and pull it as far as possible out of the wall-mount housing.
  • Page 151 Power unit board Amplifier board Electrode signal cable (sensor) Coil current cable (sensor) S-DAT (sensor data storage device) T-DAT (transmitter data storage device) I/O board (flexible assignment) F-CHIP (function chip for optional software) Pluggable sub-modules (current, pulse/frequency and relay output) Endress+Hauser...
  • Page 152 – Power supply 85 to 260 V AC  0.8 A slow-blow / 250 V; 5.2 x 20 mm – Ex-rated devices  see the Ex documentation Installation is the reverse of the removal procedure. " Caution! Use only original Endress+Hauser parts. a0001148 Fig. 72: Replacing the device fuse on the power unit board Protective cap...
  • Page 153 View A = DN 1200 to 2000 (48 to 78") View B = DN 350 to 1050 (14 to 42") Allen screw Handle Electrode cable Knurled nut (locknut) Measuring electrode Stop cock Retaining cylinder Locking pin (for handle) Ball valve housing Seal (retaining cylinder) Coil spring Endress+Hauser...
  • Page 154 This is essential to ensure correct electrical contact and correct measuring signals. Remove the old electrode and insert the new Reinstall the cover and tighten the Allen screw electrode. Replacement electrodes can be ordered (1). separately from Endress+Hauser. Endress+Hauser...

  • Page 155: Return

    Endress+Hauser, e.g. for repair or calibration: • Always enclose a duly completed "Declaration of contamination" form. Only then can Endress+Hauser transport, examine and repair a returned device. • Enclose special handling instructions if necessary, for example a safety data sheet as per EC REACH Regulation No.
  • Page 156 Communication module: service protocol 2.00.01 07.2001 Com. module: 1.01.00 Software adjustment 06.2001 Amplifier: 1.02.00 Software adjustment 04.2001 Com. module: 1.00.00 Original software 50099246/04.01 09.2000 Amplifier: 1.01.01 Software adjustment 08.2000 Amplifier: 1.01.00 Software enhancement (functional adaptations) 04.2000 Amplifier: 1.00.00 Original software Endress+Hauser...

  • Page 157: Technical Data

    • Passive: 4 to 20 mA; supply voltage V 18 to 30 V DC; R Pulse/frequency output: Active/passive selectable, galvanically isolated > 100  • Active: 24 V DC, 25 mA (max. 250 mA during 20 ms), R • Passive: open collector, 30 V DC, 250 mA Endress+Hauser...
  • Page 158 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated. Low flow cut off Switch points for low flow are selectable. Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other. Endress+Hauser...

  • Page 159: Power Supply

    • Ambient temperature: +22 ± 2 °C (+72 ± 4 °F) • Warm-up period: 30 minutes Installation: • Inlet run >10 × DN • Outlet run > 5 × DN • Sensor and transmitter grounded. • Sensor centered relative to the pipe. Endress+Hauser...
  • Page 160 At ambient temperatures below –20 °C (–4 °F), the readability of the display may be impaired. Sensor: • Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) • Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) Endress+Hauser...
  • Page 161 The maximum fluid temperature permitted for the measuring device must not be exceeded. SIP cleaning possible: Promag H, Promag P (with PFA lining) SIP cleaning not possible: Promag E/L/W Electromagnetic compatibility (EMC) • As per IEC/EN 61326 and NAMUR Recommendation NE 21 • Emission: to limit value for industry EN 55011 Endress+Hauser...
  • Page 162 • –20 to +130 °C (–4 to +266 °F) for PFA/HE (DN 25 to 200 / 1 to 8"), restrictions  see diagrams below • –20 to +150 °C (–4 to +302 °F) for PFA (DN 25 to 200 / 1 to 8"), restrictions  see diagrams below Endress+Hauser...
  • Page 163 • 0 to +80 °C (+32 to +176 °F) for hard rubber (DN 65 to 2000 / 2½ to 80") • –20 to +50 °C (–4 to +122 °F) for polyurethane (DN 25 to 1200 / 1 to 48") Endress+Hauser...
  • Page 164 – Class 300 (1 to 6") • JIS B2220 – 10K (DN 50 to 300 / 2 to 12") – 20K (DN 25 to 300 / 1 to 12") • AS 2129 – Table E (DN 25 / 1"), 50 / 2") Endress+Hauser...
  • Page 165 3.48 5.58 6" 1.96 3.48 5.58 8" 2.90 4.21 5.95 10" 4.79 5.80 7.69 12" 5.80 7.25 9.14 14" 6.82 8.70 10.59 16" 7.83 9.72 11.60 18" Partial vacuum is impermissible! 20" 24" * No value can be quoted. Endress+Hauser...
  • Page 166 [mbar] ([psi]) at various fluid temperatures 25 °C 80° C 100 °C 130 °C 150 °C 180 °C [mm] [inch] 77 °F 176° F 212 °F 266 °F 302 °F 356 °F 1" 1 ½" 2" 3" 4" 6" Endress+Hauser...
  • Page 167 Further information can be found in the "Nominal diameter and flow rate" →  17 section Pressure loss • No pressure loss if the sensor is installed in piping with the same nominal diameter (for Promag H only from DN8). • Pressure losses for configurations incorporating adapters according to DIN EN 545 →  Endress+Hauser...
  • Page 168 89.4 104.4 120.4 – 168.4 – 18" 99.4 112.4 133.4 – 191.4 – 20" 114.4 132.4 182.4 – 228.4 – 24" 155.4 162.4 260.4 – 302.4 – • Transmitter (compact version): 1.8 kg • Weight data without packaging material Endress+Hauser...
  • Page 169 Promag H Note! The following weights apply to standard pressure ratings and without packaging material. Nominal Weights in [kg] diameter Compact version Remote version (without cable) [mm] Sensor Transmitter 19.0 17.0 18.5 16.5 Promag transmitter (compact version): 3.4 kg Endress+Hauser...
  • Page 170 – – 90" – – – 4797 – – 2400 – 2996 4094 – – – – Transmitter Promag (compact version): 3.1 kg (Weight data valid without packaging material) Lap joint flanges / welded flanges DN > 300 (12") Endress+Hauser...
  • Page 171 – – 90" – – – 4795 – – 2400 – 2994 4092 – – – – Transmitter Promag (remote version): 3.4 kg (Weight data valid without packaging material) Lap joint flanges / welded flanges DN > 300 (12") Endress+Hauser...
  • Page 172 14.0 12.7 16.0 21.0 19.5 19.0 21.5 24.5 23.5 22.5 41.9 39.9 69.4 67.4 72.3 70.3 Promag transmitter (compact version): 3.4 kg High-temperature version: +1.5 kg * Only DN 25 and 50 are available for flanges as per AS Endress+Hauser...
  • Page 173 72.3 70.3 1000 1200 1400 1300 1298 1600 1700 1698 1800 2200 2198 2000 2800 2798 Promag transmitter (compact version): 3.4 kg *Only DN 80, 100, 150 to 400, 500 and 600 are available for flanges as per AS Endress+Hauser...
  • Page 174 [inch] Sensor Transmitter 1/12" 11.5 13.5 1/8" 11.5 13.5 3/8" 11.7 13.5 ½" 11.9 13.5 1" 12.1 13.5 1½" 14.3 13.2 2" 19.8 15.5 13.2 3" 41.9 37.5 13.2 4" 40.8 36.5 13.2 Promag transmitter (compact version): 7.5 lbs Endress+Hauser...
  • Page 175 – – – – 90" 10577 10573 2400 – – – Transmitter Promag (compact version): 4.0 lbs Transmitter Promag (remote version): 6.8 lbs (Weight data valid without packaging material) Lap joint flanges / welded flanges DN > 300 (12") Endress+Hauser...
  • Page 176 The following weights apply to standard pressure ratings and without packaging material. Nominal Weights in [lbs] diameter Compact version Remote version (without cable) Sensor Transmitter [inch] ASME/AWWA ASME/AWWA 1" 1 ½" 2" 3" 4" 6" 8" 10" 12" 14" 16" 18" 20" 24" Endress+Hauser...
  • Page 177 – Compact housing: powder-coated die-cast aluminum or stainless steel field housing (1.4301 (304)) – Wall-mounted housing: powder-coated die-cast aluminum – Window material: glas or polycarbonate • Sensor housing: stainless steel 1.4301 (304) • Wall mounting kit: stainless steel 1.4301 (304) Endress+Hauser...
  • Page 178 – DN  350 (14"): stainless steel 1.4301 (304) or 1.4306 (304L); for flanges made of carbon steel with Al/Zn protective coating • Electrodes: 1.4435 (316, 316L), Platinum, Alloy C22, Tantalum, Titanium • Flange – EN 1092-1 (DIN2501): 1.4571 (316L); RSt37-2 (S235JRG2); Alloy C22; FE 410W B Endress+Hauser...
  • Page 179 The material load diagrams (pressure-temperature diagrams) for the process connections can be found in the separate "Technical Information" documentation, which you can download in PDF format from www.endress.com. A list of available "Technical Information" documentation can be found in the "Documentation" →  184 section. Endress+Hauser...
  • Page 180 • Internal thread • Hose connection • PVC adhesive fitting With molded seal: • Weld nipple DIN 11850, ODT/SMS • Clamp ISO 2852, DIN 32676, L14 AM7 • Coupling DIN 11851, DIN 11864-1, ISO 2853, SMS 1145 • Flange DIN 11864-2 Endress+Hauser...
  • Page 181 • Western Europe and America (WEA): English, German, Spanish, Italian, French, Dutch and Portuguese • Eastern Europe and Scandinavia (EES): English, Russian, Polish, Norwegian, Finnish, Swedish and Czech. • South and east Asia (SEA): English, Japanese, Indonesian • China (CN): English, Chinese Endress+Hauser...
  • Page 182 CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick symbol The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 183: Ordering Information

    10.1.13 Ordering information Detailed ordering information is available from the following sources: • In the Product Configurator on the Endress+Hauser website: www.endress.com → Select country → Instruments → Select device → Product page function: Configure this product • From your Endress+Hauser Sales Center: www.endress.com/worldwide...
  • Page 184 • Promag 53E Technical Information (TI01164D/06) • Promag 53H Technical Information (TI00048D/06) • Promag 53P Technical Information (TI00047D/06) • Promag 53W Technical Information (TI00046D/06) • Description of device functions Promag 53, PROFIBUS DP/PA (BA00064D/06) • Supplementary documentation on Ex-ratings: ATEX, FM, CSA Endress+Hauser...

  • Page 185: Index

    Configuration active/passive ....80 See Performance characteristics Technical data ......157 Error messages Endress+Hauser...
  • Page 186 PROFIBUS PA ......118 Mounting location ......12 Endress+Hauser...
  • Page 187 PROFIBUS DP cyclic data transmission see Frequency output AI (Analog Input) module..... 106 Pumps BATCHING_FIX_COMP_QUANTITY module ..111 Endress+Hauser...
  • Page 188 System error Definition ........73 Endress+Hauser...
  • Page 189 Promag 53 PROFIBUS DP/PA Endress+Hauser...
  • Page 190 www.addresses.endress.com...

Table of Contents
