3.3.7
Turning the local display
1.
Unscrew the electronics compartment cover from the transmitter housing.
2.
Press the latches on the side of the display module and pull the module out of the
electronics compartment cover.
3.
Turn the display to the desired position (max. 4 × 45° in both directions) and position it
back on the electronics compartment cover.
4.
Screw the cover of the electronics compartment firmly onto the transmitter housing.

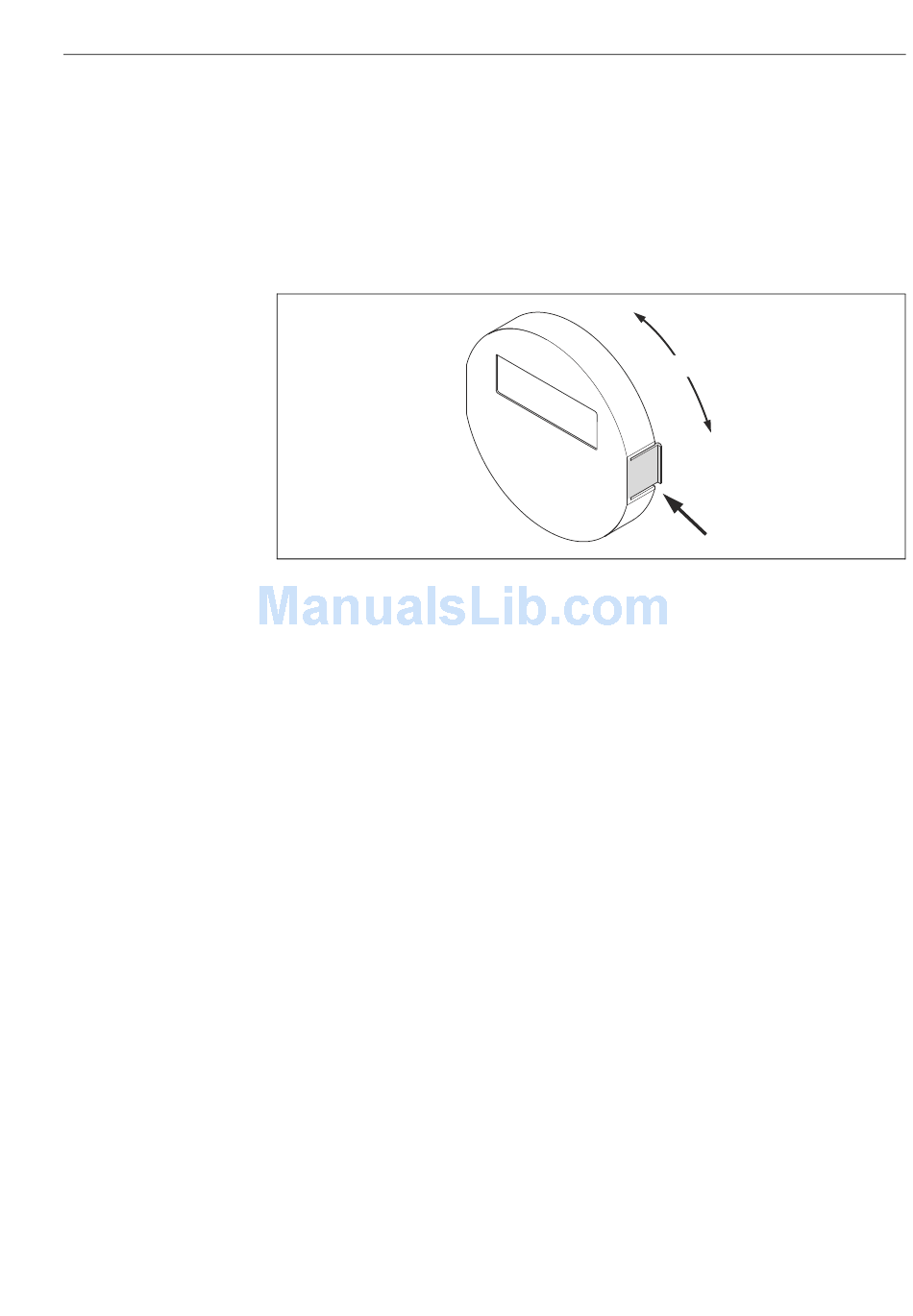

Fig. 26:
Turning the local display (field housing)
Installation
4 x 45°
a0003236
