Endress+Hauser Promag 10 Installation Instruction

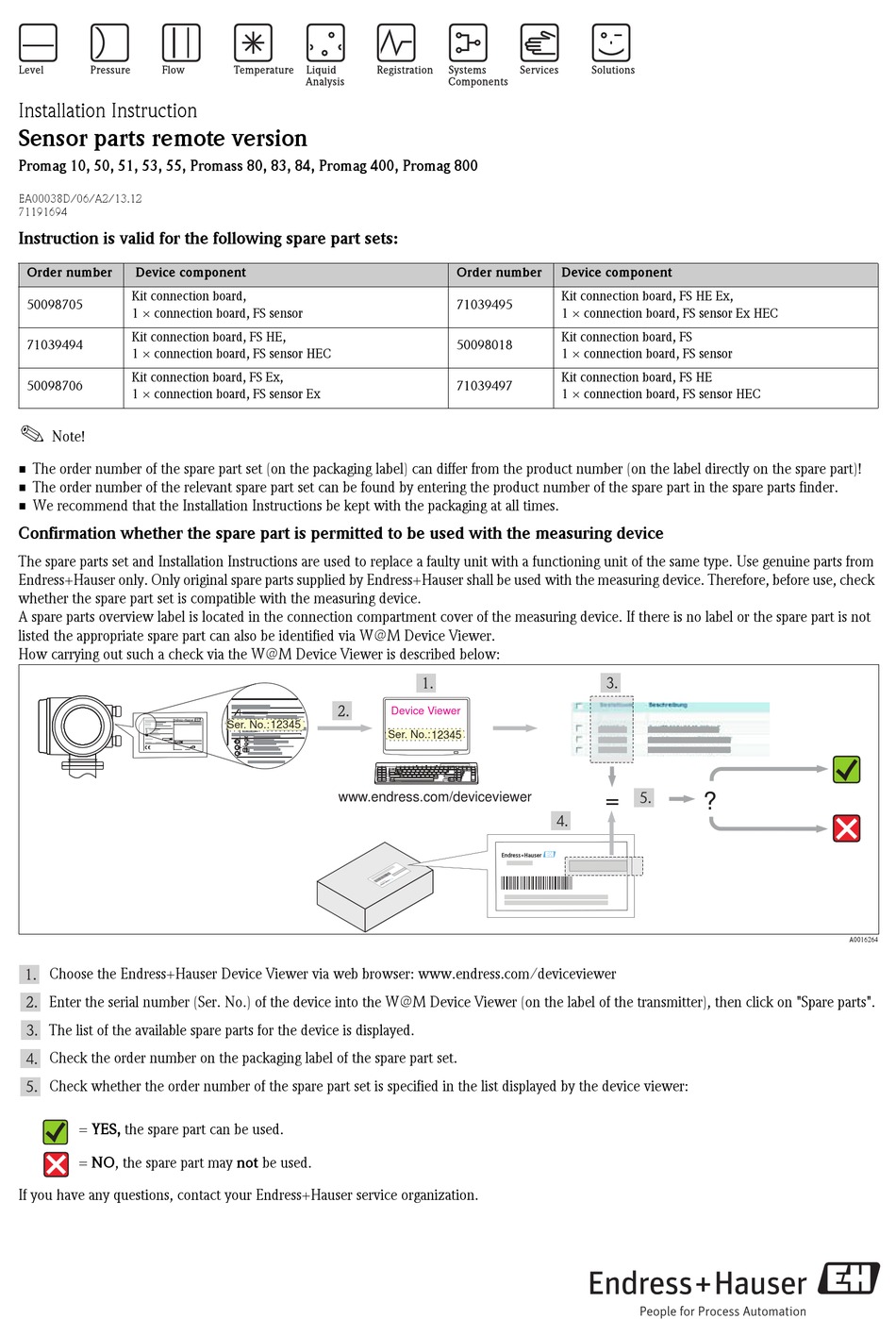

Installation Instruction
Sensor parts remote version

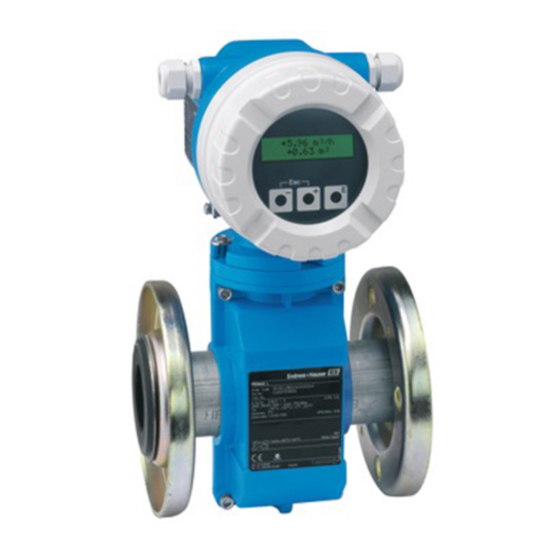

Promag 10, 50, 51, 53, 55, Promass 80, 83, 84, Promag 400, Promag 800
EA00038D/06/A2/13.12
71191694
Instruction is valid for the following spare part sets:
Order number Device component
Kit connection board, 
50098705
1 × connection board, FS sensor
Kit connection board, FS HE, 
71039494
1 × connection board, FS sensor HEC
Kit connection board, FS Ex, 
50098706
1 × connection board, FS sensor Ex
!
Note!
• The order number of the spare part set (on the packaging label) can differ from the product number (on the label directly on the spare part)!
• The order number of the relevant spare part set can be found by entering the product number of the spare part in the spare parts finder.
• We recommend that the Installation Instructions be kept with the packaging at all times.
Confirmation whether the spare part is permitted to be used with the measuring device
The spare parts set and Installation Instructions are used to replace a faulty unit with a functioning unit of the same type. Use genuine parts from
Endress+Hauser only. Only original spare parts supplied by Endress+Hauser shall be used with the measuring device. Therefore, before use, check
whether the spare part set is compatible with the measuring device.
A spare parts overview label is located in the connection compartment cover of the measuring device. If there is no label or the spare part is not
listed the appropriate spare part can also be identified via W@M Device Viewer.
How carrying out such a check via the W@M Device Viewer is described below:
i
Choose the Endress+Hauser Device Viewer via web browser: www.endress.com/deviceviewer
Enter the serial number (Ser. No.) of the device into the W@M Device Viewer (on the label of the transmitter), then click on "Spare parts".
The list of the available spare parts for the device is displayed.
Check the order number on the packaging label of the spare part set.
Check whether the order number of the spare part set is specified in the list displayed by the device viewer:
= YES, the spare part can be used.
= NO, the spare part may not be used.
If you have any questions, contact your Endress+Hauser service organization.
Ser. No.:12345 Ser.No.:1234567890
i
www.endress.com/deviceviewer
Order number
71039495
50098018
71039497
Device Viewer
Ser. No.: 12345
Device component
Kit connection board, FS HE Ex, 
1 × connection board, FS sensor Ex HEC
Kit connection board, FS
1 × connection board, FS sensor
Kit connection board, FS HE
1 × connection board, FS sensor HEC
=
?
A0016264
