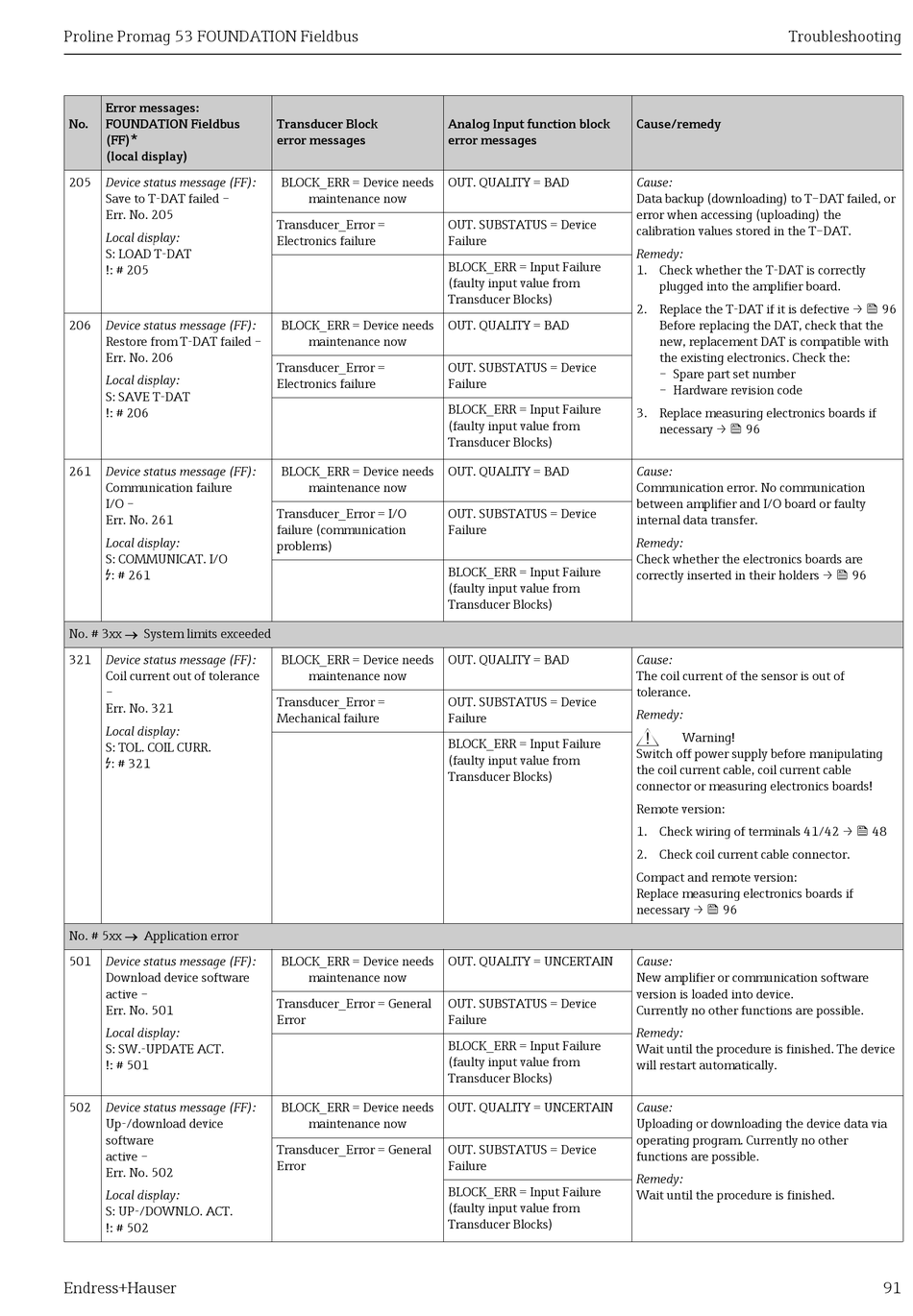

Endress+Hauser Proline Promag 53 Operating Instructions Manual page 91

Proline Promag 53 FOUNDATION Fieldbus
Error messages:
No. FOUNDATION Fieldbus
(FF)*
(local display)
205 Device status message (FF):
Save to T-DAT failed –
Err. No. 205
Local display:
S: LOAD T-DAT
!: # 205
206 Device status message (FF):
Restore from T-DAT failed –
Err. No. 206
Local display:
S: SAVE T-DAT
!: # 206
261 Device status message (FF):
Communication failure
I/O –
Err. No. 261
Local display:
S: COMMUNICAT. I/O
$ : # 261
No. # 3xx  System limits exceeded
321 Device status message (FF):
Coil current out of tolerance
–
Err. No. 321
Local display:
S: TOL. COIL CURR.
$ : # 321
No. # 5xx  Application error
501 Device status message (FF):
Download device software
active –
Err. No. 501
Local display:
S: SW.-UPDATE ACT.
!: # 501
502 Device status message (FF):
Up-/download device
software
active –
Err. No. 502
Local display:
S: UP-/DOWNLO. ACT.
!: # 502
Endress+Hauser
Transducer Block
error messages
BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Electronics failure
BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Electronics failure
BLOCK_ERR = Device needs
maintenance now
Transducer_Error = I/O
failure (communication
problems)
BLOCK_ERR = Device needs
maintenance now
Transducer_Error =
Mechanical failure
BLOCK_ERR = Device needs
maintenance now
Transducer_Error = General
Error
BLOCK_ERR = Device needs
maintenance now
Transducer_Error = General
Error
Analog Input function block
error messages
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = BAD
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = UNCERTAIN
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
OUT. QUALITY = UNCERTAIN
OUT. SUBSTATUS = Device
Failure
BLOCK_ERR = Input Failure
(faulty input value from
Transducer Blocks)
Troubleshooting
Cause/remedy
Cause:
Data backup (downloading) to T–DAT failed, or
error when accessing (uploading) the
calibration values stored in the T–DAT.
Remedy:
1. Check whether the T-DAT is correctly
plugged into the amplifier board.
2. Replace the T-DAT if it is defective →  96
Before replacing the DAT, check that the
new, replacement DAT is compatible with
the existing electronics. Check the:
– Spare part set number
– Hardware revision code
3. Replace measuring electronics boards if
necessary →  96
Cause:
Communication error. No communication
between amplifier and I/O board or faulty
internal data transfer.
Remedy:
Check whether the electronics boards are
correctly inserted in their holders →  96
Cause:
The coil current of the sensor is out of
tolerance.
Remedy:
#
Warning!
Switch off power supply before manipulating
the coil current cable, coil current cable
connector or measuring electronics boards!
Remote version:
1. Check wiring of terminals 41/42 →  48
2. Check coil current cable connector.
Compact and remote version:
Replace measuring electronics boards if
necessary →  96
Cause:
New amplifier or communication software
version is loaded into device.
Currently no other functions are possible.
Remedy:
Wait until the procedure is finished. The device
will restart automatically.
Cause:
Uploading or downloading the device data via
operating program. Currently no other
functions are possible.
Remedy:
Wait until the procedure is finished.
