Note: Please make sure a network cable is connected to the IP Buddy+'s LAN port ONLY. Before using the PoE power output, please
make sure the IP camera supports PoE power; otherwise it will damage the IP camera.

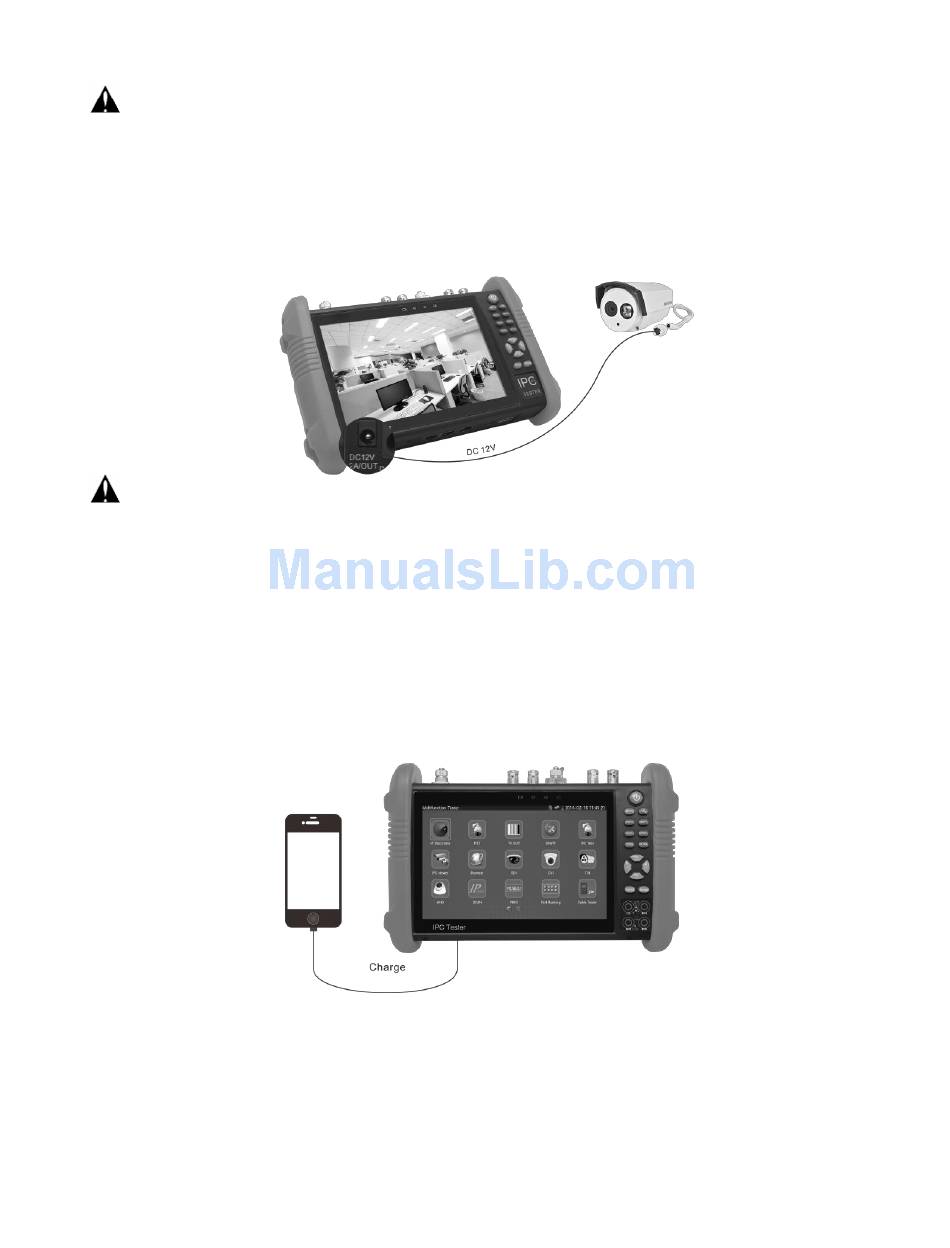

3.9 12VDC 2A power output

When the IP BUDDY+ ALL IN 1 is turned on, the 12VDC power output ON by default. The smaller end of the supplied converter cable
connects to the tester's 12VDC/2A OUTPUT and the other end connects to the camera's power input.
Note:
Don't input any power into the "DC12/2A OUTPUT" port of the tester. Such damage will void the warranty.
a.
b.
The IP BUDDY+'s power output capacity is 2A. If the IP camera uses more than 2A, the tester will automatically enter a protection mode.
Disconnect all cables from the tester and reboot it to resume using the tester.
c. Make sure the tester has a sufficient charge otherwise the tester will not able to provide enough output power.

3.10 USB 5VDC 2A power output

When the tester is turned on, the 12VDC and 5VDC power output functions are automatically turned on. If the IP BUDDY+ ALL IN 1 is turned
off, the 5VDC USB can still be used to power an external USB device. NOTE: The USB port is for power only and not data.
38
