Audio output and headphone interface
36
Audio input
37
5V 2A USB power output (used only for power, not data)
38
12VDC 2A charging interface
39
12VDC 2A power output , for provisional DC power supply
3. Operation
3.1 Installing the Battery
The tester has a built-in lithium ion polymer rechargeable battery. Prior to the use of the unit, the battery cable connection behind the
battery door needs to be connected and the unit fully charged for no more than 8 hours prior to use.
Pressing the
key for two seconds will power on or off the tester.
Notice: Please use the original adapters and cables of the device!
When the battery icon is full or the charge indicator turns off automatically, the battery charging is complete and the charger needs to be
unplugged.
Notice: When the Charge Indicator
this indicator turns off.
Notice: Hold the
key for several seconds until the unit restarts to restore the factory default settings.
Warning: RS485 and RS232 Instrument communication ports are not permitted to exceed circuit voltage over 6V; otherwise it will damage
the tester.
3.2 Instrument connection

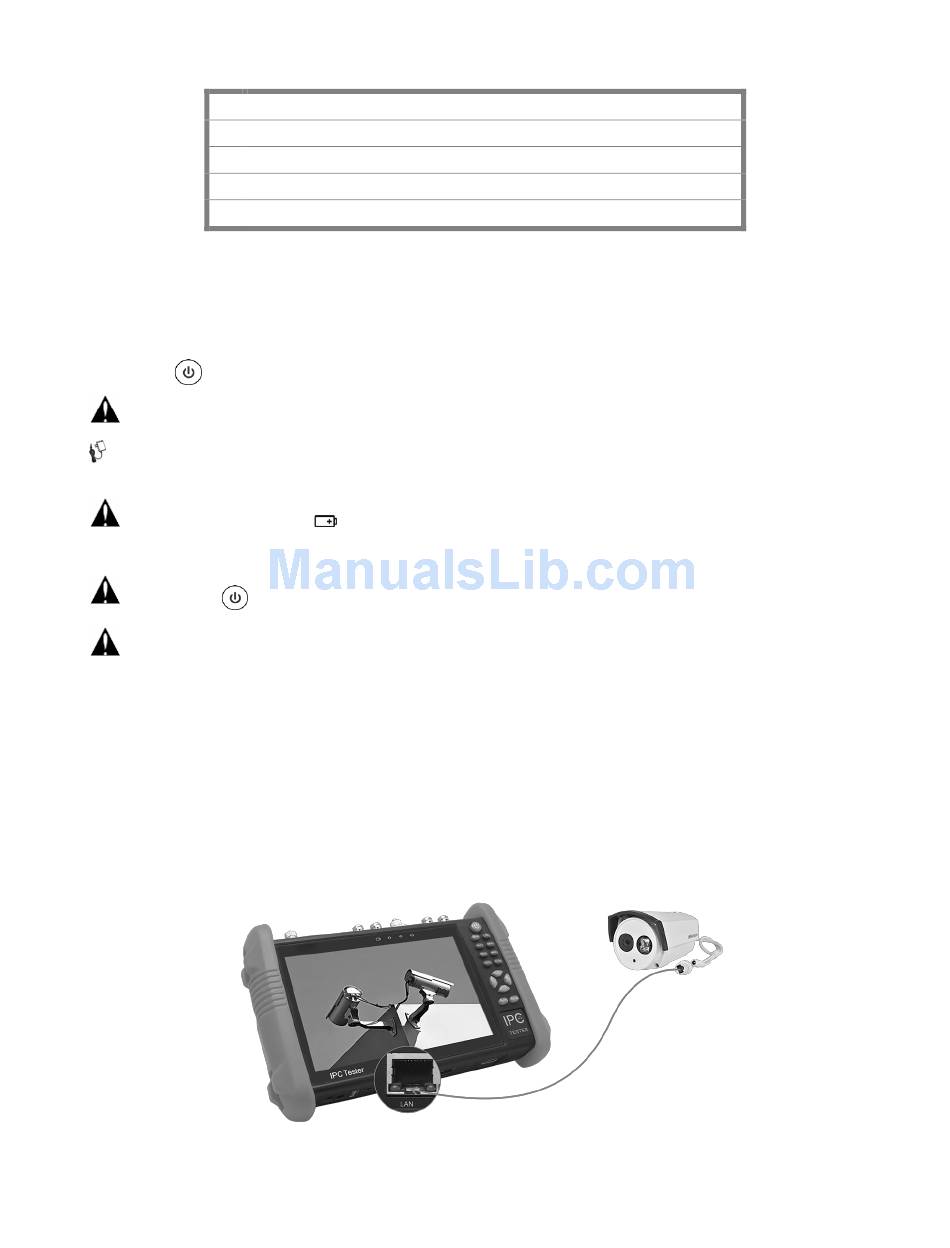

3.2.1 IP camera connection
Power an IP camera with an independent power supply or use the POWER OUT app on the meter and then connect the IP camera to the IP
BUDDY+'s LAN port. If the link indicator of the tester's LAN port is green and the data indicator flickers, it means the IP camera and the IP
BUDDY+ ALL IN 1 are communicating. If the two indicators don't flicker, check if the IP camera is powered on and make sure the network
cable is functioning properly.
turns off, the battery is approximately 90% charged. Do not charge for more than one hour after
8
