Enter in any necessary PTZ control settings and you should have PTZ control. For more information of operation of PTZ control, settings,
snapshot, record and playback, please refer to the CVI PTZ section on page 16.

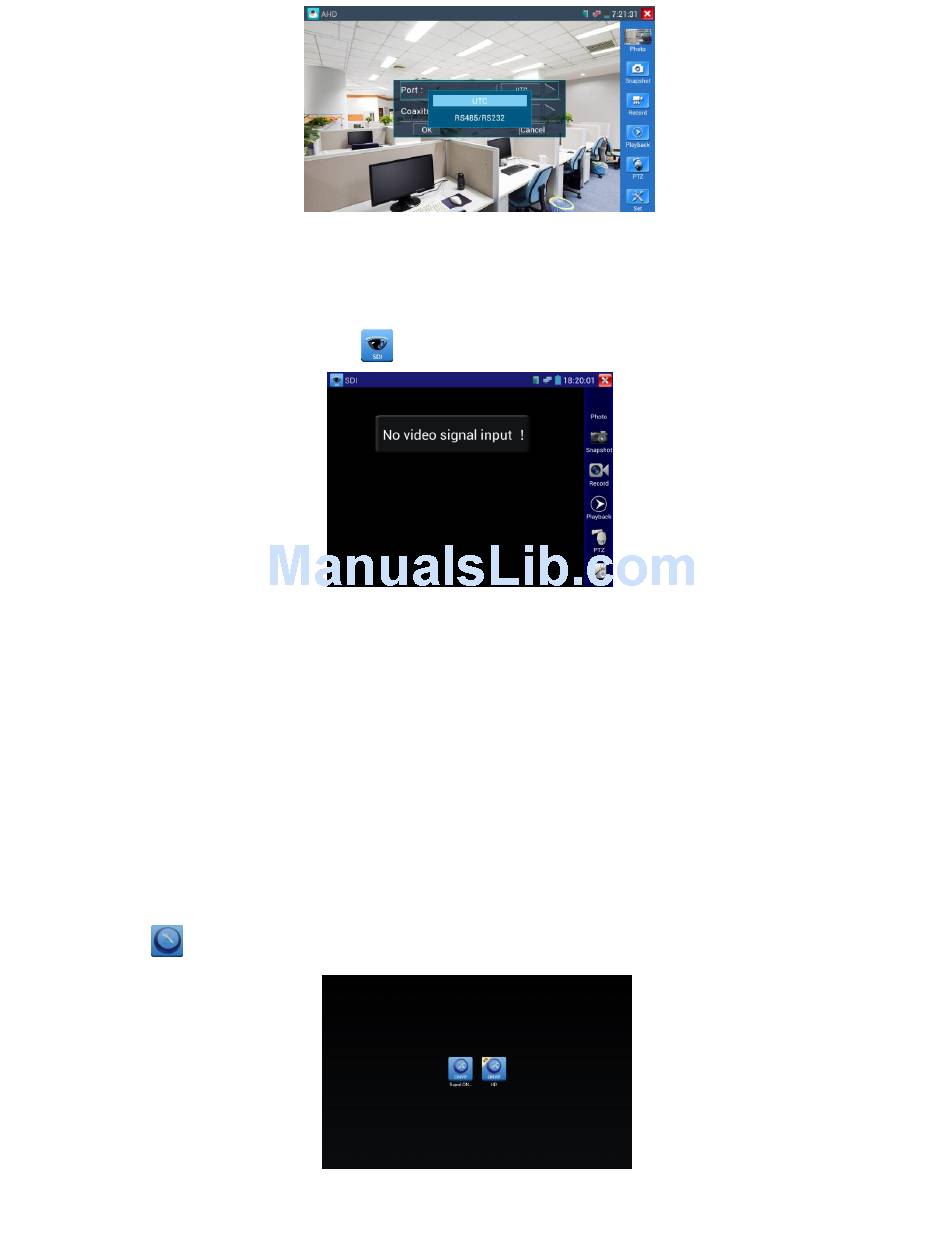

3.3.6 SDI Camera Test

For SDI and SDI PTZ camera testing, click on the icon to open the SDI Camera Tester:
Connect your SDI camera to the SDI BNC input at the top of the tester. Once the SDI Camera tester receives video input, it will auto adjust itself
and display the video information. The tester currently supports the following resolutions:
1280x720P (25Hz, 30Hz, 50Hz, 60Hz) 1920x1080P (25Hz, 30Hz) and 1920x1080I (50Hz, 60Hz).
The SDI camera tester does not support 1080P @ 50Hz or 60Hz. If your SDI camera has an incompatible resolution, the screen will display
"Does not support playing 1920*1080p 60Hz". If no SDI camera input is detected, the screen will display "No video signal input!"
The SDI Camera tester has a selection of icons on the right side of the screen. These include Photo, Snapshot, Record, Video playback, PTZ
control and Settings. The operation of these functions are the same as the analog video monitor, please refer to the relevant instructions in section
3.3.1 of the manual.
The IP Buddy+ SDI's HDMI output can also be used as an SDI to HDMI converter, outputting the HD-SDI image to an HDTV monitor.
3.3.7 ONVIF
The Open Network Video Interface Forum (ONVIF) app is used to connect to ONVIF compliant IP cameras only. We always suggest using the
ONVIF app to connect to ONVIF compliant IP cameras because you have the most control over the camera using this app.
icon to enter the ONVIF app. Then tap either the "RAPID ONVIF" icon to quickly scan and auto log into a camera or the
Click the
"ONVIF HD" icon for HD video up to 1080P.
18
