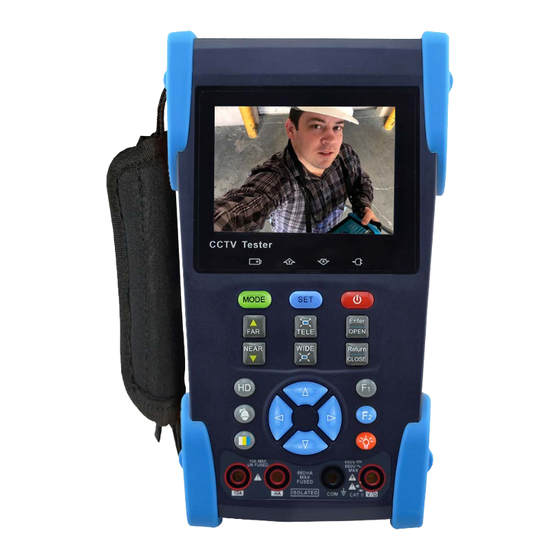

- Page 1 ST-HDoC / ST-HDoC-MM CVI/TVI/AHD & ANALOG TEST METER WITH OPTIONAL SDI & DIGITAL MULTIMETER (Optional Features: ST-HDoC-MM) User Manual V 1.2 www.nacebrands.com www.securitytronix.com...
- Page 2 Batteries come disconnected to ensure they do not drain during shipment. Please connect the battery prior to powering on the ST-HDoC If there is any question or problem while using the ST-HDoC HD tester, please contact our SecurityTronix technical support department at 1-800-688-9282, option 3, and then option 2.
-
Page 3: Table Of Contents
Table of Contents 1.Safety information ................Error! Bookmark not defined. 2.Introduction............................1 2.1 General ........................... 1 2.2 Features ..........................2 2.3 Function ..........................3 2.4 Packing List ..........................7 2.5 Front Panel ..........................8 3.Operation ................... Error! Bookmark not defined.3 3.1 Installing the Battery...................... - Page 4 3.6 LED lamp ..........................34 4.Specifications ............................. 34 4.1 General Specifications ......................34 4.2 Multimeter specifications ..................... 37...
-
Page 5: Safety Information
ST-HDoC / ST-HDoC-MM 1. Safety information ◆ The ST-HDoC/ ST-HDoC-MM is intended for use in compliance with applicable codes and laws. ◆ Do not expose to moisture. ◆ Do not drop. ◆ The tester should not be charged over 8 hours. -
Page 6: Features
Test LAN cables for proper connection termination. Other functions include, LED Flashlight, 12VDC 2A power output and much more. Its portability, user-friendly design and many other functions make the ST-HDoC an essential tool for all installers or technicians. 2.2 Features ... -
Page 7: Function
11 hours of normal use after charging for 4 -5 hours. 2.3 Function 2.3.1 Video signal test The new ST-HDoC tester with 3.5 inch LCD-TFT, 480（RGB）x320 resolution, allows the user to view the images from sufficient angles. The display is suitable for outdoor installation and maintenance work. - Page 8 2.3.7 Cable tester Connect a LAN cable from the ST-HDoC/MM unit to the included blue remote cable tester. The unit will test for connection status, cable type and the status of each wires conductivity will be displayed.
- Page 9 This displays an HD TVI camera image. It supports 720p @ 25/30fps & 1080p @ 25/30fps. The features are live video and coaxial PTZ control including calling up the camera’s OSD menu. 2.3.13 SDI camera test (ST-HDoC-MM only) This displays an HD SDI camera image. It supports 720p @ 25/30fps & 1080p @ 25/30fps. The...
- Page 10 Cable Tracing is not available with the ST-HDoC series testers. 2.3.15 Digital multimeter (ST-HDoC-MM only) The ST-HDOC-MM has a highly accurate 33/4 digit (6600) built in digital multi-meter. It is used to measure AC and DC voltages, current, resistance, continuity, capacitance and diode testing. It can switch between auto and manual measuring ranges.
-
Page 11: Packing List
5) 3 foot BNC test cable 6) 18 inch RS485 test cable with alligator clips 7) Multi meter test leads (red and black) (only for the ST-HDoC-MM model) 8) 3 foot camera powering cable 9) 18 inch 3.5mm audio microphone or speaker cable with alligator clips 10) Carrying case and hanging strap with front accessory pouch 11) User’s manual... -
Page 12: Front Panel
ST-HDoC / ST-HDoC-MM 2.5 Front Panel... - Page 13 Add the value of the parameter. Pan the PTZ right Digital multimeter: voltage, current, resistance and capacitance measuring, continuity testing, diode testing (ST-HDoC-MM only) Downward: Select the item which will be set or reduce the value of the parameter. Tilt the PTZ downward Leftward: Enter the sub-menu or select the parameter whose value will be changed.
- Page 14 ST-HDoC / ST-HDoC-MM WIDE: zoom out the image Near focus: Focus the image near Far focus: Focus the image far Menu key TELE: zoom in the image...
- Page 15 ST-HDoC / ST-HDoC-MM Analog / HD TVI/CVI/AHD signal input (BNC interface) Video output (BNC output interface): CVBS output Optical power meter interface (Optional) */ Visual fault locator interface (Optional) * TDR cable open circuit and short circuit test (Optional) *...
-
Page 16: Operation
ST-HDoC / ST-HDoC-MM 3. Operation 3.1 Installing the Battery The tester has a built-in lithium ion polymer rechargeable battery. Prior to the use of the unit, the battery cable connection behind the battery door needs to be connected and the unit fully charged for no more than 8 hours prior to use. -
Page 17: Instrument Connection
The camera or speed dome to be tested should be connected to the “VIDEO IN” port. ⑵ . The ST-HDoC “VIDEO OUT” interface is for connecting to an auxiliary BNC monitor. ⑶ . Connect the camera or the speed dome’s RS485 controller cable to the tester’s RS485 interface (Note positive and negative connection of the cable). -
Page 18: Ptz Controller
ST-HDoC / ST-HDoC-MM Press the key to switch between menu pages, the square icon at the bottom of the screen indicates the different pages of apps available. Press the key to select the different function icon, then press the key... - Page 19 Protocol. The tester supports more than 30 different protocols, including Pelco, Samsung, Bosch, etc. B. Port The default port for the ST-HDoC is set to RS485 for analog PTZ cameras, with UTC protocols being embedded in the corresponding HDoC app. C. Baud Move the yellow cursor to “Baud”...
- Page 20 ST-HDoC / ST-HDoC-MM Press the key to control the PTZ direction of rotation Press the key to switch on or turn off the aperture. Press the key , adjust the focus manually Press the key , manually adjust the zoom...
-
Page 21: Color Bar Generator
ST-HDoC / ST-HDoC-MM OSD Menu of Dome (For Reference only) After calling the PTZ camera menu, Users can select different functions using the arrow keys. Please refer to the PTZ camera’s manual for help with navigating/ configuring the PTZ OSD menu. -
Page 22: Video Level Meter (Optional)
LCD brightness, contrast, color saturation can be adjusted. The ST-HDoC auto displays the format (PAL/NTSC) of the video input, and analyzes the input video signal level. If the coaxial cable is too long, it will reduce the video signal level. If the level is too low, the image will not be as deep and its dynamic range will be reduced. -
Page 23: Ptz Address Search
ST-HDoC / ST-HDoC-MM Depending on the type of camera connected to the ST-HDoC, the Video “Format ” will automatically switch between NTSC and PAL, and the Video Level will automatically switch between IRE (Institute of Radio Engineers) and mV. NTSC signals measured in IRE units, PAL signals are measured in mV. -
Page 24: Cvi Camera Test (Optional)
Speed Dome Camera. Press the button to quit. 3.3.6 CVI camera test Connect a CVI camera to the ST-HDoC’s “AHD, CVI, TVI” interface. Press the key to enter the tester’s main menu, then press the keys to select CVI. Press key to enter CVI test. -
Page 25: Tvi Camera Test (Optional)
ST-HDoC / ST-HDoC-MM 3.3.7 TVI camera test Connect a TVI camera to the ST-HDoC’s “AHD / TVI / CVI ” interface. key to enter the tester’s main menu, then press key to select “TVI” Press press the key to enter TVI test. -
Page 26: Sdi Camera Test (Optional)
Testing a LAN or telephone cable. Connect a LAN or telephone cable to the ST-HDoC tester, and the other end into the cable tester marked ( No.255) . Once connected, the cable type and sequence of wires will be displayed, including... -
Page 27: Digital Multimeter （Optional
ST-HDoC / ST-HDoC-MM Note: The number of the cable tester is 255. 3.3.12 Digital Multi-Meter（ST-HDoC-MM ONLY) Press the key to enter the tester’s main menu, then press the key to select then press to enter. Function Button： ：Auto range ：Data hold ：Relative measuring... - Page 28 ST-HDoC / ST-HDoC-MM AC/DC Voltage and current measurement display Auto- range Automatically adjust the display range based off the device tested Data hold When pressed, the current measurement display will hold for reference Relative Display the relative measurement value, press the key again to change the...
- Page 29 ST-HDoC / ST-HDoC-MM B. AC Voltage Measuring WARNING! WARNING! You can’t input the voltage which more than 660V AC, it’s possible to show higher voltage, but Input voltage not to exceed 660V DC! may destroy the inner circuit. Pay attention not to get an electric shock when measuring high voltage.
- Page 30 ST-HDoC / ST-HDoC-MM 10.00A range（use 10A unfused socket） 00.00A c. Connect the test leads in series with the load under measurement. d. Once power is applied to the circuit, the current load reading will display on screen. NOTE: When the figure “OL” is displayed, it indicates an over range situation, and the higher range has to be selected.
- Page 31 ST-HDoC / ST-HDoC-MM 10.00A range（use 10A socket） 00.00A c. Connect test leads in series with the load under measurement. d. Once power is applied to the circuit, the current load reading will display on screen. NOTE: When only the figure “OL” is displayed, it indicates over range situation and the higher range has to be selected.
- Page 32 ST-HDoC / ST-HDoC-MM 00.00 MΩ 66.00MΩ range c. Connect the test leads to the device being measured. d. Once connected the resistance will be displayed on screen. NOTE: When only the figure “OL” is displayed, it indicates over range situation and the higher range has to be selected.
- Page 33 ST-HDoC / ST-HDoC-MM H. Capacitance Measuring WARNING! To avoid electric shock, be sure the capacitors have been fully discharged before measuring the capacitance of a capacitor. Ω a. Connect the black test lead to the“ COM ” jack and the red test lead to the “V/ ”...
- Page 34 ST-HDoC / ST-HDoC-MM Manual range and Auto range Press the key to change the value, press the Key for auto measurement Data hold Press the key to hold the data, the color will change to Green, when the data is held. Press it again to quit and resume normal operation.
-
Page 35: Optical Power Meter（Optional
ST-HDoC / ST-HDoC-MM 3.3.13 Optical Power Meter The optical power meter feature is not available with the ST-HDoC 3.3.14 Visual Fault Locator The visual fault locator is not available with the ST-HDoC 3.3.15 TDR Tester The TDR tester is not available with the ST-HDoC 3.3.16 Data monitor... -
Page 36: Device Setting
ST-HDoC / ST-HDoC-MM 3.3.18 Device setting Press to enter the menu, the press the key to enter. Press to choose the item, press to adjust, press to save, press to quit. Auto power off: You can set the meter to auto power off in 5, 10, or 60 minute intervals. -
Page 37: Dc12V 1A Power Output
Do not apply the output power of the ST-HDoC to the input port as this can damage the tester. If a camera that draws more than 1A of power is connected to the output port of the ST-HDoC, it will enter self-protection mode. Under this condition, disconnect the output power of the meter to the camera, and use an external compatible power supply to power the camera. -
Page 38: Audio Input Test
NOTE: Please check your local laws governing the use of audio recording/monitoring equipment. 3.6 LED lamp The ST-HDoC is equipped with an on board LED flashlight located on the top of the unit. Turn on the tester, press for several seconds, and the LED lamp will turn on, press again to turn off the lamp. - Page 39 ST-HDoC / ST-HDoC-MM PTZ Controller Communication RS485 / UTC Compatible with more than 30 protocols such as PELCO-D/P, Samsung, PTZ Protocol Panasonic, Lilin, Yaan, etc. Baud Rate 600,1200, 2400, 4800, 9600, 19200, 57600, 115200bps Video Signal Generation Supports both PAL / NTSC format’s standard color bar output (Red, Green,...
- Page 40 ST-HDoC / ST-HDoC-MM Digital Multimeter ( ST-HDoC-MM) AC/DC Voltage 0-660V auto/manual range, minimum resolution of 0.1mV AC/DC current 660.0uA , 6.600mA, 66.00mA , 660.0mA, 10.00A 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ Resistance Capacitance 6.6nf～66000uF, minimum resolution of 1pf Diode 0～2V forward voltage, minimum resolution of 1mV...
- Page 41 ST-HDoC / ST-HDoC-MM 4.2 Multimeter specifications: DC Voltage Range Accuracy Resolution 660mV (Manual range) 0.1mV 6.600V ±（0.3%+4） 66.00V 10mV 660.0V 100mV AC Voltage Range Accuracy Resolution 660.0mV (Manual range) ±（1.5%+6） 0.1mV 6.600V 66.00V ±（0.8%+6） 10mV 660.0V 100mV DC Current Range...
- Page 42 ST-HDoC / ST-HDoC-MM 10.00A ±（1%+5） 10mA Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±（0.8%+5） 6.600KΩ 1Ω 66.00KΩ 10Ω ±（0.8%+2） 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ 10KΩ ±（1.2%+5） Continuity Range Resolution Function 660.0Ω 0.1Ω The measurement value less 30Ω±3Ω,the tester will sound Diode...
- Page 43 ST-HDoC / ST-HDoC-MM Capacitance Range Accuracy Resolution 6.600nF ±（0.5%+20） 66.00nF 10pF 660.0nF 100pF ±（3.5%+8） 6.600μF 66.00μF 10nF 660.0μF 100nF 1μF 6.600mF ±（5%+8） 10μF 66.00mF The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries or assistance with using the meter, please contact our support line at 1-800-688-9282.
- Page 44 This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the ST-HDOC /ST-HDOC-MM series meters. To obtain service, the Original Purchaser must return the ST-HDOC /ST-HDOC-MM meter to the Company properly packaged for shipping.
- Page 45 ST-HDoC / ST-HDoC-MM revolution, insurrection, military or usurped power or confiscation, terrorist activities, nationalization, government sanction, blockage, embargo, labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity control, internet, network, or telephone service The warranties given herein, together with any implied warranties covering the hardware, including any warranties of merchantability or fitness for a particular purpose, are limited in duration to two years from the date of shipment to the Original Purchaser.
