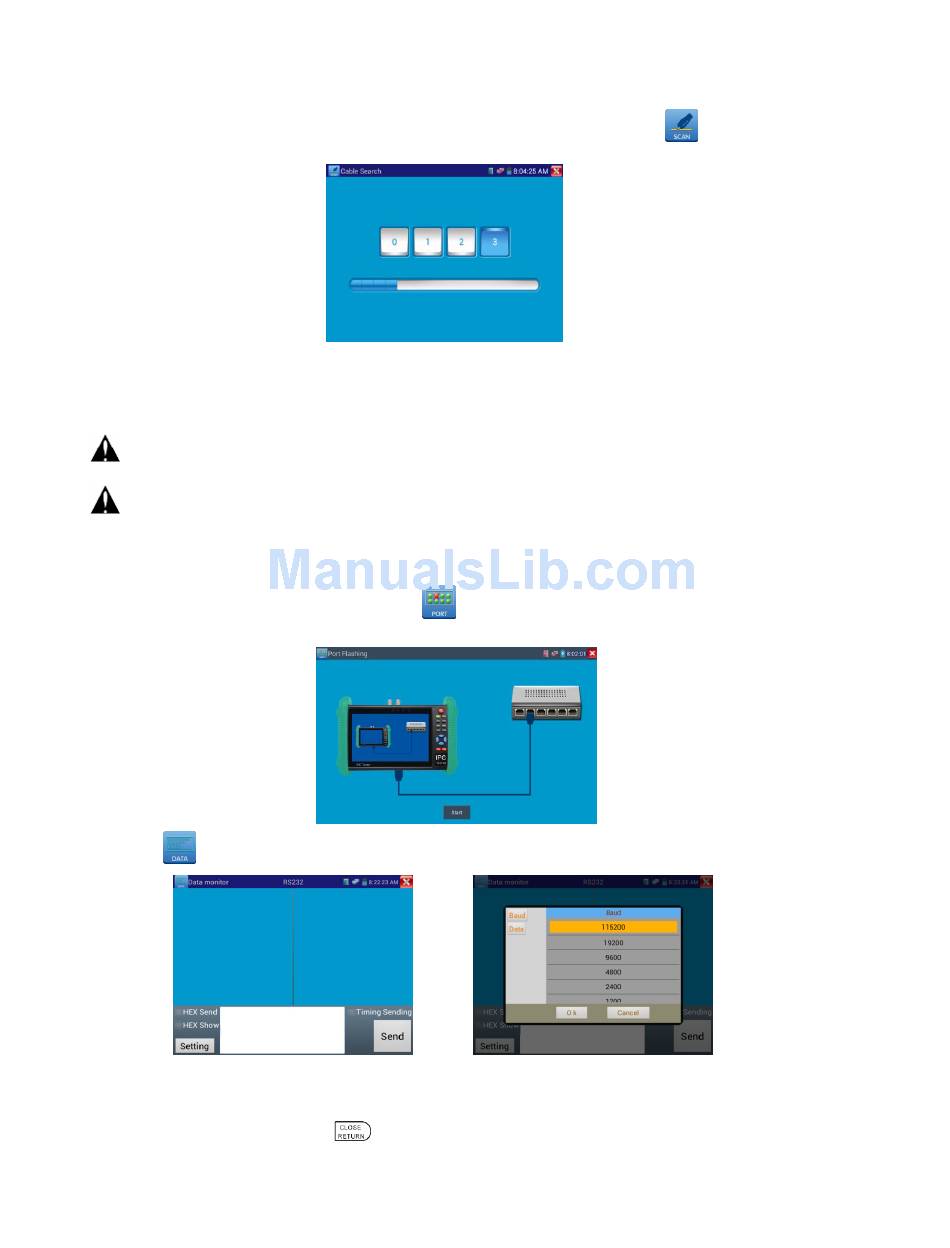

3.3.11b Cable Search
Connect a network cable to the UTP/SCAN port or connect a BNC cable to the "Video Out" port. Click the
Search app. To switch between the different audio tones, select a number on the screen as seen below:
Use the blue Combination cable identifier and network cable tester's copper pointer to touch all the cables in the bundle you are searching at the
other end. The cable that gives off the loudest tone is the cable connected to the tester. Press the + or – buttons on your blue cable identifier to
adjust the volume.
Note: Install two AAA batteries in your blue Cable Identifier.
Note: While the cable tracer is receiving the audio signal from the tester, it may be induced into adjacent or crossing cables;
however, the cable that makes the loudest noise is the one that's connected to the meter.

3.3.12 Port flashing

Connect a network cable to the meter's "LAN" port; click the
IN 1 sends a unique signal to make the connected LAN port of the switch flash.

3.3.13 Data monitor

Click on the icon to use the Data monitor.
Click "Setting" to choose the baud rate of RS485/RS232; this must match the DVR, Control keyboard, or other device under testing. The device
sends its code to the tester. If the code can be read, the code will show on the upper right part of the screen.
To clear data from the code field, press the
icon to open the Port Flashing app. Click "Start". The IP BUDDY+ ALL
key.
25
icon to open the Cable
