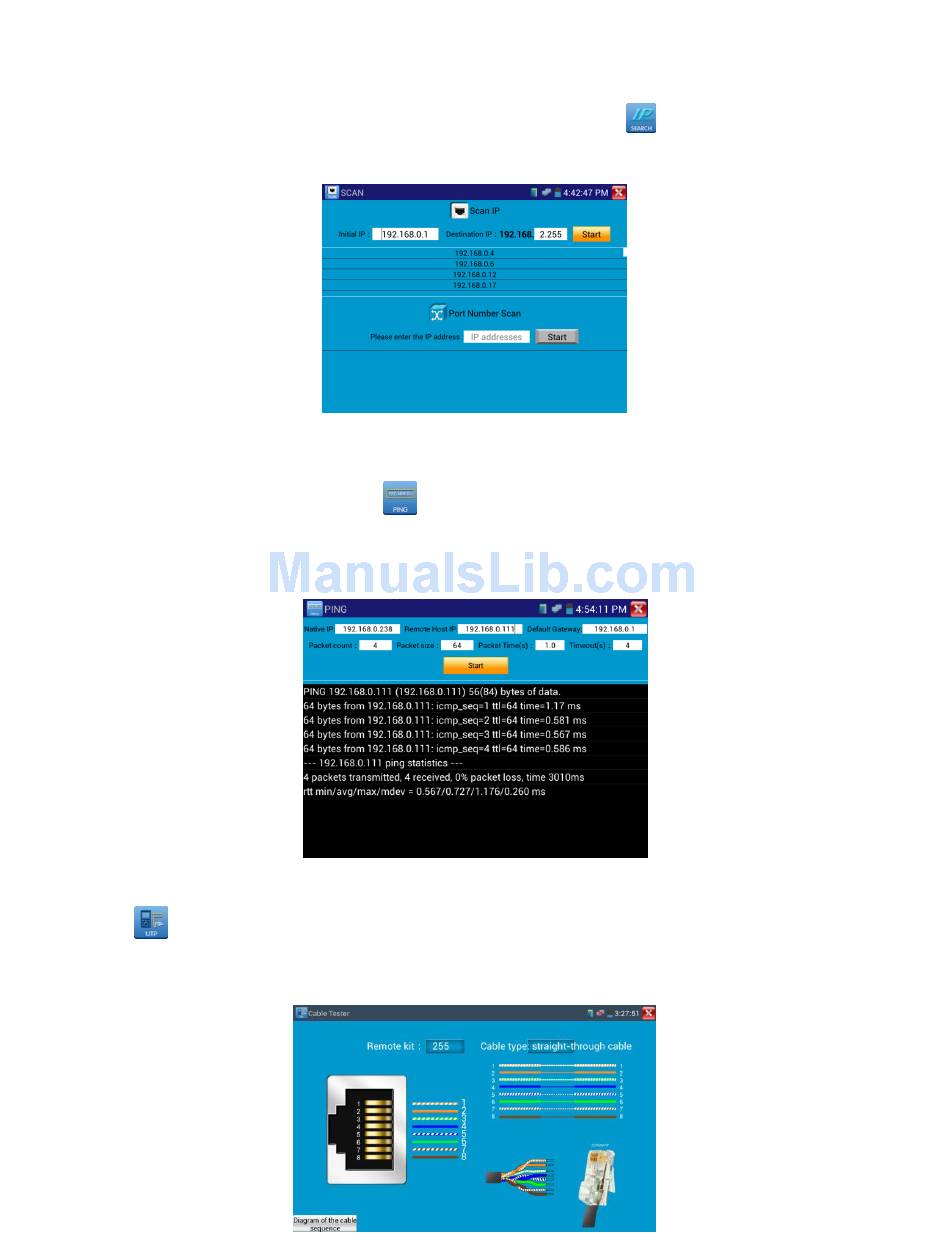

3.3.9 IP address scanner
Connect your network cable to the LAN port of the IP BUDDY+ ALL IN 1 meter and then click the
icon to open the IP address scanner.
Set your IP address search range by changing the Start and End IP addresses. Click the "Start" button to scan the IP address range. You can also
input an IP address in the Port Number Scan to scan for open ports.
3.3.10 PING Test
PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network equipment's Ethernet
port is working normally and the IP address is correct.
Connect a network cable to the LAN port and click the
icon to open the PING tool. You can set your LOCAL (native) IP address,
Remote IP address (e.g. IP camera), Packet count, Packet Size, Packet time and Timeout. Press "Start" to start pinging. If the IP camera or
network device is not configured properly or not plugged in, it will say "Destination host unreachable," or have 100% packet loss. If the tester
connects to the device, the send and receive packets will have a 0% packet loss.
3.3.11a Cable Test
Click the
icon to open the cable tester app. Connect a Network cable from the IP BUDDY+ ALL IN 1 unit's UTP/SCAN port to the
included blue cable identifier and network cable tester combo device. The unit will test for connection status, cable type and the status of each
wire's conductivity will be displayed. If you click on the "Diagram of cable sequence" you will see the color code terminations of straight
through and cross over cable.
24
