Update; Audio Test; Hdmi Output; Poe Power Output - Security Tronix IP BUDDY+ User Manual

Turn off option：If you select "Fast turn off", the tester will shut down faster but data will not saved. To avoid unnecessary problems, it is
recommended not to use the "Fast turn off" option.

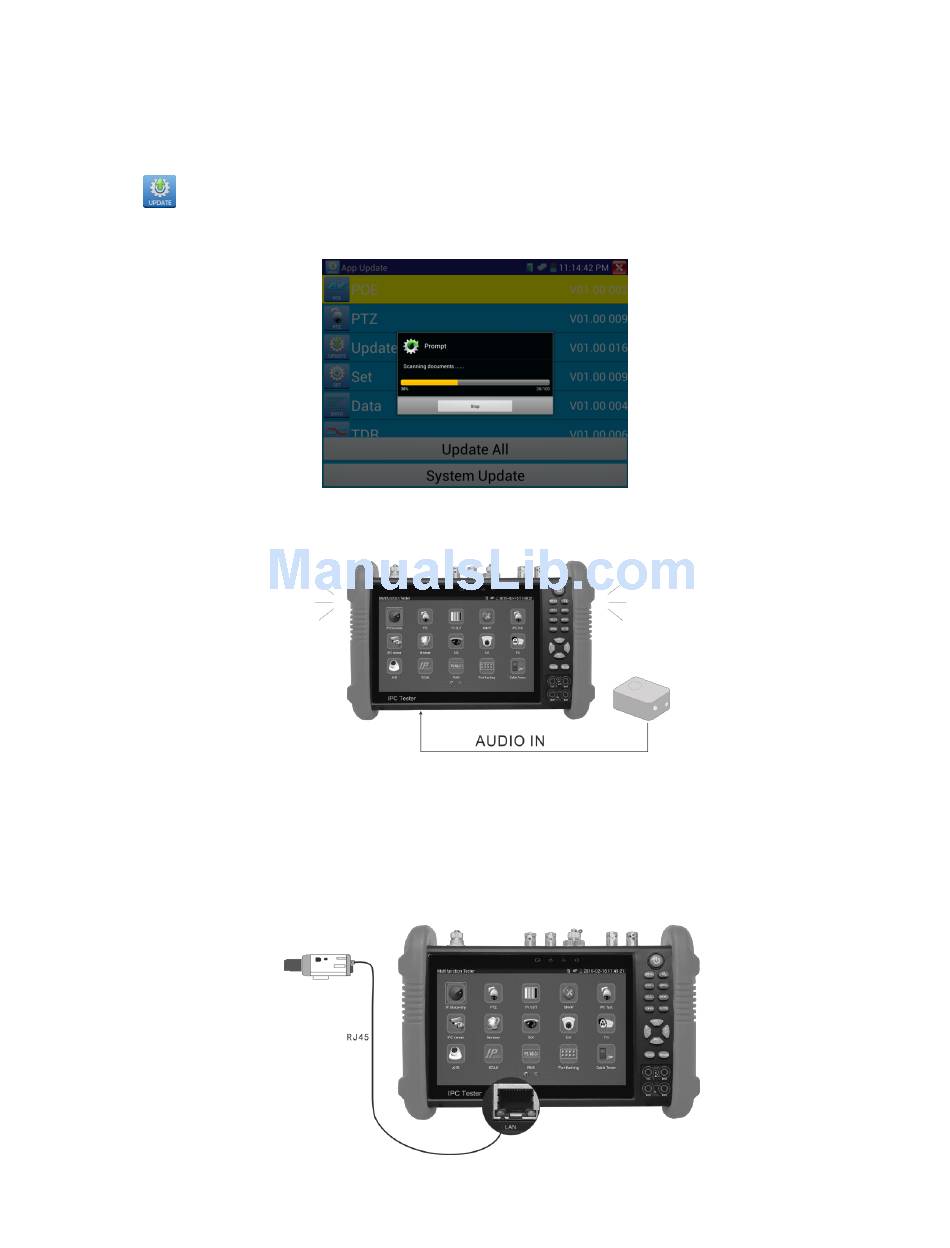

3.5 Update

icon to open the Update menu. Select "Local Update" to update via the SD card or select "Online Update" to check for updates
Click the
on the internet. If there are applications that need updating, the applications will be displayed on the screen. Click the relevant applications to
update them to the latest version.

3.6 Audio test

You can test the audio input from audio pickup devices by connecting the audio pickup device to the IP BUDDY+ ALL IN 1 with the supplied
audio cable.

3.7 HDMI output

The built in HDMI output port can output live video from an analog or IP camera, recorded files, media files and images to HDTV monitors.
Connect an HDMI cable from the IP BUDDY+ ALL IN 1 to an HDTV monitor at any time. It supports up to 1080P resolution.

3.8 PoE power output

The IP BUDDY+ ALL IN 1 supports PoE (Power over Ethernet) output to an IP camera via the LAN port. Data transmission and 48VDC use the
network cable's 1, 2, 3, and 6 pins to deliver power. If the IP camera supports PoE, you can directly connect to the camera without the use of an
external power supply.
37
