Warning：PoE switch or PSE power sourcing equipment can only be connected to the meter's "PSE IN" port; otherwise it will damage the
tester.

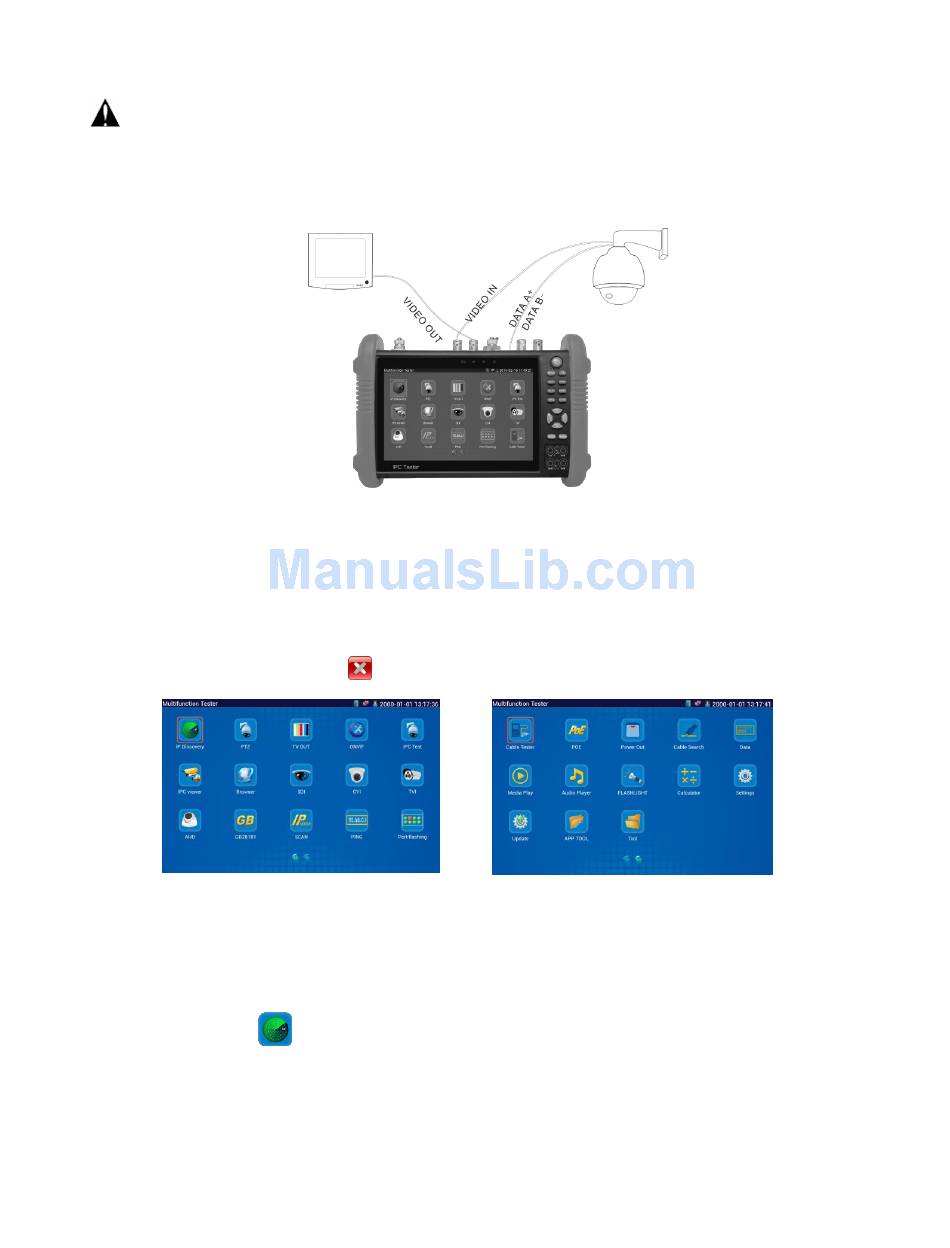

3.2.2 Coaxial camera connection (Analog/CVI/TVI/AHD/SDI)
(1) Connect the camera's video output to the BNC VIDEO IN or CVI/TVI/AHD/SDI IN. Open the corresponding app (CVI, TVI, AHD,
SDI or PTZ for analog)
(2) IP BUDDY+'s "VIDEO OUT" BNC connector or HDMI output can connect to the video input of a monitor.
(3) For PTZ cameras, connect the camera's RS485 controller cable to the tester's RS485 interface (Note positive and negative connection
of the cable must be connected with proper polarity to operate).

3.3 OSD menu

Select an icon to open the app. To exit, press the
To move an app icon to the "APPS" folder, press and hold until the "move to apps directory" appears on the screen then press OK to move it or
Cancel.

3.3.0 IP Discovery

IP Discovery is the newest and easiest way to find and connect to IP Cameras. After using POWER OUT to turn on PoE Power to an IP camera,
click on the IP discovery icon:
IP Discovery will automatically start scanning all possible network segments for the connected camera. Once it finds the camera, it will show the
camera's IP address and it will auto-modify the tester's IP to match the network settings of the camera.
key.
9
