Ahd Camera Test - Security Tronix IP BUDDY+ User Manual

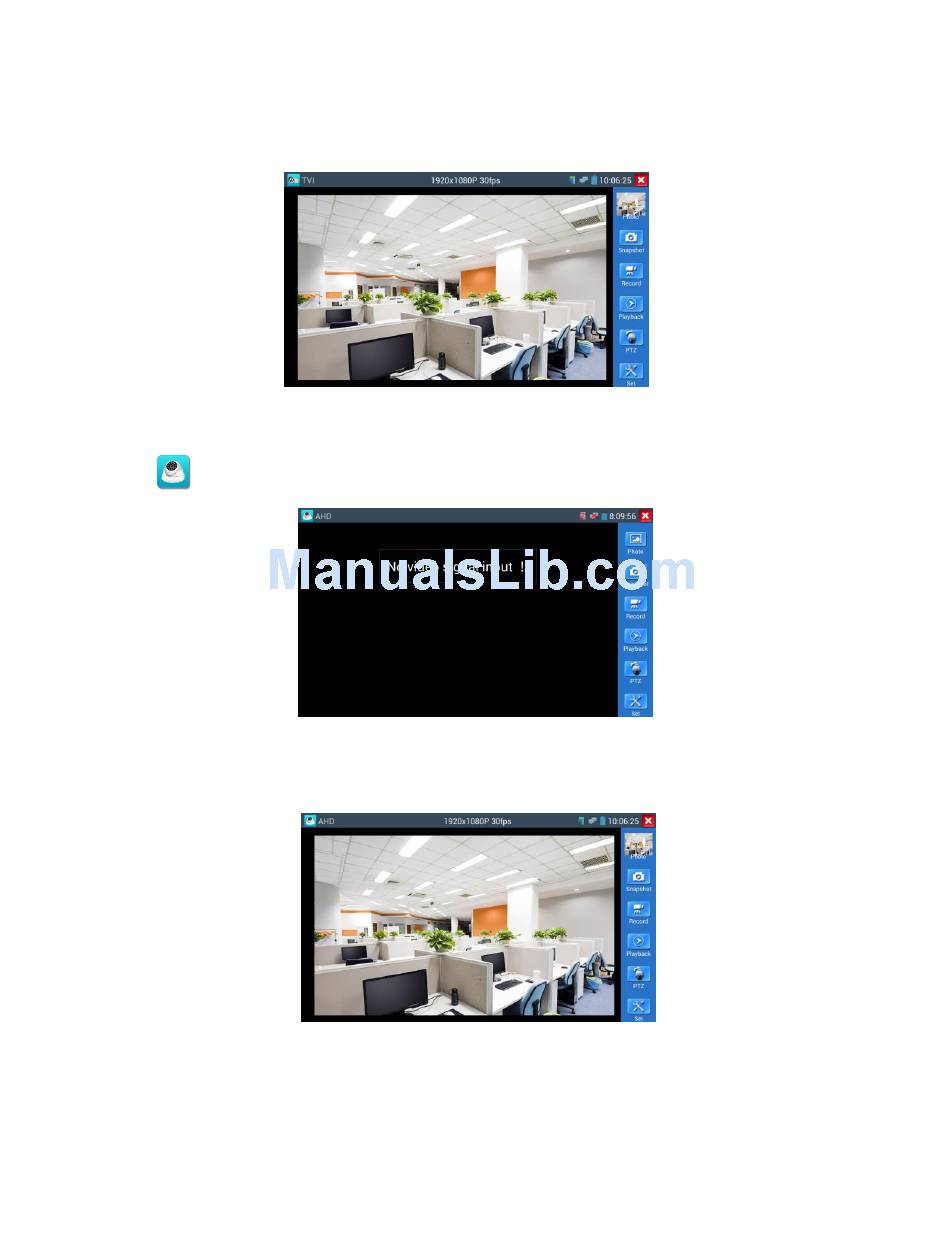

Plug your TVI camera into the "TVI IN" BNC input at the top of the meter and the tester will automatically display the image resolution at the
top of the screen. You may double tap on the screen to make the image display full screen. Double tap again to exit full screen mode.
The meter supports the following TVI resolutions: 1280x720 @ 25/30/50/60 FPS & 1920x1080 @ 25/30/50/60 FPS.
For more information of operation of PTZ control, settings, snapshot, record and playback, please refer to the CVI section on page 16.

3.3.5 AHD camera test

Click on the icon to enter the HD TVI camera tester & PTZ controller.
Plug your AHD camera into the "AHD IN" BNC input at the top of the meter and the tester will automatically display the image resolution at the
top of the screen. You may double tap on the screen to make the image display full screen. Double tap again to exit full screen mode.
The meter supports the following AHD resolutions: 1280x720 @ 25/30 FPS & 1920x1080 @ 25/30 FPS.
For PTZ control settings, click on the PTZ icon on the bottom right of the screen. This is where you can switch between RS485 PTZ control or
Coax PTZ control, if your camera supports it. UTC stands for Up The Coax and is standard for most HD over Coax cameras.
