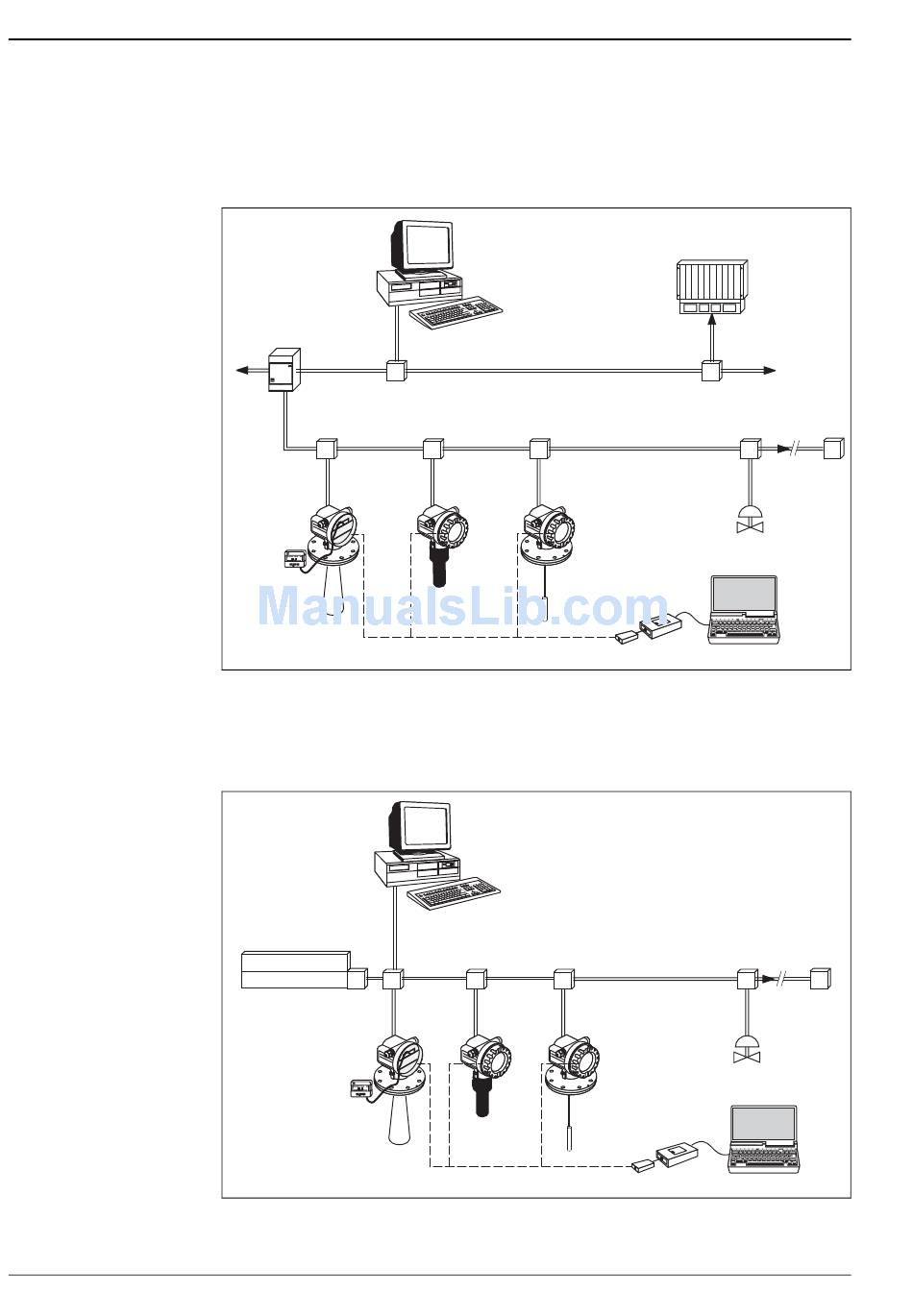

System integration via PROFIBUS PA
Maximum 32 transmitters (depending on the segment coupler, 10 in the Ex ia IIC hazardous area according
to the FISCO Model) can be connected to the bus. The Bus voltage is supplied by the segment coupler. Both
local and remote operation are possible.
The complete measuring system consists of:
Segment coupler
ENDRESS + HAUSER
PROFIBUS PA
Operating and
display module
VU331
ENDRESS + HAUSER
%
– + E
Micropilot M
System integration via FOUNDATION Fieldbus
Max. 32 transmitters (standard, Ex em or Ex d) can be connected to the bus. Intrinsically-safe operation
according to the FISCO model is also possible. Both local and remote operation are possible.
Power supply
Power conditioner T
operating and
display module
VU331
ENDRESS + HAUSER
%
– + E
Micropilot M
Personal computer e.g. with
ToF Tool - FieldTool
Package and
Profibard resp. Proficard
PROFIBUS DP
Prosonic M
Levelflex M
Personal computer
e.g. with
NI-FBUS configurator
FF link
Prosonic M
Levelflex M
Levelflex M FMP41C, FMP45
PLC
More
Functions
(valves etc)
FXA193
ToF Tool - FieldTool Package
L00-FMxxxxxx-14-00-06-en-001
Additional
functions
(valves etc.)
FXA193
ToF Tool - FieldTool Package
L00-FMxxxxxx-14-00-06-en-003
