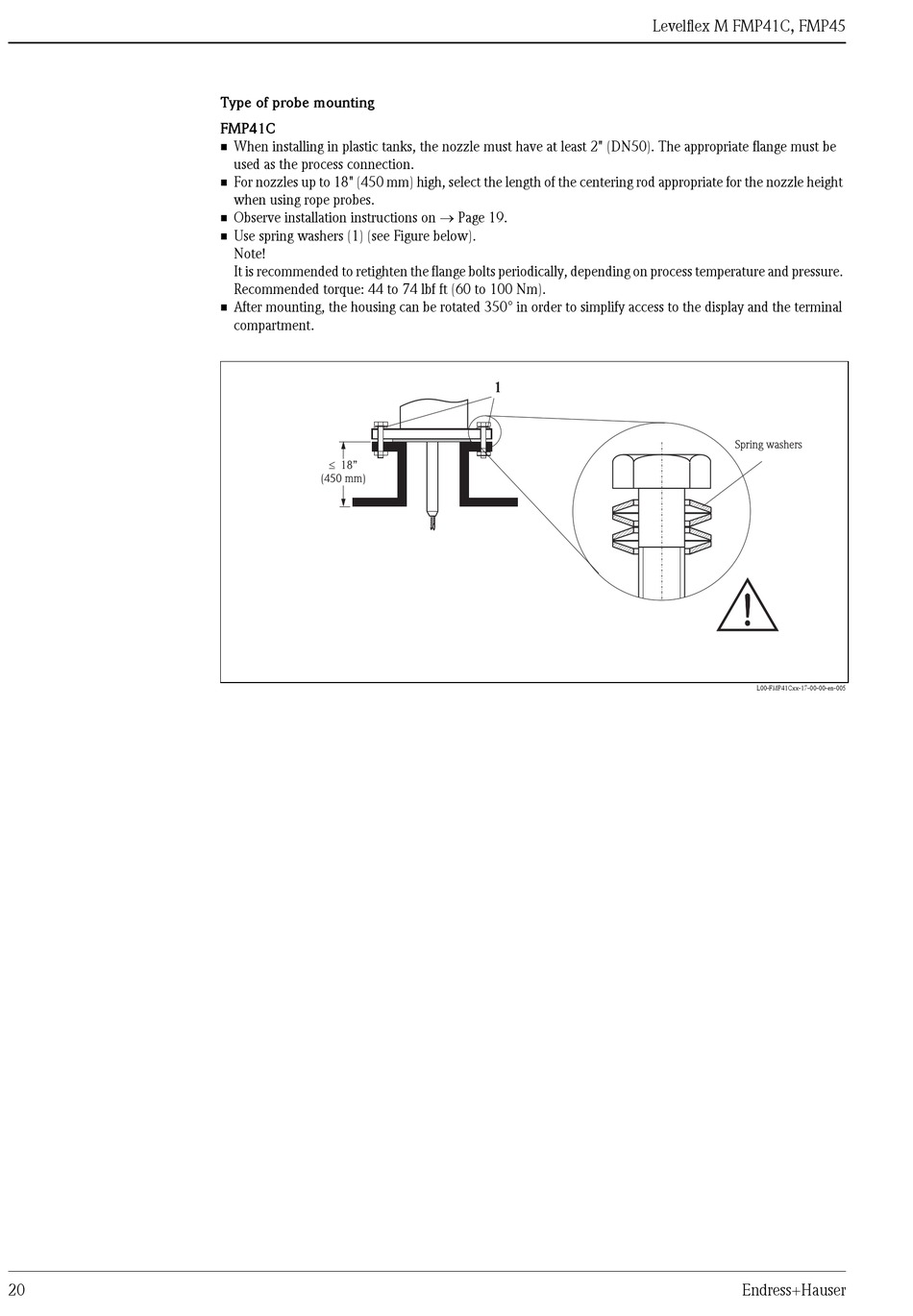

Type of probe mounting

FMP41C

• When installing in plastic tanks, the nozzle must have at least 2" (DN50). The appropriate flange must be

used as the process connection.

• For nozzles up to 18" (450 mm) high, select the length of the centering rod appropriate for the nozzle height

when using rope probes.

• Observe installation instructions on → Page 19.

• Use spring washers (1) (see Figure below).

Note!

It is recommended to retighten the flange bolts periodically, depending on process temperature and pressure.

Recommended torque: 44 to 74 lbf ft (60 to 100 Nm).

• After mounting, the housing can be rotated 350° in order to simplify access to the display and the terminal

compartment.

£ 18"

(450 mm)

Levelflex M FMP41C, FMP45

Spring washers

L00-FMP41Cxx-17-00-00-en-005
