Fieldbus plug connectors

14
FOUNDATION Fieldbus
The digital communication signal is transmitted to the
bus via a 2-wire connection. The bus also provides
the auxiliary energy.
For further information on the network structure and
earthing and for further bus system components such
as bus cables, see the relevant documentation, e.g.
Operating Instructions BA013S "FOUNDATION
Fieldbus Overview" and the FONDATION Fieldbus
Guideline.
Cable specification:
• Use a twisted, shielded two-wire cable, preferably
cable type A
Note!
For further information on the cable specifications, see Operating Instructions BA013S "FOUNDATION
Fieldbus Overview", FONDATION Fieldbus Guideline and IEC 61158-2 (MBP).
For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening
the housing.

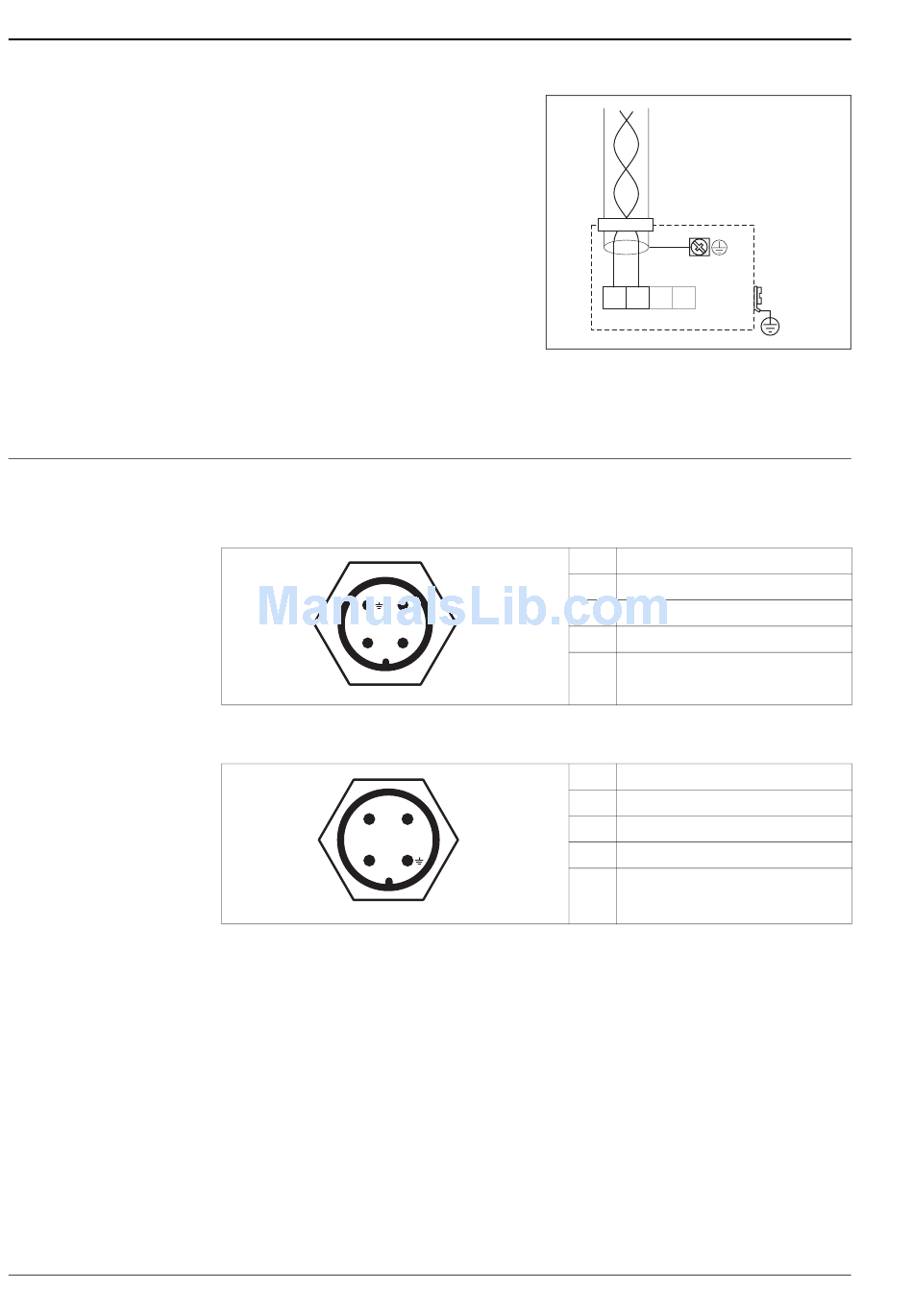

Pin assignment of the M12 plug connector (PROFIBUS PA plug)
1 3
+
2 4
Pin assignment of the 7/8" plug connector (FOUNDATION Fieldbus plug)
–
1 3
+
2
–
nc
L00-FMxxxxxx-04-00-00-yy-016
nc
4
L00-FMxxxxxx-04-00-00-yy-017
Levelflex M FMP41C, FMP45
1 2 3 4
– +
Pin Meaning
1 Ground
2 Signal +
3 Signal -
4 Not connected
Pin Meaning
1 Signal -
2 Signal +
3 Not connected
4 Ground
Plant
ground
L00-FMxxxxxx-04-00-00-en-022
