Levelflex M FMP41C, FMP45
Design, dimensions
Endress+Hauser
Mechanical construction

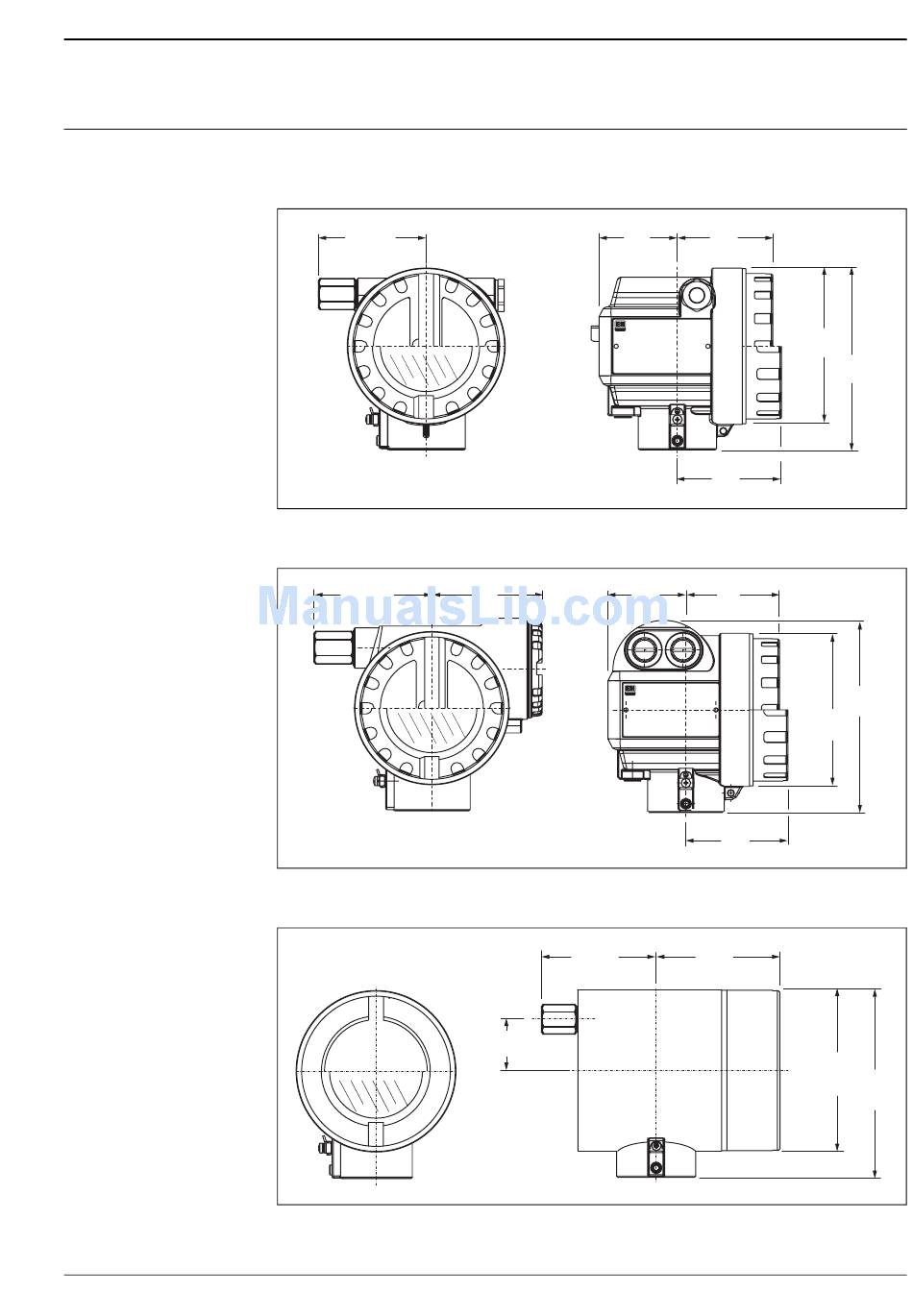

Housing dimensions
Dimensions for process connection and type of antenne → Page 30.
max. 4.33"
(110)
max. 3.94"
(100)
2.26"
(65)
ENDRESS+HAUSER
F12 housing
(Aluminum)
2.26"
3.70"
(94)
(65)
ENDRESS+HAUSER
T12 housing,
dual compartment
(aluminum)
max. 3.70"
(94)
1.57"
(40)
F23 housing
(316L SS)
3.07"
(78)
Ø 5.08"
(129)
5.91"
(150)
3.35"
(85)
L00-F12xxxx-06-00-00-en-001
3.07"
(78)
6.38"
(162)
Ø 5.08"
(129)
3.35"
(85)
L00-T12xxxx-06-00-00-en-001
4.10"
(104)
Ø 5.08"
(129)
5.91"
(150)
L00-F23xxxx-06-00-00-en-001
