Endress+Hauser Levelflex M FMP41C Technical Information page 21
Guided level-radar smart transmitter for continuous level measurement in liquids
Hide thumbs
Also See for Levelflex M FMP41C:
- Operating instructions manual (112 pages) ,
- Brief operating instructions (40 pages) ,
- Safety instructions (24 pages)
Table of Contents
Advertisement
Levelflex M FMP41C, FMP45
Endress+Hauser

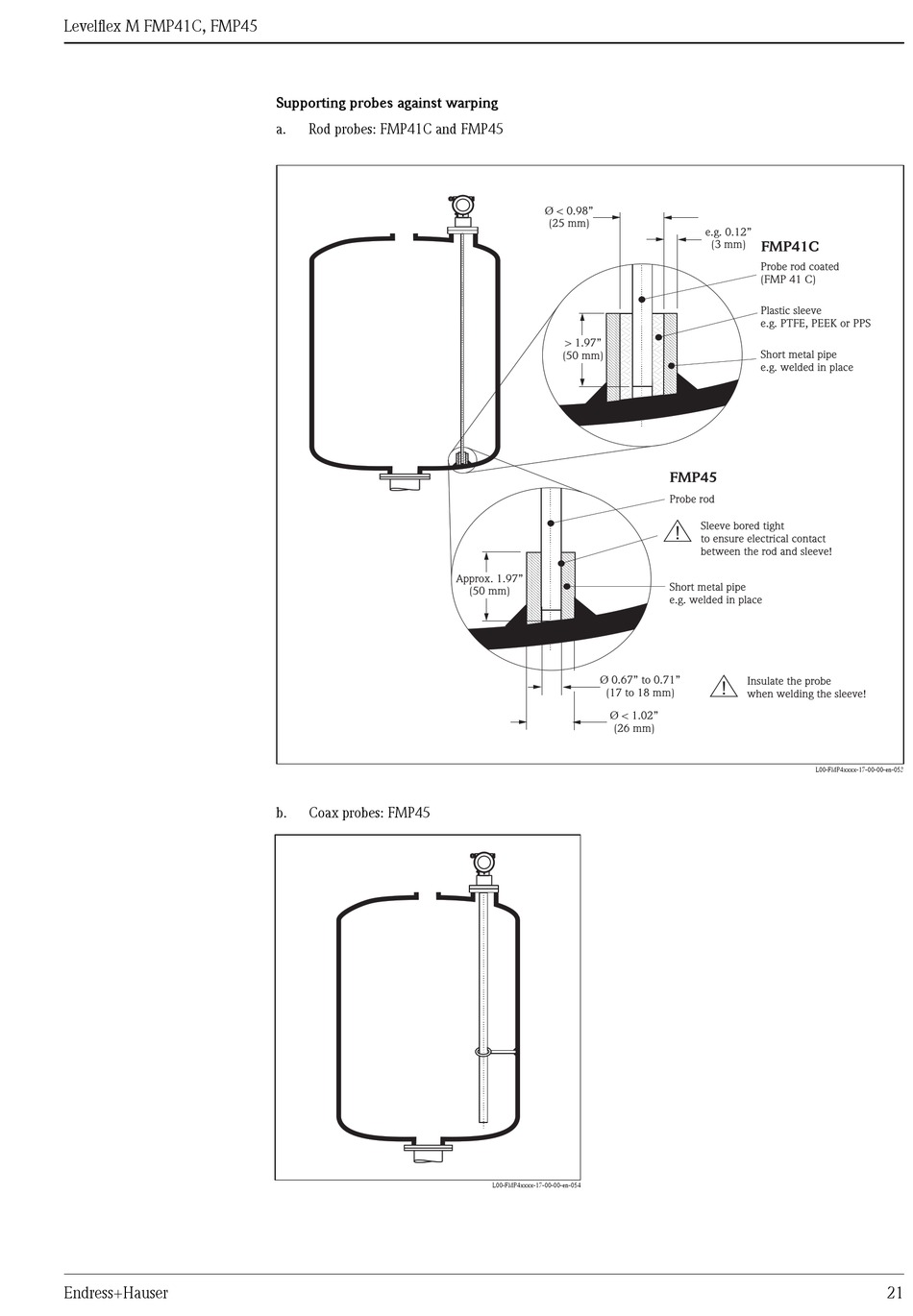

Supporting probes against warping
a.
Rod probes: FMP41C and FMP45
b.
Coax probes: FMP45
Ø < 0.98"
(25 mm)
> 1.97"
(50 mm)
Approx. 1.97"
(50 mm)
Ø 0.67" to 0.71"
(17 to 18 mm)
Ø < 1.02"
(26 mm)
L00-FMP4xxxx-17-00-00-en-054
e.g. 0.12"
(3 mm)
FMP41C
Probe rod c
oated
(FMP 41 C)
Plastic sleeve
e.g. PTFE, PEEK or PPS
Short metal pipe
e.g. welded in place
FMP45
Probe rod
#
Sleeve bored tight
to ensure electrical contact
between the rod and sleeve!
Short metal pipe
e.g. welded in place
#
Insulate the probe
when welding the sleeve!
L00-FMP4xxxx-17-00-00-en-053
