VQ Model TOMHAWK Instruction Manual page 6

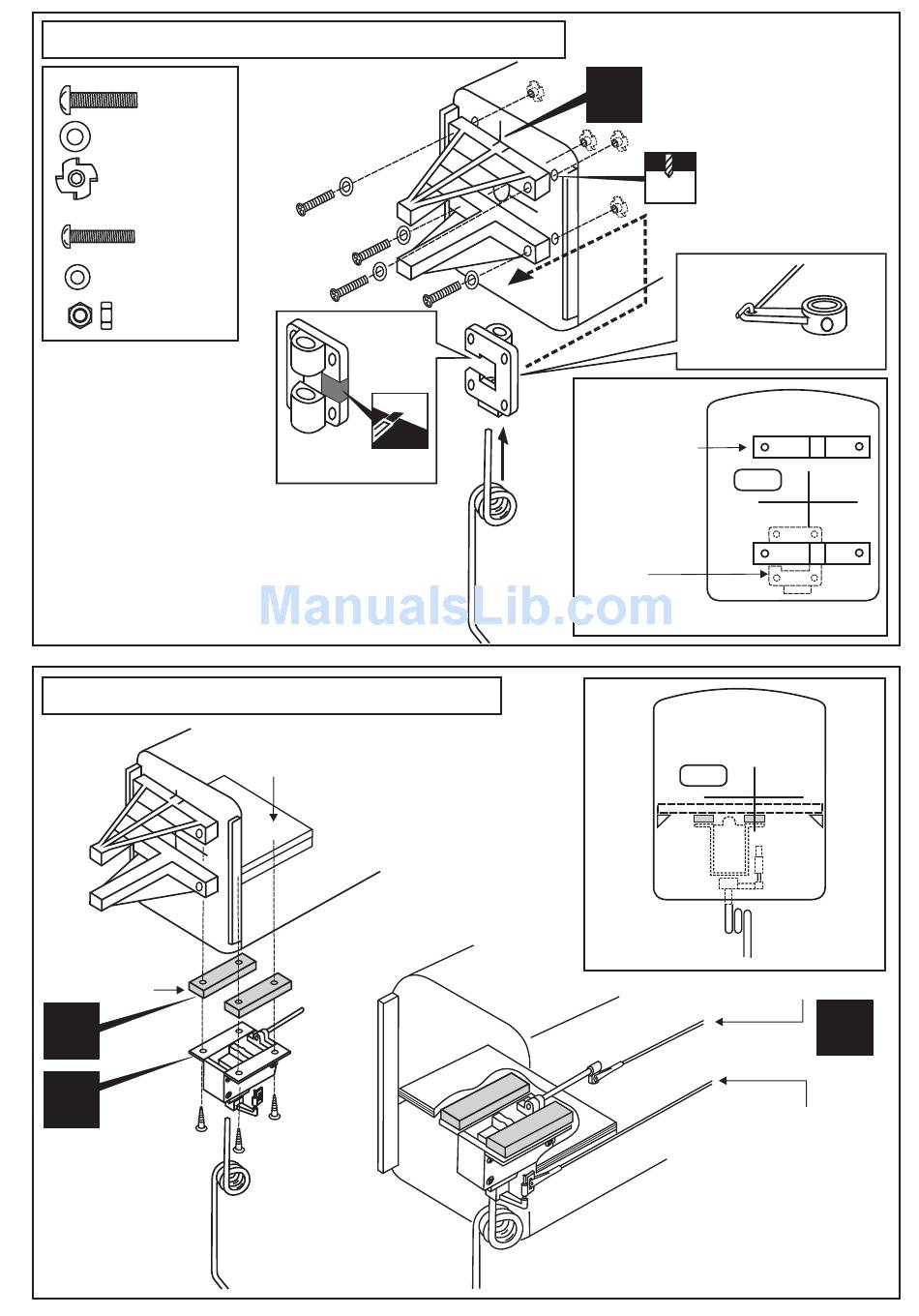

8- ENGINE MOUNT - NOSE GEAR MOUNT
4x15mm screw
................4
Washer.............4
Blind nut.......4
3x20mm screw
..............4
Washer............4
Nut.............4
1-Secure attach the engine
mount to the fire wall
using the four 4x25mm
screws
2-Cut away right side of
the nose gear mount as show.
3-Secure attach the nose gear mount to the
fire wall using the four 3x20mm screws.
4-Insert the Z-bend of nose gear pushrod
into the hole on the nose gear control horn.
5-Insert the nose gear control horn into the nose
gear mount.
6-Slide the nose gear into the nose gear mount.
9- NOSE RETRACT LANDING GEAR
1/4 in. (6mm)
thick plywood
X
X
! Engine thrust on balk head
is already adjust at factory
1
2
Nose gear
mount
Nose retract landing
gear mount
! Align the mark on both
!
mounts with the mark on
the fire wall
13/64"
5mm
3
Engine mount
6
Nose gear
mount
FRONT-VIEW
FRONT-VIEW
Link the pushrod with retract
arm servo
Link the pushrod with rudder
arm servo
4 - 5
Nose gear control horn
FIRE WALL
FIRE WALL
X
