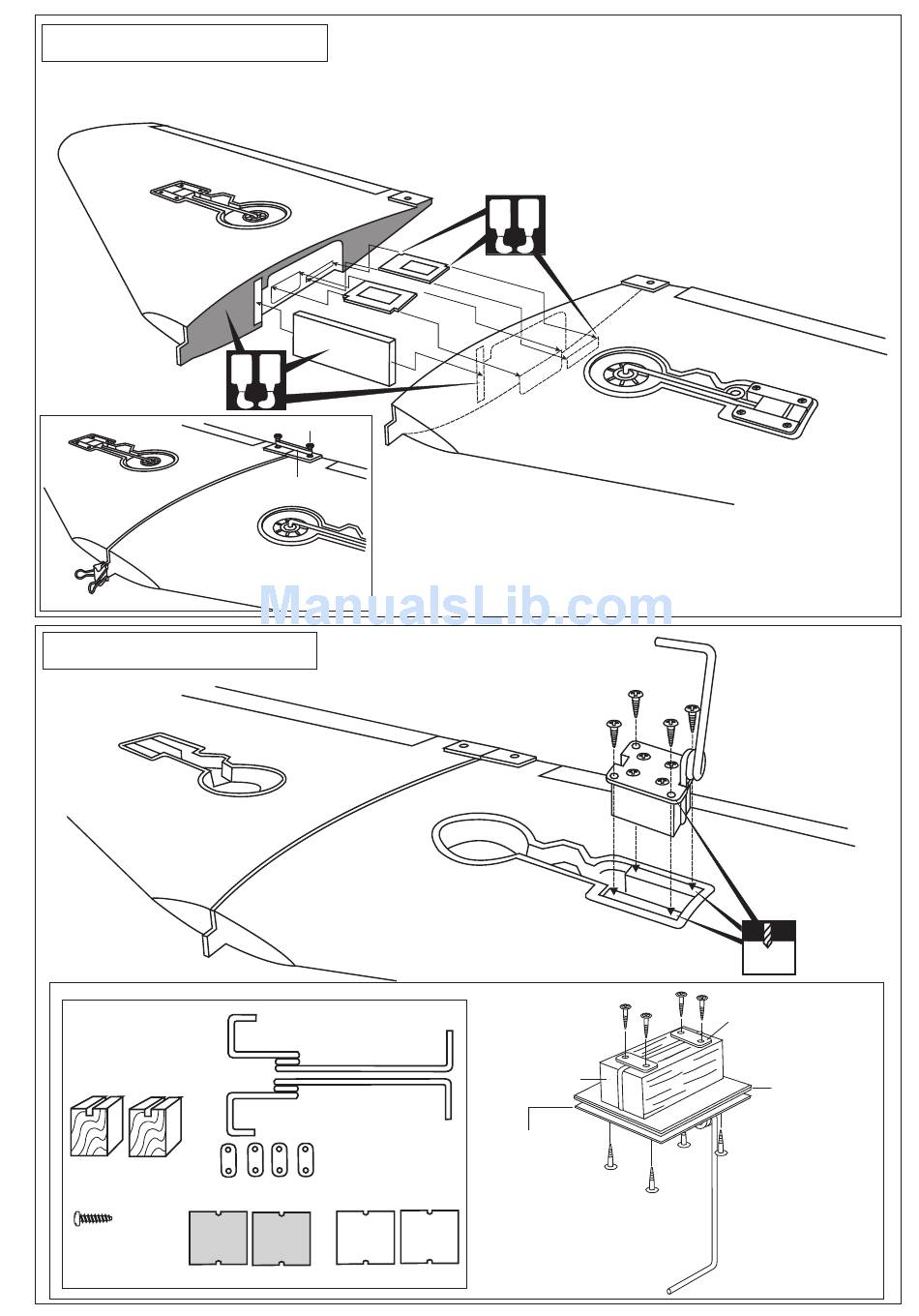

4- JOINING THE WING
BOTTOM VIEW
Binder clip
5- FIX GEAR
Gear mount
(hard wood)
3x10mm ....16
Ply gear mount plate
Trial fit each part before gluing . Be certain that there are no gaps.
If the parts will join, but with a gaps, sand or trim the parts a little at a time
until the parts meet exactly with no gaps.
When joining the wing halves it is extremely important to use plenty of epoxy
(30 minutes epoxy).
Carefully slide the wing halves together, ensuring that they are accurately
aligned, firmly press the two halves together, allowing the excess epoxy run
out. Clean off the excess epoxy.
1
A B
Nylon wing bolt
Rubber band
(both side)
WARNING!: Securely glue together, if coming of during flights,
you lose control of your plane which lead to accidents.
IMPORTANT: Please do not clean off the excess epoxy on the wing with
strong solvent or pure alcohol, only use kerosene to keep the colour of
BOTTOM VIEW
your model not fade.
Main gear (left)
Main gear (right)
Plastic strap
Square plastic
A B
3
2
3x10mm
self tapping screw
BOTTOM VIEW
3x10mm self
tapping screw
Gear mount
(hard wood)
Square plastic
3x12mm self
tapping screw
(1)
Plywood brace
(2)
Retract servo tray
Aileron servo tray
(3)
5/64"
2mm
Plastic strap
Ply gear mount
plate
Main landing gear
