Installing The Linkages - VQ Model TOMHAWK Instruction Manual

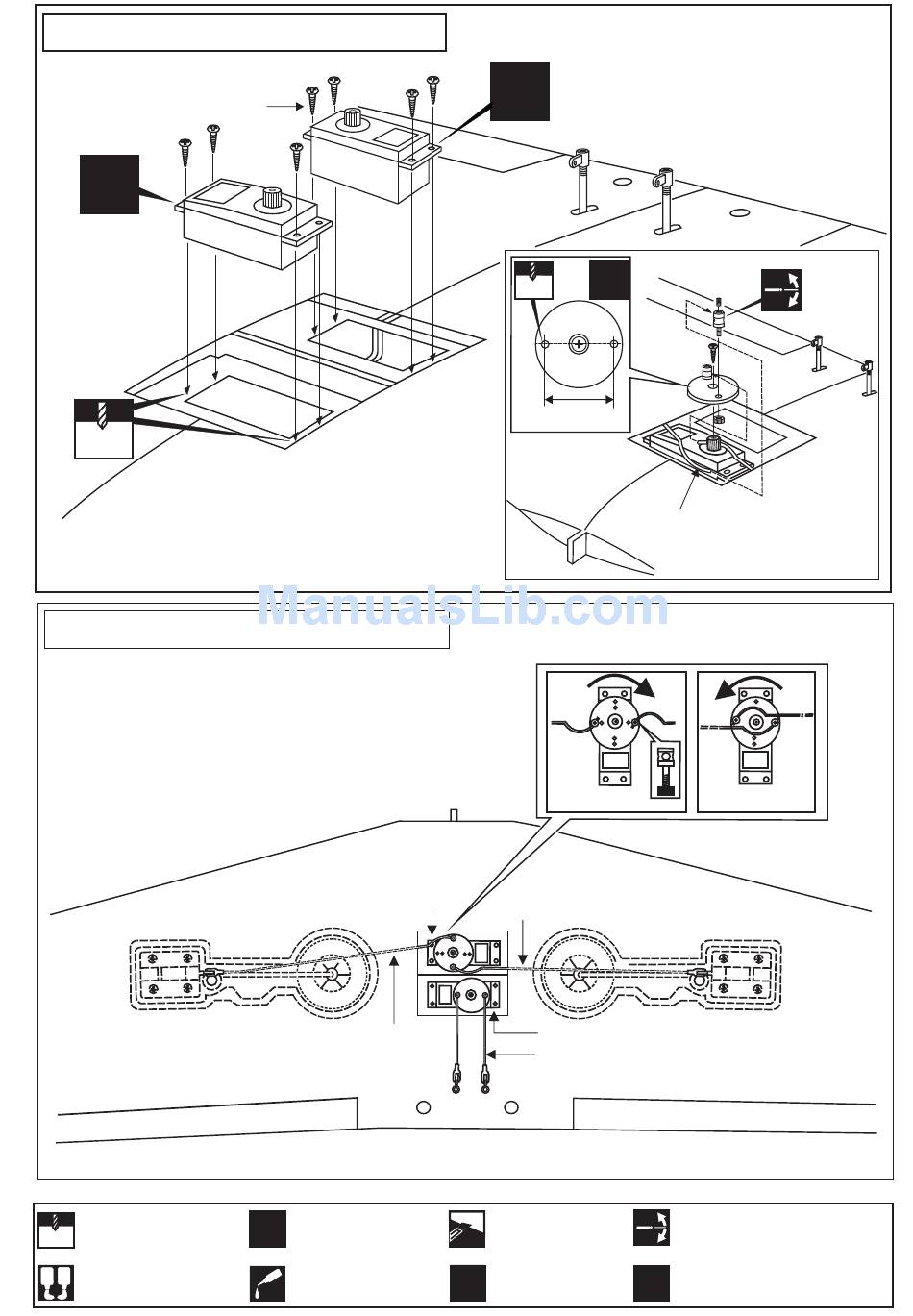

6- RETRACT - AILERON SERVO
Included with the radio set
X
Retract servo
1.5mm
Link the retract push rod to the retract servo.
Be sure to adjust the stroke so that the landing
gear locks in both up and down position.

7- INSTALLING THE LINKAGES

With the retract and retract servo in the retracted position,
mark the position where each of the pushrod will attach to
the servo arm, a small piece of masking tape works well
for this. Cut off the excess length each rod.
Retract gear
Drill holes using the stated
size of drill
1.5mm
(in this case 1.5 mm Ø)
A B
Use epoxy glue
Retract servo
Retract Push rod
WING - TOP VIEW
!
Take particular care here
Apply cyano glue
CA
Aileron servo
X
WING - TOP VIEW
X
2 mm
20 ~ 24mm
Retract servo
RETRACTED
Retract Push rod
Aileron servo
Aileron Push rod
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
Retract Push rod
EXTENDED
Retract gear
Check during assembly that these
parts move freely, without binding
Not included.
X These parts must be
purchased separately
