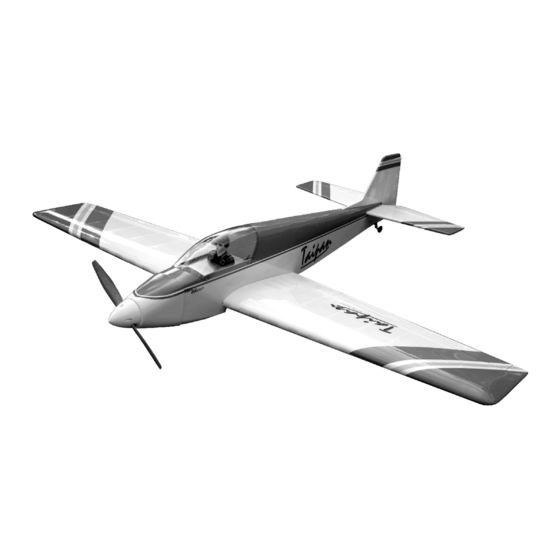

VQ Model Taipan Instruction Manual

Radio control model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

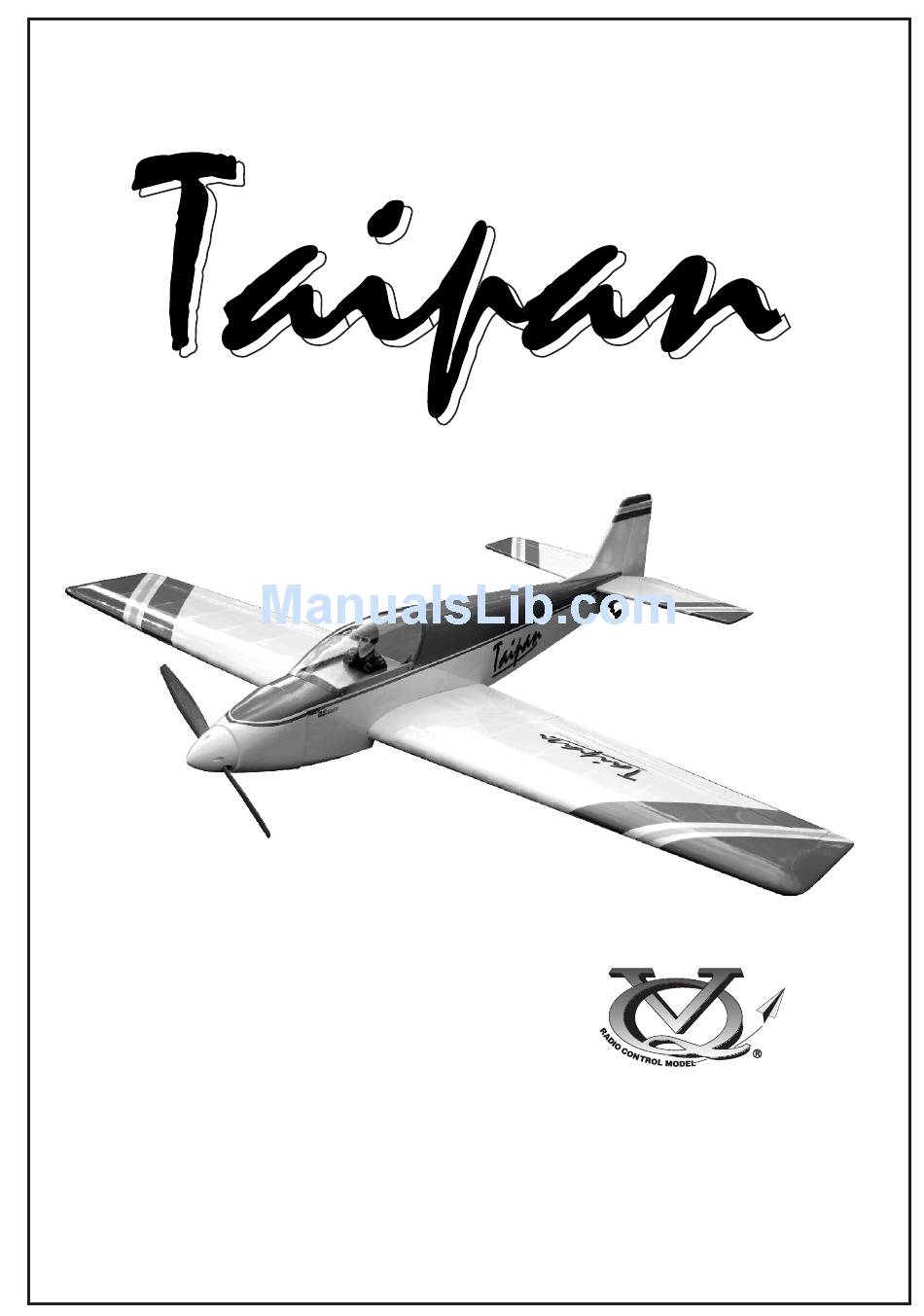

Radio control model / RC Flugmodel
INSTRUCTION MANUAL / MONTAGEANLEITUNG
SPECIFICATIONS
Wingspan
Length
Electric Motor
Glow Engine
Radio
5 Channel / 6 Servos
TECHNISCHE DATEN
Spannweiter
Lange
Elektroantrieb
Verbrennerantrieb
Fernsteuerung
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
68.1 in.
55.5 in.
800 Watt
.60 2T / .90cc 4T
1570mm
1410mm
800 Watt
10cc 2T / 15cc 4T
5 Kanal / 6 Servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Taipan and is the answer not in the manual?

Questions and answers

Related Manuals for VQ Model Taipan

Summary of Contents for VQ Model Taipan

  • Page 1 Radio control model / RC Flugmodel INSTRUCTION MANUAL / MONTAGEANLEITUNG SPECIFICATIONS Wingspan 68.1 in. Length 55.5 in. Electric Motor 800 Watt Glow Engine .60 2T / .90cc 4T Radio 5 Channel / 6 Servos TECHNISCHE DATEN Spannweiter 1570mm Lange 1410mm Elektroantrieb 800 Watt Verbrennerantrieb...
  • Page 2 REQUIRED ITEMS / Zum Betrieb wird benotigt Extension for aileron 12x6 for .60 - 2 cycle engine servo, retract servo. 12x7 for .90 - 4 cycle engine 13x8 for Brushless Motor 60A Brushless ESC 60A Brushless Regler Retract landing gear VQAR08 Retract servo Minimum 5 channel radio 870Watt Brushless...

  • Page 3: Joining The Wing

    1-Aileron extension cord installation 30cm Extension cord Thread (pre-installed at factory) WING BOTTOM-VIEW Using the thread (pre-installed at factory) to slide the aileron extension cord into the wing half. Using the adhesive tape to secure the one end of the aileron extension cord in place.
  • Page 4 3- Joinning the wing Glue WING TOP-VIEW Wing joiner Wing half Glue must go inside ! Make sure to glue securely, If not properly glued, a failure in flight may occur. 30 min. Epoxy Carefully slide the wing halves together, ensuring that they are accurately aligned.

  • Page 5: Retract Servo

    6- Retract servo Install the retract servo onto the retract servo mount and secure it in place with four screw (included with radio set). Retract servo RETRACT SERVO INSTALLATION Note: The head of servo should be positioned toward the rear of the wing. Retract servo CENTER WING...

  • Page 6: Fixed Gear

    3x20mm 8- Fixed gear Nylon gear 3x12mm screw Main landing gear strap ..8 3x20mm screw ..16 Gear mount Nylon gear strap ..4 Gear mount x 2 3x20mm screw Ply gear mount flat Ply gear mount Square plate x 2 plastic 3x20mm Square plastic x 2 Wing - bottom view...

  • Page 7: Aileron Linkage

    11- Aileron linkage 2mm screw Aileron pushrod Linkage stopper BOTTOM VIEW Aileron servo ..2 Trial fit each part before gluing . Be certain that there are 12- Stabilizer no gaps. If the parts will join, but with a gaps, sand or trim the parts a little at a time until the parts meet exactly with no gaps.

  • Page 8: Tail Wheel

    13- Linkages Ansicht von unten Bottom view / Rudder servo Seitenruderservo Throttle servo Drosselservo Elevator servo Hohenruderservo Rod adjuster ..4 Elevator servo mount 2mm screw ..2 Elevator servo Hohenruderservo ..2 .....1 0.4x2.4m Elevator servo mount (3mm plywood) 2x8mm collar .....4 170x2mm push rod 14- Tail wheel Bottom view...

  • Page 9: Engine Mount

    15- Engine mount 4x25mm screw ..4 ! Align the mark on both mounts Blind-nut with the mark on the fuselage ....4 ! Engine thrust on balk head FRONT-VIEW is already adjust at factory B’ FRONT-VIEW B=B’ 16- Fuel tank Blow Water To muffler Checking for leaks - block the...
  • Page 10 17- Cowling 1~2mm 2.x5mm..4 Adhesive tape Attach the board or transparent plastic on the side of Board the fuselage with the adhesive tape as show. Using a pencil or felt tipped pen trace around the engine head where it meet the cowl. Cut the opening the board or transparent plastic for the engine head as marked above.

  • Page 11: Electric Motor

    18- Electric Motor Using a aluminum motor mounting plate as a template, mark the plywood motor mounting plate where the four holes are to be drilled (2). Remove the aluminum motor mounting plate and drill a 1/8”(3mm) hole through the plywood at each of the four marks marked .

  • Page 12: Control Surface

    20- Installation the wing Nylon bolt 6x50mm 6X50mm bolt ...2 21- Balance Der Schwerpunkt sollte zwischen 88 mm und 92 mm hinter der Nasenleiste liegen. Für die ersten Flüge empfiehlt es sich, den Schwerpunkt an den vorderen angegebenen Punkt zu legen. Falls erforderlich muss dies durch Ankleben von Blei erreicht werden.
