VQ Model TOMHAWK Instruction Manual page 2

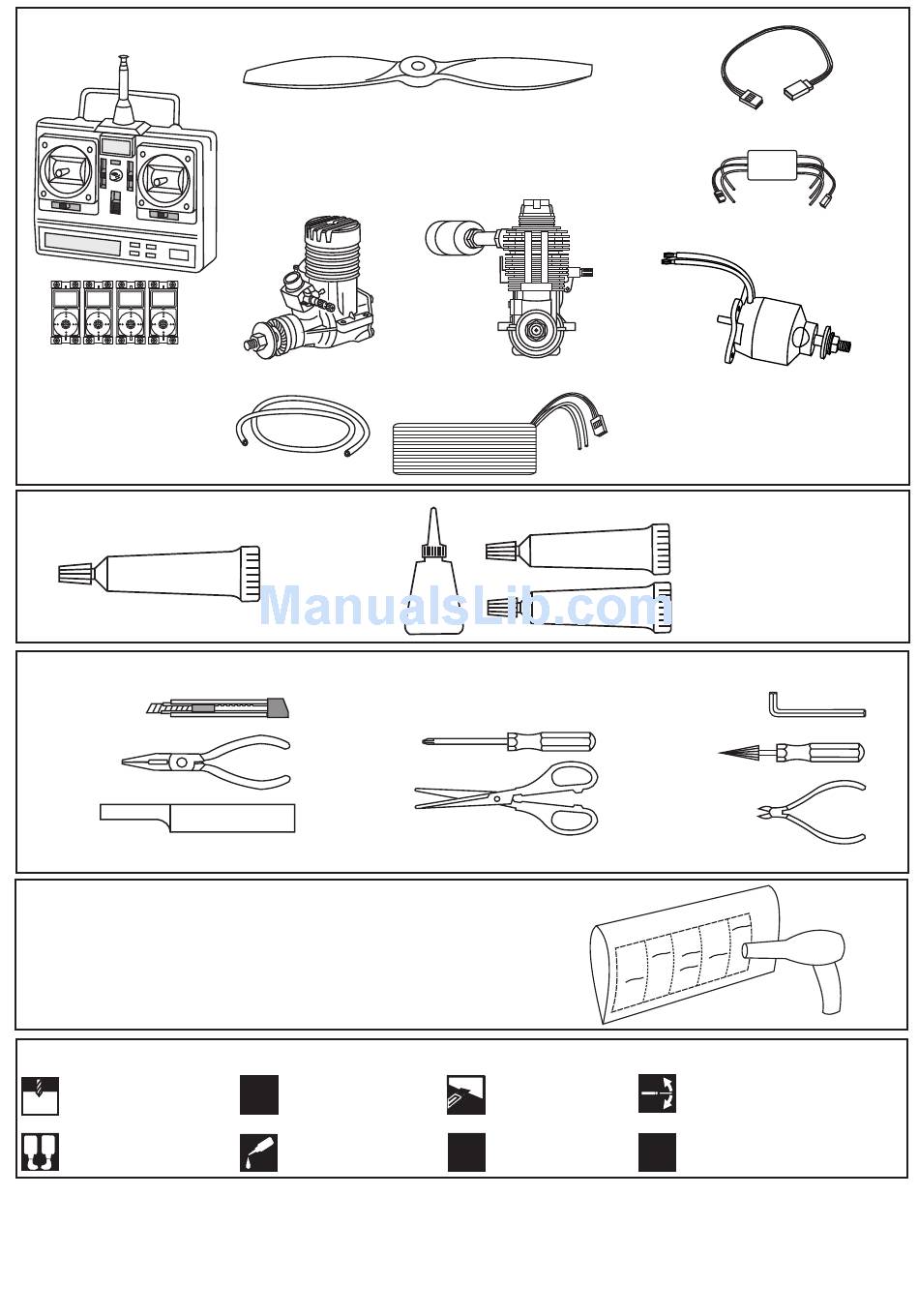

REQUIRED FOR OPERATION (Purchase separately)
Minimum 4 channel radio
for airplane with 4 servos
.Motor control x1 .Aileron x1
.Elevator x1 .Rudder x1
GLUE (Purchase separately)
SILICON
Silicon sealer
TOLLS REQUIRED
Hobby knife
Needle nose Pliers
Sander
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
.........................................................
Masking tape - Straight Edged Ruler - Pen or pencil - Rubbing alcohol - Drill and Assorted Drill Bits
The pre-covered film on ARF kit may wrinkle due to variations
of temperature. Smooth out as explained right.
* Use an iron or heat gun. Start as low setting. Increase the
setting if necsessary. If it is too high, you may damage the
film
Symbols used throughout this instruction manual, comprise:
Drill holes using the stated
size of drill
1.5mm
(in this case 1.5 mm Ø)
A B
Use epoxy glue
Read through the manual before you begin, so you will have an overall idea of what to do.
CONVERSION TABLE
3.0mm = 1/8"
1.0mm = 3/64"
4.0mm = 5/32"
1.5mm = 1/16"
5.0mm = 13/64"
2.0mm = 5/64"
6.0mm = 15/64"
2.5mm = 3/32"
10.5x6 for .40 - 2 cycle engine
11x6 for .46
12x6 for .60
12x7 for .70
13x6 for Quantum 4120/05
.46 ~ .50 - 2 cycle
Silicone tube
Cyanoacrylate
Glue
(Purchase separately)
Phillip screw driver
Scissors
!
Take particular care here
Apply cyano glue
CA
10mm = 13/32"
12mm = 15/32"
15mm = 19/32"
20mm = 51/64"
- 2 cycle engine
- 4 cycle engine
- 4 cycle engine
.60 ~.70 - 4 cycle
Li-Po Battery, 14.8V, 4000mAH, 80A
EPOXY A
CA
EPOXY B
Hatched-in areas:
remove covering
film carefully
Assemble left and right
L/R
sides the same way.
25mm = 1"
30mm = 1-3/16"
45mm = 1-51/64"
Extension for aileron
servo, retract servo.
Phoenix-60 Brushless
Motor Control
Quantum 4120/05
Brushless Motor
or equivalent.
Epoxy Glue ( 5 minute type)
Epoxy Glue (30 minute type)
Hex Wrench
Awl
Wire Cutters
Check during assembly that these
parts move freely, without binding
Not included.
These parts must be
X
purchased separately
