11.2 Supply the Electronic Board

The CD3200 thyristor unit, to work, requires a voltage supply for the electronic boards. The Max
consumption is 10VA.
The voltage supply for the electronic boards is configured in line with customer requirements that are
defined in the Order Code. The Order Code is written on the identification label.
Warning: Before connecting or disconnecting the unit check that power and control cables
are isolated from voltage sources.
Terminal
16
17
18

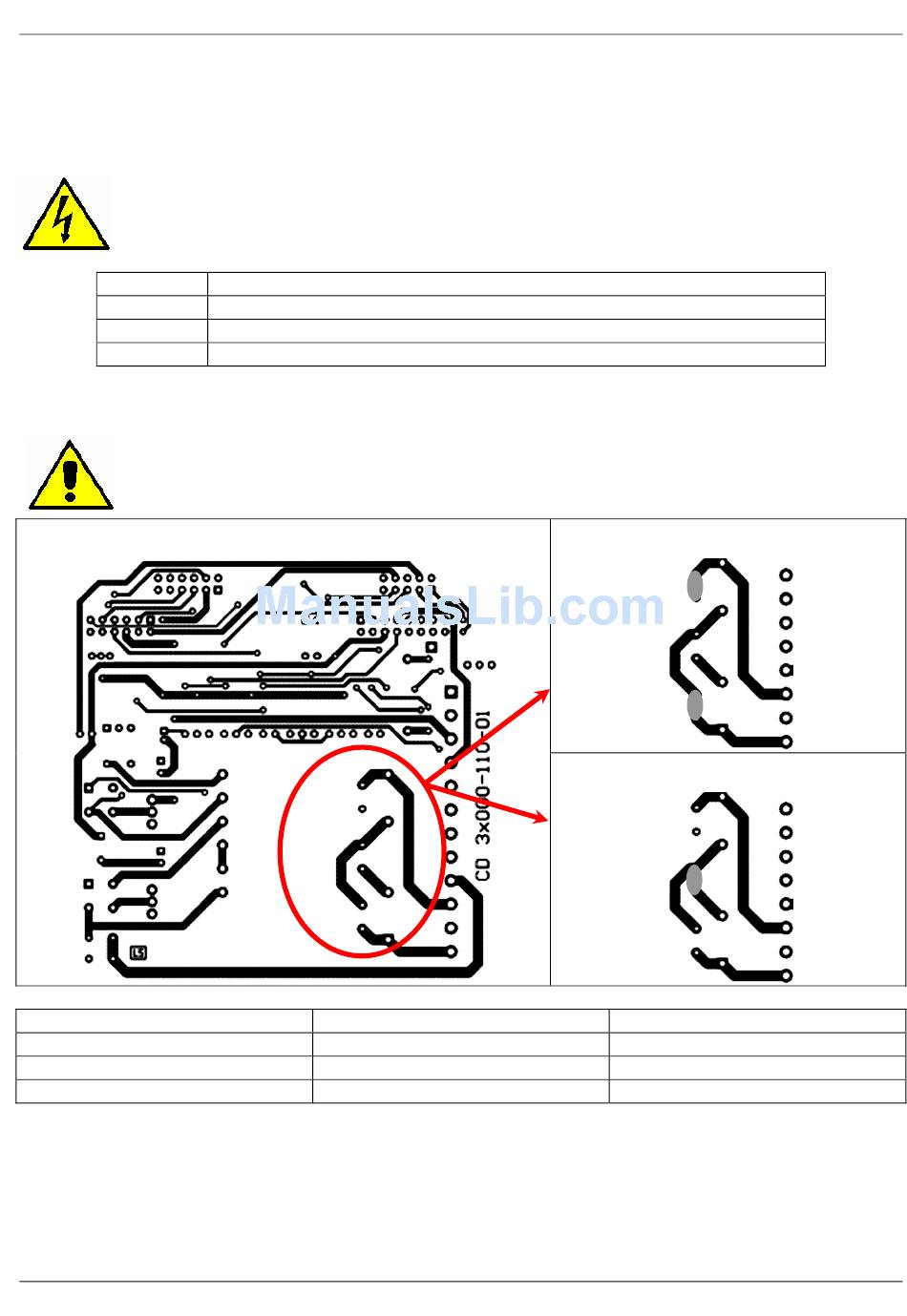

To change auxiliary supply voltage sold the correct link-jumper on main PCB:
Warning: this procedure can be done just by specialized personnel.
Transformer Type
TR-605 120V
TR-605 230V
TR-605 300V
• The type of mounted transformer depends of the chosen Auxiliary Voltage in the order code.
(see par. 5.2)
• If the Auxiliary Voltage (written on the identification label) is different from Supply Voltage (to the
load), use an external transformer with primary equal to load voltage and secondary equal to the
Auxiliary Voltage.
CD3200-1PH from 15A to 110A
Voltage Supply for Electronic Boards (Auxiliary Voltage)
Earth
Voltage Supply for Electronic Boards (Auxiliary Voltage)
Main PCB
J9
J10
J11
Link-Jumper J9+J11
Description
90:130V
170:265V
230:345V
29
User's Manual
Link-Jumper J9+J11
J9
J10
J11
Link-Jumper J9+J11
J9
J10
J11
Link-Jumper J10
-
300:530V
510:690V
