11.8 Address configuration
The thyristor unit is assigned a unique device address by the user in the range 1 (default) to
255. This address is used to recognise the messages queries to her assigned.
The thyristor unit does not respond at the messages queries that don't have the same assigned address.
The thyristor unit will also accept global messages (Broadcast) sends at the address 0. No responses are
returned for globally addressed queries.

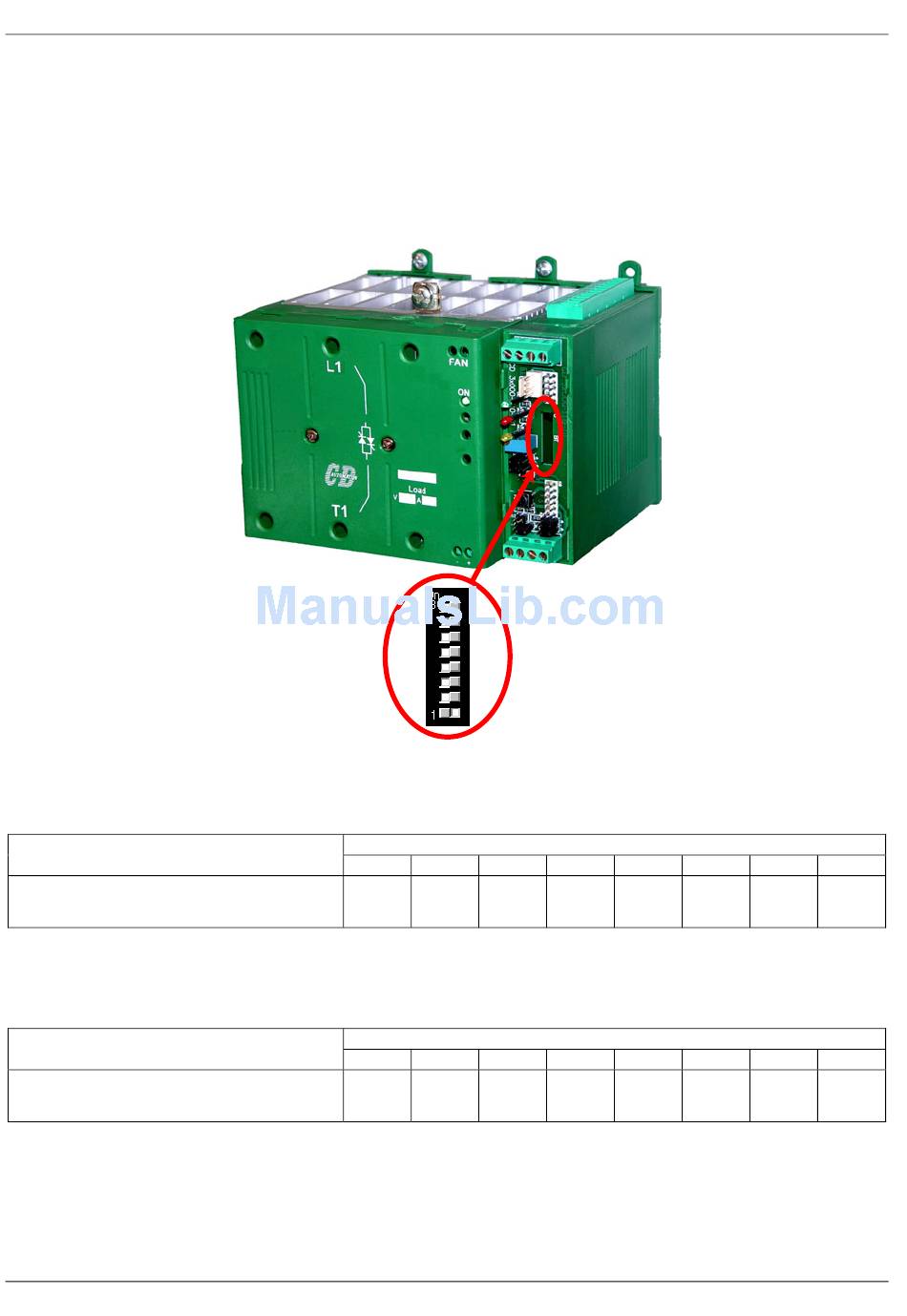

To configure communication address remove cover and set the dip-switch as below specified:
Convert the Address Number in Binary for Example:
The dip switch number corresponds to the bit number:
Address Number
150 Dec -> 10010110 Bin
For convert the Number in Binary you can use this method:
Dip Switch Number have this value:
Value
The Address Number Ex. 150 = 128(Dip 8) + 16(Dip 5) + 4(Dip 3) + 2(Dip2)
CD3200-1PH from 15A to 110A
Dip Switch
150 Dec = 10010110 Bin
8
7
1
0
(On)
(Off)
(Off)
8
7
128
64
36
Dip Switch Number
6
5
4
0
1
0
(On)
(Off)
Dip Switch Number
6
5
4
32
16
8
User's Manual
3
2
1
1
1
0
(On)
(On)
(Off)
3
2
1
4
2
1
