Checking LED Activity

AP200 Status LEDs

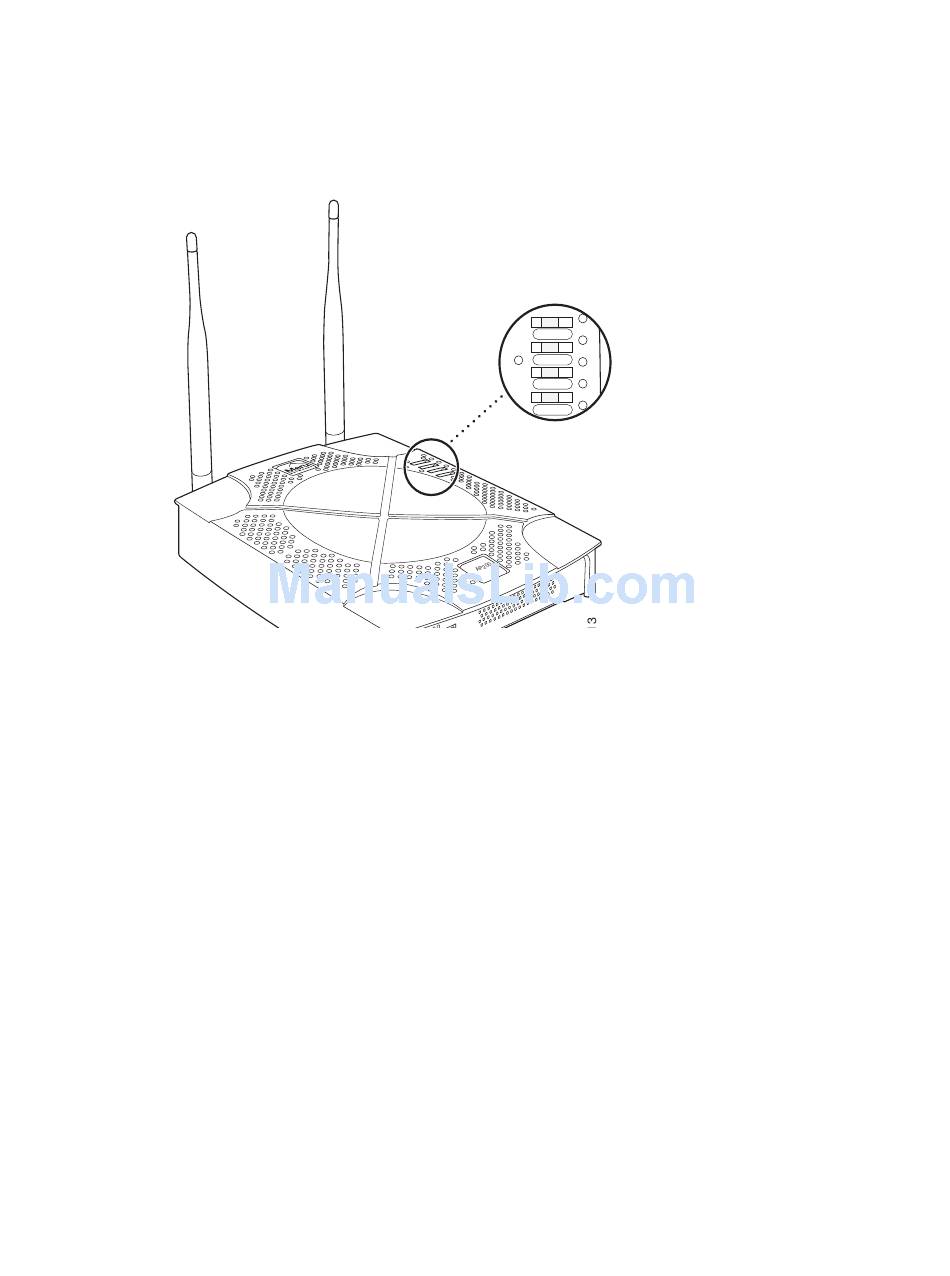

Four status LEDs on the face of the AP200 also light, as shown in
.
Figure 15: AP200 Status LEDs
The functions of the status LEDs are described in
When the AP200 is first connected to the controller and any time the access point is rebooted there-
after, the AP initializes with and then is programmed by the controller. When the AP is first powered
up, all LEDs are green. Thereafter, the Status LED (see
states
20 Meru Access Point Installation Guide
(Table 4).
Figure 15.
RF2
RF1
STATUS
POWER
Table 4.
Figure 15) color reflects the various operating
