AP150 Status LEDs

Four status LEDs on the face of the AP150 also light, as shown in
.

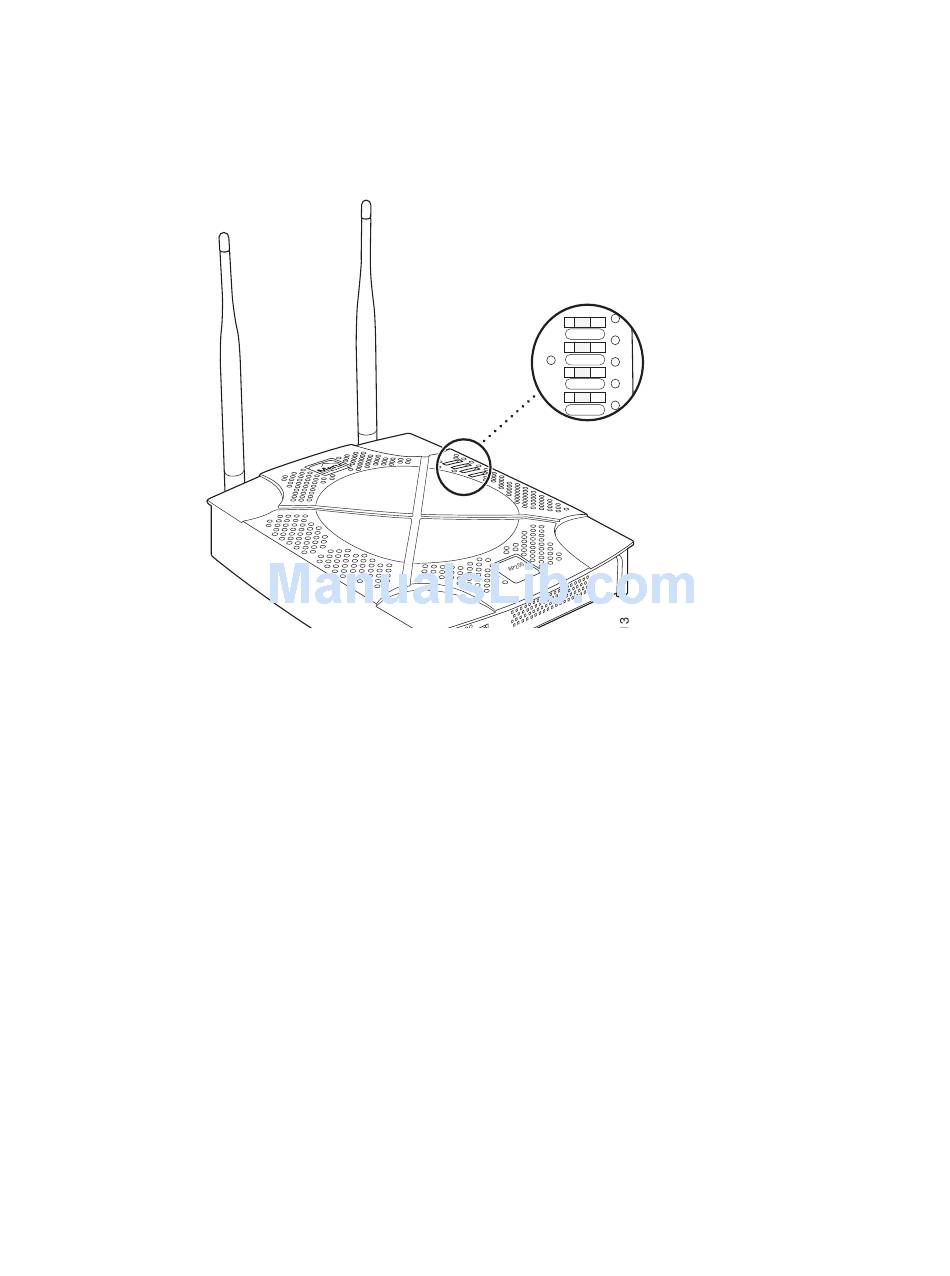

Figure 27: AP150 Status LEDs
The functions of the status LEDs are described in
When the AP150 is first connected to the controller and any time the access point is rebooted there-
after, the AP initializes with and then is programmed by the controller. When the AP is first powered
up, all LEDs are green. Thereafter, the Status LED (see
states (Table 8).
Checking LED Activity
Figure 27.
RF2
RF1
STATUS
POWER
Table 8.
Figure 27) color reflects the various operating
Installing the AP150 39
