eBOX670-891-FL Series user's Manual

2.3 Installation of SO-DIMM

Step 1 Turn off the system and unplug the power cord.

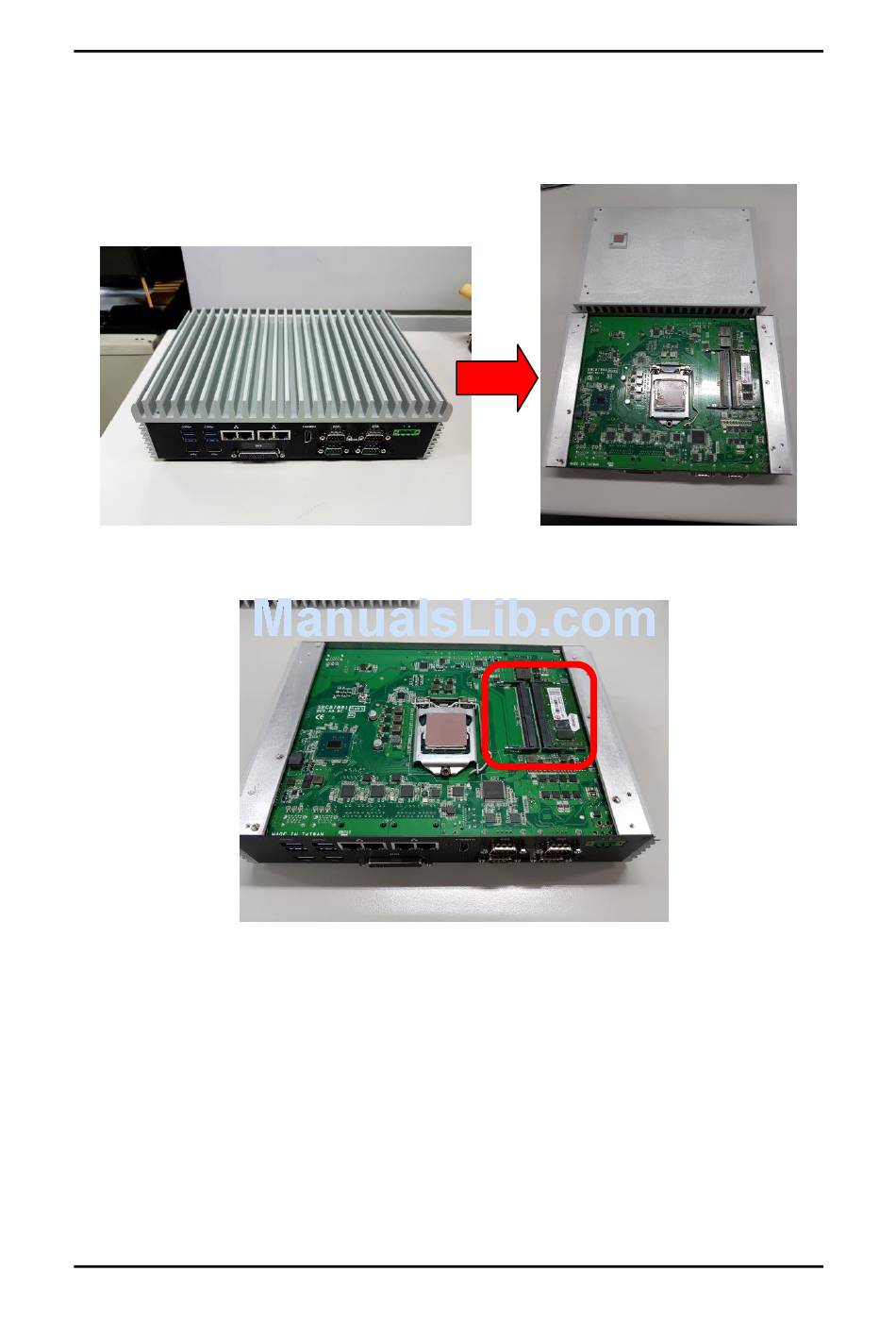

Step 2 Four screws on the top heatsink are used to fasten the heatsink to the
chassis.
Step 3 Located the dual SO-DIMM sockets on main board.
14
Hardware Installation
