eBOX670-891-FL Series user's Manual
2.6 Installation of Flexible I/O Modules
The eBOX670-891 provides an optional window for customer add flexible I/O
modules, according to different modules , please refer to quick manual
-LAN Module (RJ45*1)
-DIO Module (DB9*1)
-CAN Bus/CAN Open Module (DB9*2)
-USB Module (USB*1)

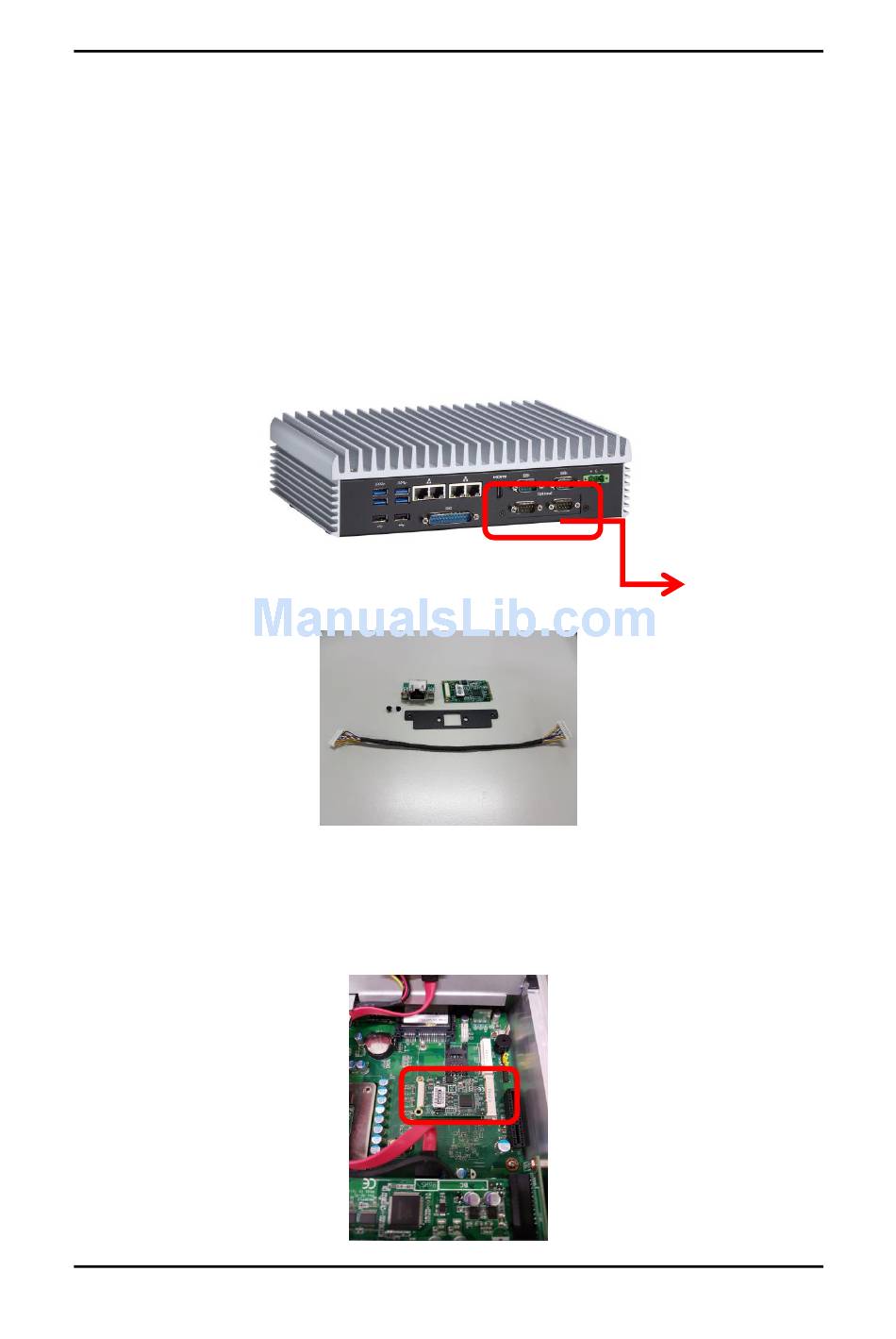

Steps 1 Prepare the LAN module kit.
Step 2 Turn off the system and unplug the power cord.
Step 3 Open the bottom cover.
Step 4 Insert the LAN mini PCIe card.
18
Optional W indow
(Default: 2 x COM)
Hardware Installation
