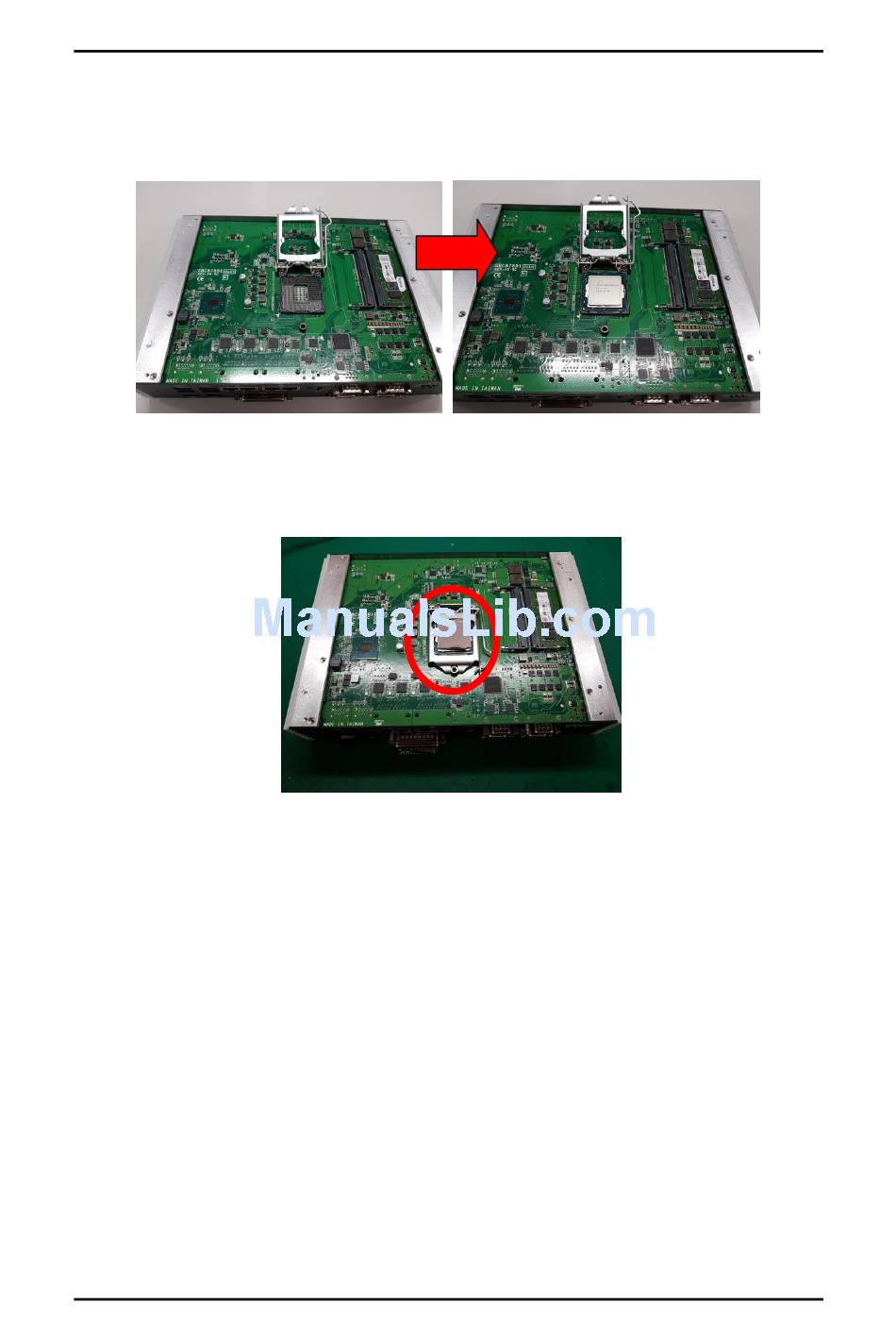

Step 5 Align pins of the CPU with pin holes of the socket. Be careful of the
CPU's orientation that user's need to align the arrow mark on the CPU
with the arrow key on the socket.
Step 6 Paste the thermal pad on top of the processor with caution, and then
remove protection film.
Step 7
Put the top cover and fasten four screws back onto the system.
Hardware Installation
eBOX670-891-FL Series user's Manual
