High Availability Feature Guide for EX9200 Switches
Router CE1
88
}
}
}
}
routing-options {
graceful-restart;
}

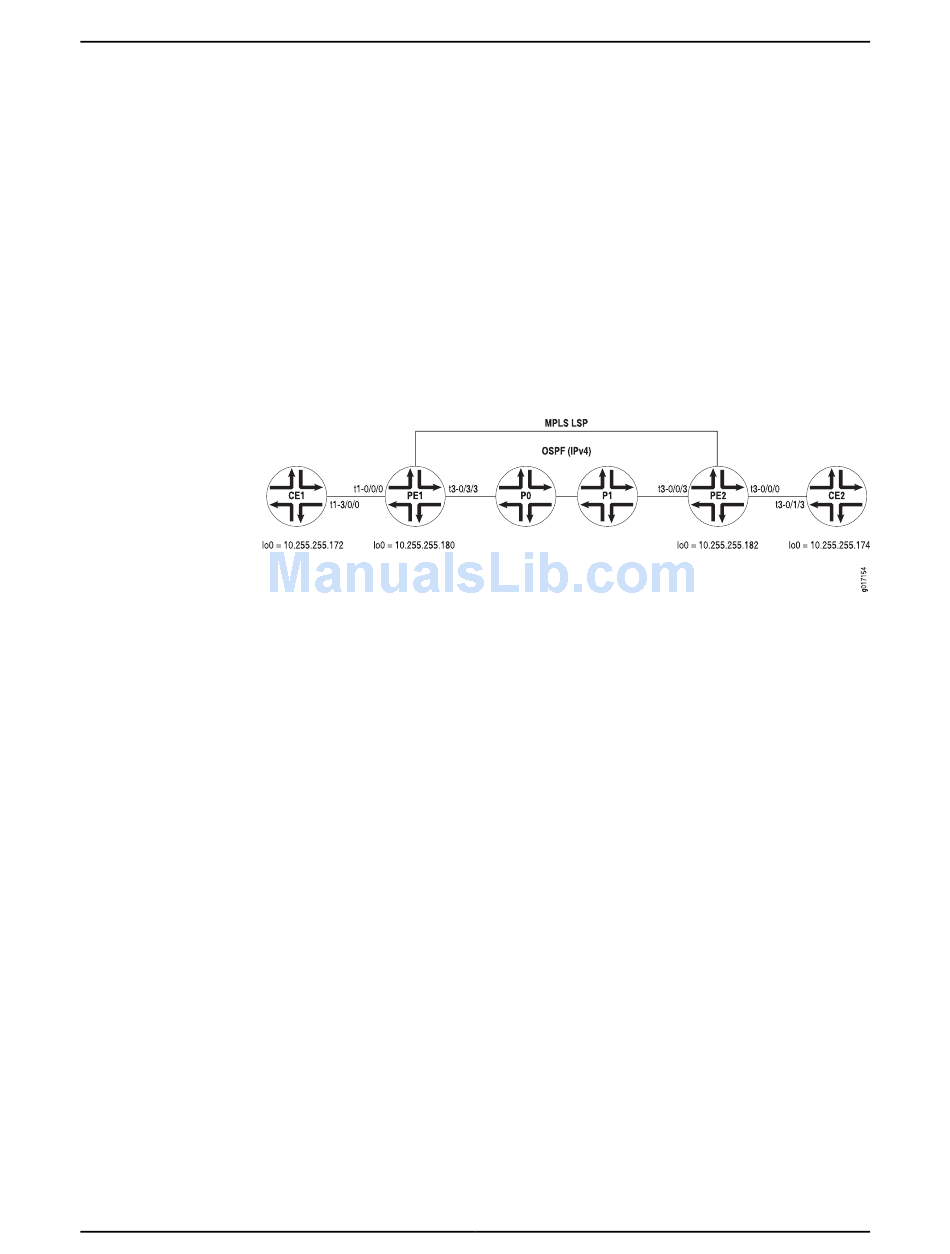

Figure 7 on page 88 shows a standard MPLS VPN network. Routers CE1 and CE2 are
customer edge routers, PE1 and PE2 are provider edge routers, and P0 is a provider core
router. Several Layer 3 VPNs are configured across this network, as well as one Layer 2
VPN. Interfaces are shown in the diagram and are not included in the configuration
example that follows.

Figure 7: Layer 3 VPN Graceful Restart Topology

On Router CE1, configure the following protocols on the logical interfaces of
OSPF on unit 101, RIP on unit 102, BGP on unit 103, and IS-IS on unit 512. Also configure
graceful restart, BGP, IS-IS, OSPF, and RIP on the main instance to be able to connect
to the routing instances on Router PE1.
[edit]
interfaces {
t3-3/1/0 {
encapsulation frame-relay;
unit 100 {
dlci 100;
family inet {
address 10.96.100.2/30;
}
}
unit 101 {
dlci 101;
family inet {
address 10.96.101.2/30;
}
}
unit 102 {
dlci 102;
family inet {
address 10.96.102.2/30;
}
}
unit 103 {
dlci 103;
family inet {
t3-3/1/0
