# Verify that Router C can obtain IP address 10.1.1.6 and all other network parameters from Router
A. (Details not shown.)
# On the DHCP server, display the IP addresses assigned to the clients.
[RouterA] display dhcp server ip-in-use
IP address
10.1.1.5
10.1.1.6

Dynamic IP address assignment configuration example

Network requirements
As shown in
10.1.1.0/24, which is subnetted into 10.1.1.0/25 and 10.1.1.128/25.
Configure DHCP server on Router A to implement the following assignment scheme.
Table 3 Assignment scheme
DHCP clients
Clients that connect
to GigabitEthernet
1/0/1
Clients that connect
to GigabitEthernet
1/0/2

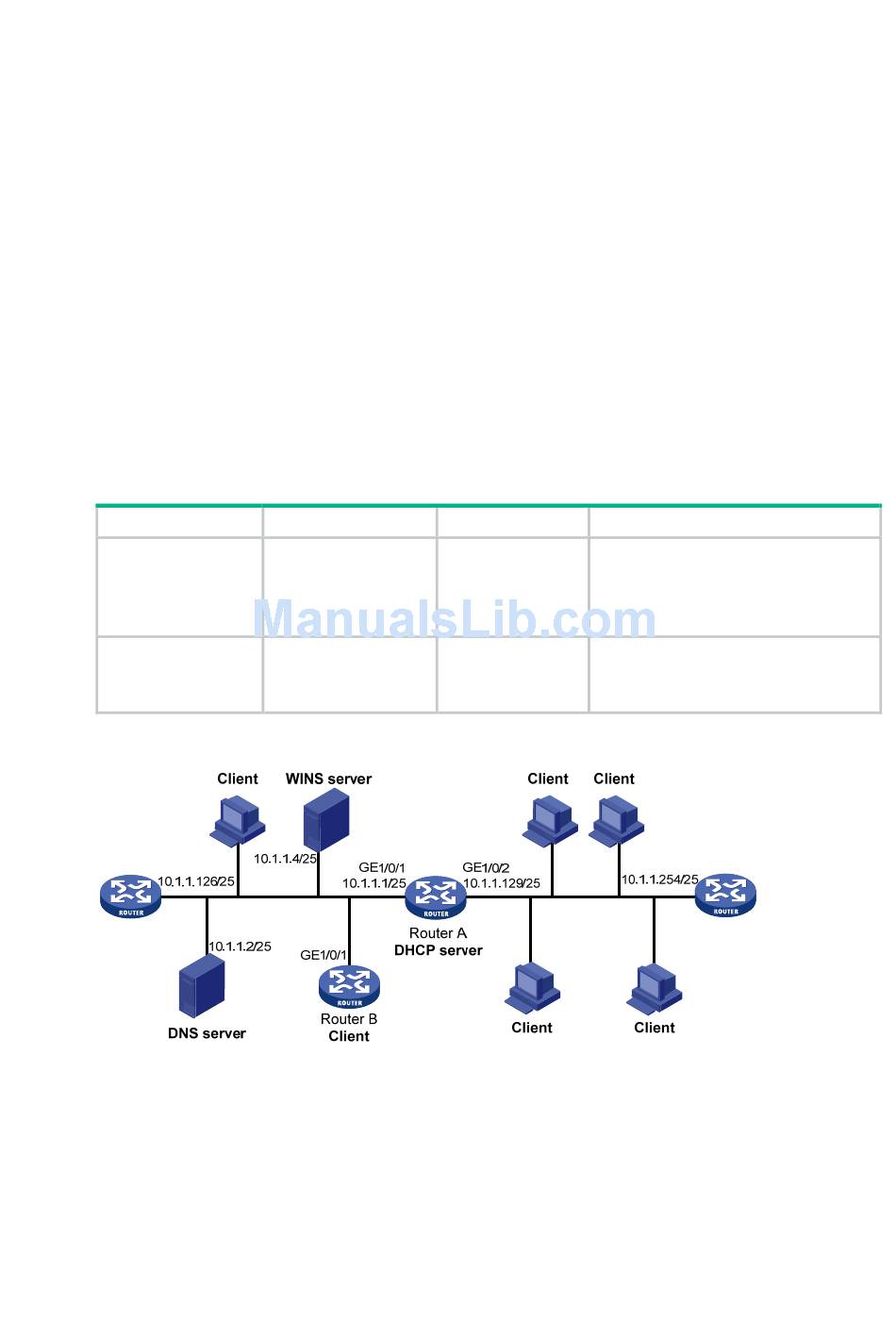

Figure 25 Network diagram
Configuration procedure
1. Specify IP addresses for interfaces. (Details not shown.)
2. Configure the DHCP server:
# Enable DHCP.
<RouterA> system-view
[RouterA] dhcp enable
Client identifier/
Hardware address
0030-3030-662e-6532-
3030-2e30-3030-322d-
4574-6865-726e-6574
000f-e200-01c0
Figure 25, the DHCP server (Router A) assigns IP addresses to clients on subnet
IP address
IP addresses on
subnet 10.1.1.0/25
IP addresses on
subnet 10.1.1.128/25
Lease expiration
Jan 21 14:27:27 2014
Unlimited
Lease Other configuration parameters
•
•
10 days and 12
•
hours
•
•
•
Five days
•
63
Type
Static(C)
Static(C)
Gateway: 10.1.1.126/25
DNS server: 10.1.1.2/25
Domain name: aabbcc.com
WINS server: 10.1.1.4/25
Gateway: 10.1.1.254/25
DNS server: 10.1.1.2/25
Domain name: aabbcc.com
