Static NAT load balancing:
# Display NAT session information generated when Host A accesses the WWW server.
[Router] display nat session verbose
Slot 1:
Initiator:
Source
Destination IP/port: 200.1.1.10/2048
DS-Lite tunnel peer: -
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: ICMP(1)
Inbound interface: GigabitEthernet2/0/1
Responder:
Source
Destination IP/port: 202.38.1.3/0
DS-Lite tunnel peer: -
VPN instance/VLAN ID/Inline ID: -/-/-
Protocol: ICMP(1)
Inbound interface: GigabitEthernet2/0/2
State: ICMP_REPLY
Application: INVALID
Start time: 2012-08-15 14:53:29
Initiator->Responder:
Responder->Initiator:
Total sessions found: 1

Outbound bidirectional NAT configuration example

Network requirements
As shown in
private network 192.168.1.0/24. The company has two public IP addresses 202.38.1.2 and
202.38.1.3. Configure NAT to allow internal users to access the external Web server by using the
server's domain name.

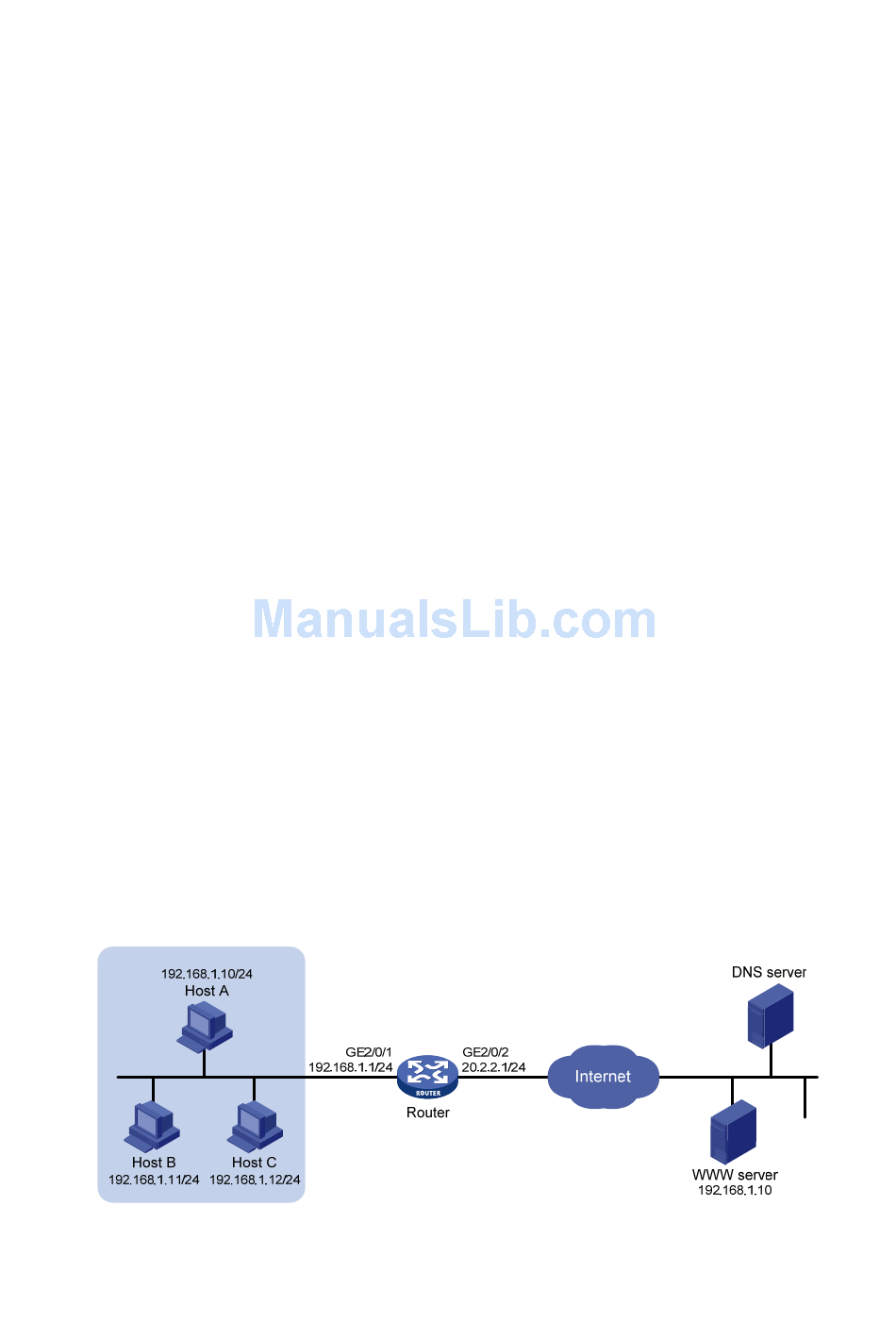

Figure 66 Network diagram
IP/port: 192.168.1.10/52992
IP/port: 200.1.1.10/4
Figure 66, the private network where the Web server resides overlaps with the company
Disabled
TTL: 12s
1 packets
1 packets
162
84 bytes
84 bytes
