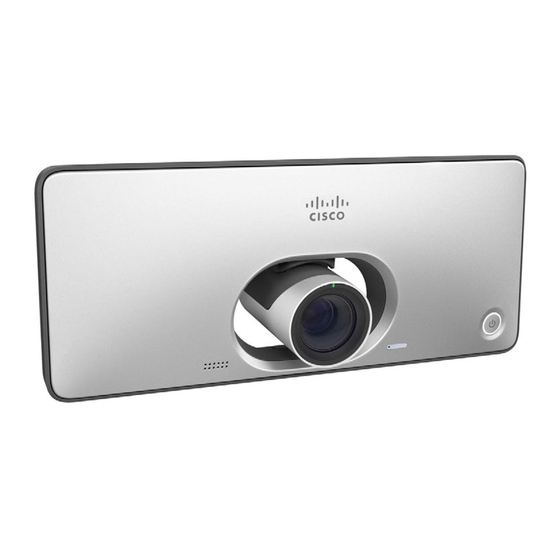

Cisco TelePresence SX10 Quick Set
INSTALLATION GUIDE
78-100213-01A0 | MARCH 2014 © 2014 Cisco Systems, Inc. All rights reserved.
1

Advertisement

loading

Related Manuals for Cisco TelePresence SX10 Quick Set

Summary of Contents for Cisco TelePresence SX10 Quick Set

  • Page 1 Cisco TelePresence SX10 Quick Set INSTALLATION GUIDE 78-100213-01A0 | MARCH 2014 © 2014 Cisco Systems, Inc. All rights reserved.

  • Page 2: Optional Accessories

    For user guides and compliance and safety information for this product, go to: www.cisco.com/go/sx-docs Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
  • Page 3 6.69 - 7.48 in. 7.48 in. For more information on how to best set up a video conferencing room, please read the video conferencing room design guides available at www.cisco.com/go/sx-docs and visit the Project Workplace tool at www.cisco.com/go/projectworkplace. NOTE: This type of equipment is to be installed by the submittor’s/dealer’s qualified installer.
  • Page 4 Ø 4 mm Ø 4 mm Ø 4 mm Ø 4 mm...

  • Page 5: Connect The Cables

    Connect the cables 1. Connect the SX10 to your monitor with the provided HDMI monitor cable. 2. Connect the LAN cable from the SX10 to an Ethernet wall plug. If Power over Ethernet (PoE) is available, the SX10 is powered through this cable. If the network does not support PoE, use the optional power adapter, or a PoE injector.

  • Page 6: Start The System

    3. Follow the instructions on the on-screen wizard. For further information on configuring your video system, download the Getting Started Guide from www.cisco.com/go/sx-docs. If there is a problem with the start up, the power button’s LED turns red. Please contact support for assistance.
  • Page 7 Optional: SX10 screen mounting with VESA bracket M6/M8 M6/M8 M6/M8 M6/M8...
  • Page 8 M6/M8 M6/M8 M6/M8 M6/M8...
