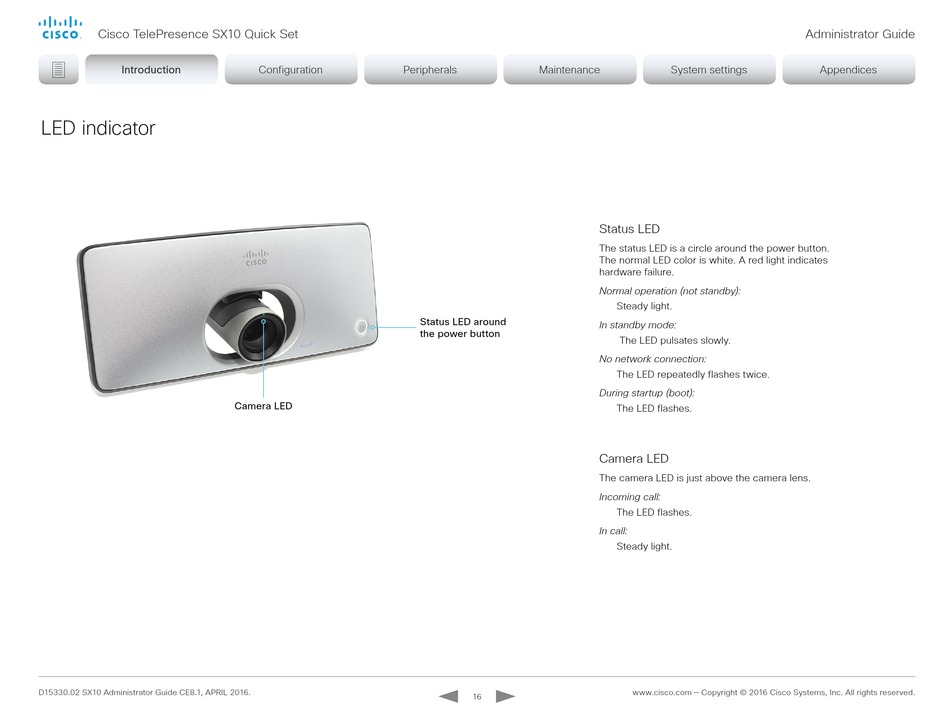

LED indicator

D15330.02 SX10 Administrator Guide CE8.1, APRIL 2016.
Configuration Peripherals
Camera LED
Maintenance
Status LED
The status LED is a circle around the power button.
The normal LED color is white. A red light indicates
hardware failure.
Normal operation (not standby):
Status LED around
In standby mode:
the power button
No network connection:
During startup (boot):
Camera LED
The camera LED is just above the camera lens.
Incoming call:
In call:
16
System settings
Steady light.
The LED pulsates slowly.
The LED repeatedly flashes twice.
The LED flashes.
The LED flashes.
Steady light.
