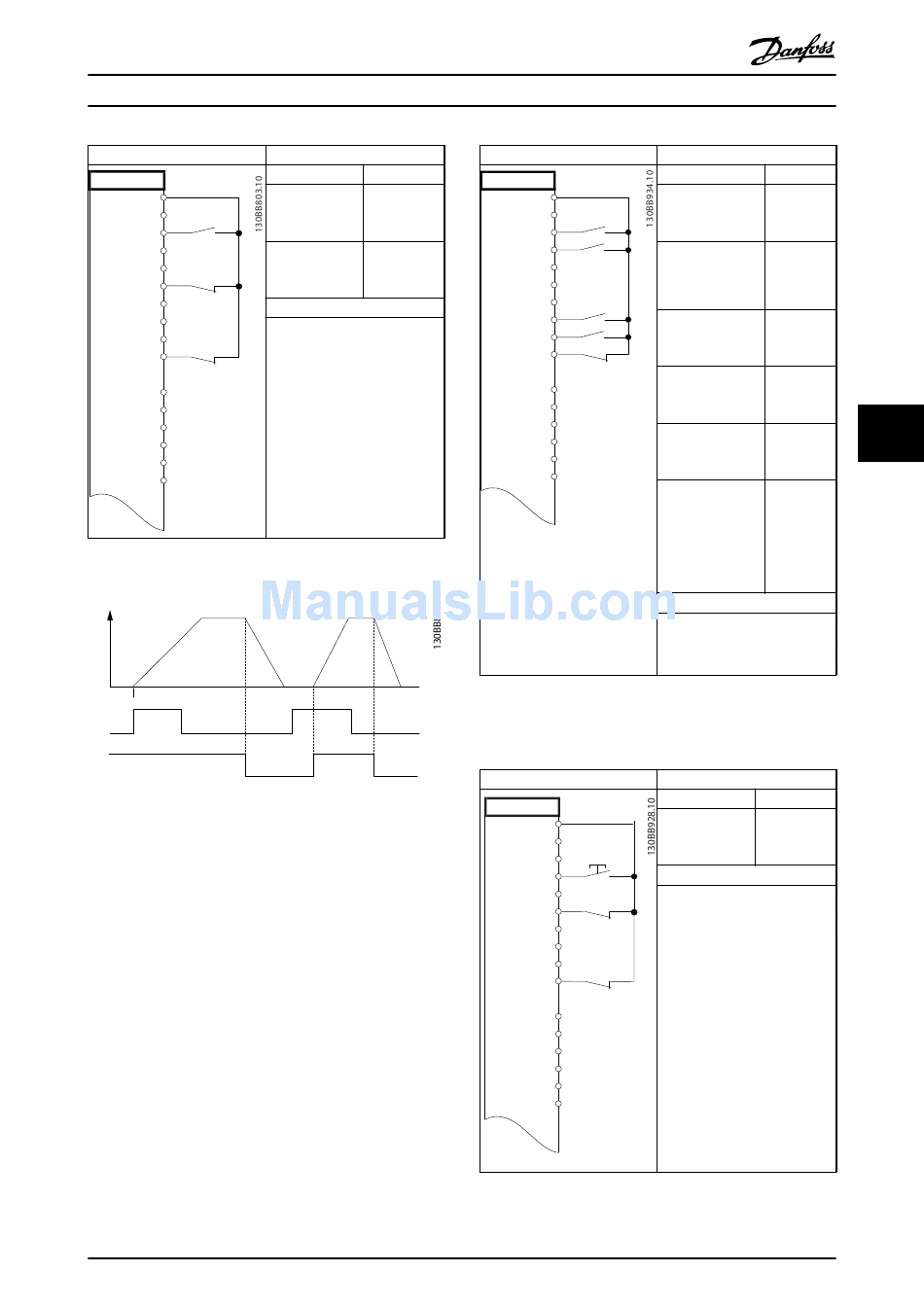

Danfoss VLT FC 102 Operating Instructions Manual page 67

Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.6 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 6.3 Latched Start/Stop Inverse
MG16I302
Operating Instructions
Parameters
Function Setting
Parameter 5-10 T [9] Latched
erminal 18 Start
Digital Input
Parameter 5-12 T [6] Stop
erminal 27 Inverse
Digital Input
* = Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
D IN 37 is an option.
Danfoss A/S © 04/2015 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.7 Start/Stop with Reversing and 4 Preset Speeds
6.2.3 External Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 External Alarm Reset
Parameters
Function Setting
Parameter 5-10 Ter [8] Start
minal 18 Digital
Input
Parameter 5-11 Ter [10]
minal 19 Digital Reversing*
Input
Parameter 5-12 Ter [0] No
minal 27 Digital operation
Input
Parameter 5-14 Ter [16] Preset
minal 32 Digital ref bit 0
Input
Parameter 5-15 Ter [17] Preset
minal 33 Digital ref bit 1
Input
Parameter 3-10 Pre
set Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
* = Default value
Notes/comments:
D IN 37 is an option.
Parameters
Function Setting
Parameter 5-11 T [1] Reset
erminal 19
Digital Input
* = Default value
Notes/comments:
D IN 37 is an option.
