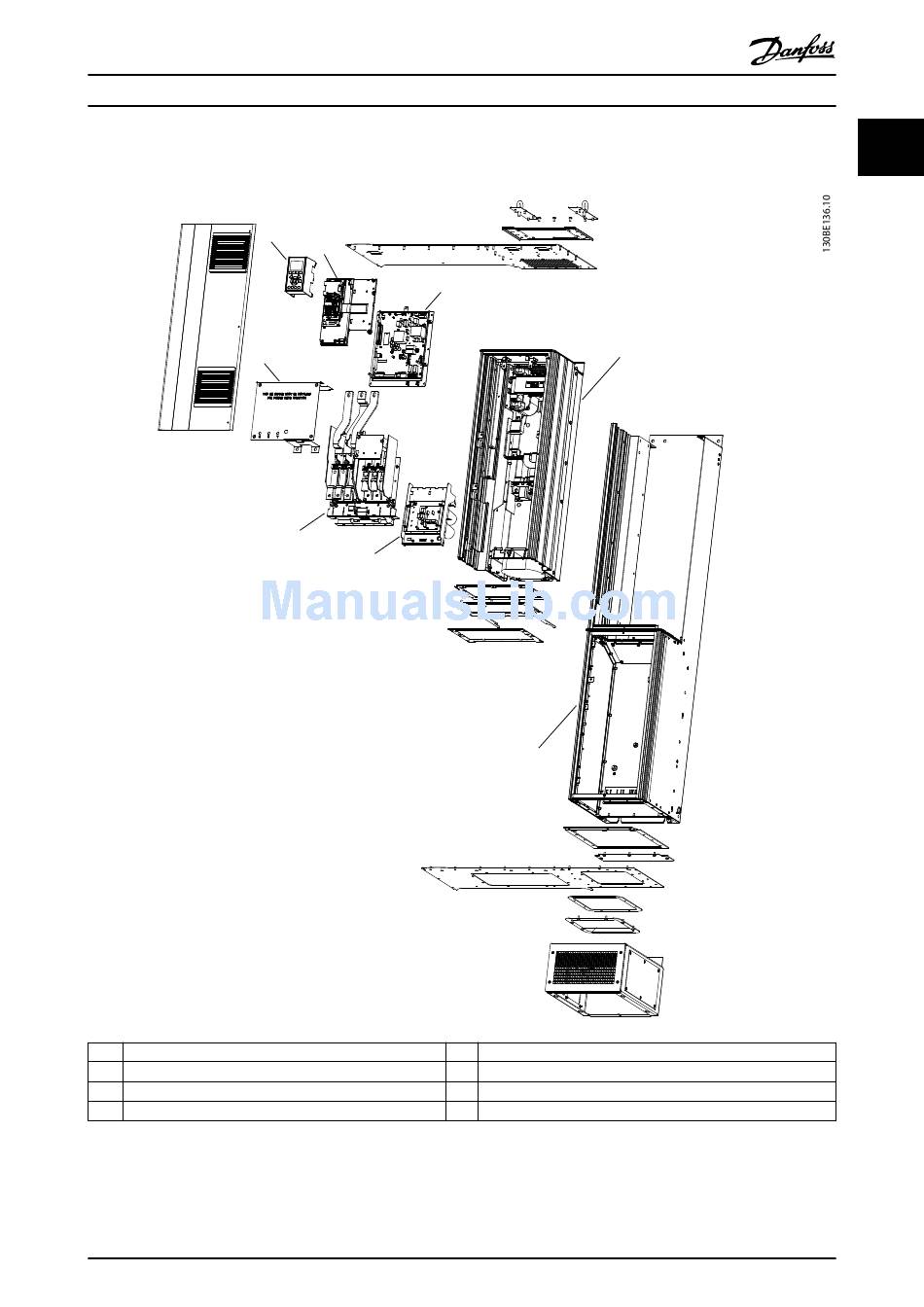

1.3.3 Exploded View Drawings

4
1 Local control panel (LCP)
2 Control card assembly
3 Power card assembly
4 Terminal cover sheet
Illustration 1.2 Enclosure Size D1n/D2n, Frequency Converter Enclosure
MG16I302
Operating Instructions
1
2
5
6
Danfoss A/S © 04/2015 All rights reserved.
3
6
8
5 Input/output terminal assembly
6 Capacitorbank assembly
7 D1/D2 assembly
8 EOC assembly
