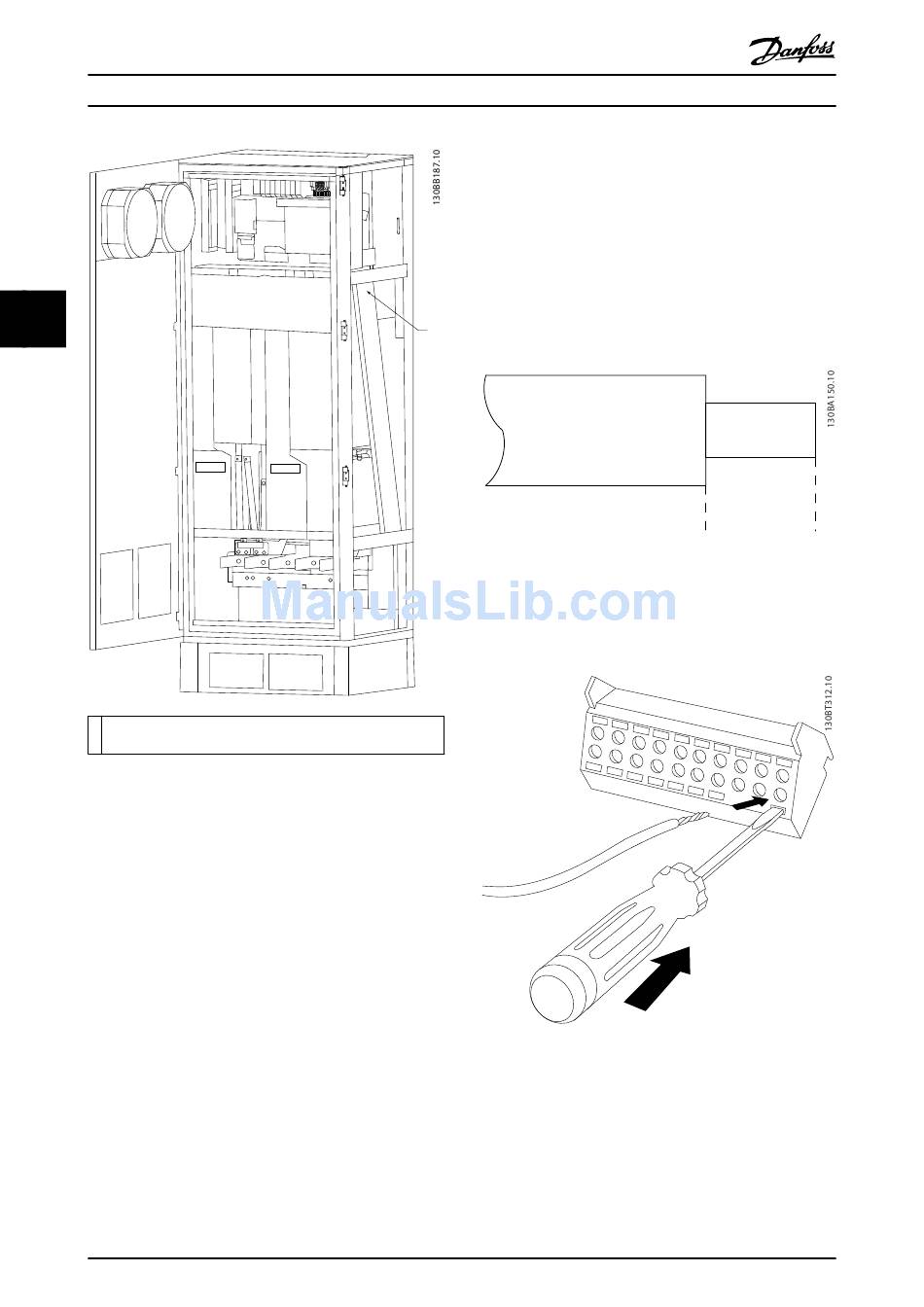

Access To Control Terminals; Electrical Installation, Control Terminals - Danfoss VLT FC 102 Operating Instructions Manual

Electrical Installation
4 4
1 Routing path for the control card wiring inside the frequency
converter enclosure.
Illustration 4.8 Control Card Wiring Path for Enclosure Size F18
44
®
VLT HVAC Drive FC 102 Low Harmonic Drive

4.8.2 Access to Control Terminals

All terminals for the control cables are located beneath the
LCP (both filter and frequency converter LCPs). They are
accessed by opening the door of the unit.
4.8.3 Electrical Installation, Control
To connect the cable to the terminal:
1
1.
Illustration 4.9 Length to Strip the Insulation
2.
3.
Illustration 4.10 Inserting the Cable in the Terminal Block
4.
To remove the cable from the terminal:
1.
2.
Danfoss A/S © 04/2015 All rights reserved.
Terminals
Strip insulation by about 9–10 mm.
Insert a screwdriver (maximum 0.4x2.5 mm) in
the square hole.
Insert the cable in the adjacent circular hole.
Remove the screwdriver. The cable is now
mounted in the terminal.
Insert a screwdriver (maximum 0.4 x 2.5 mm) in
the square hole.
Pull out the cable.
9 - 10 mm
(0.37 in)
MG16I302
