5.2.2 Electrical installation and control cables

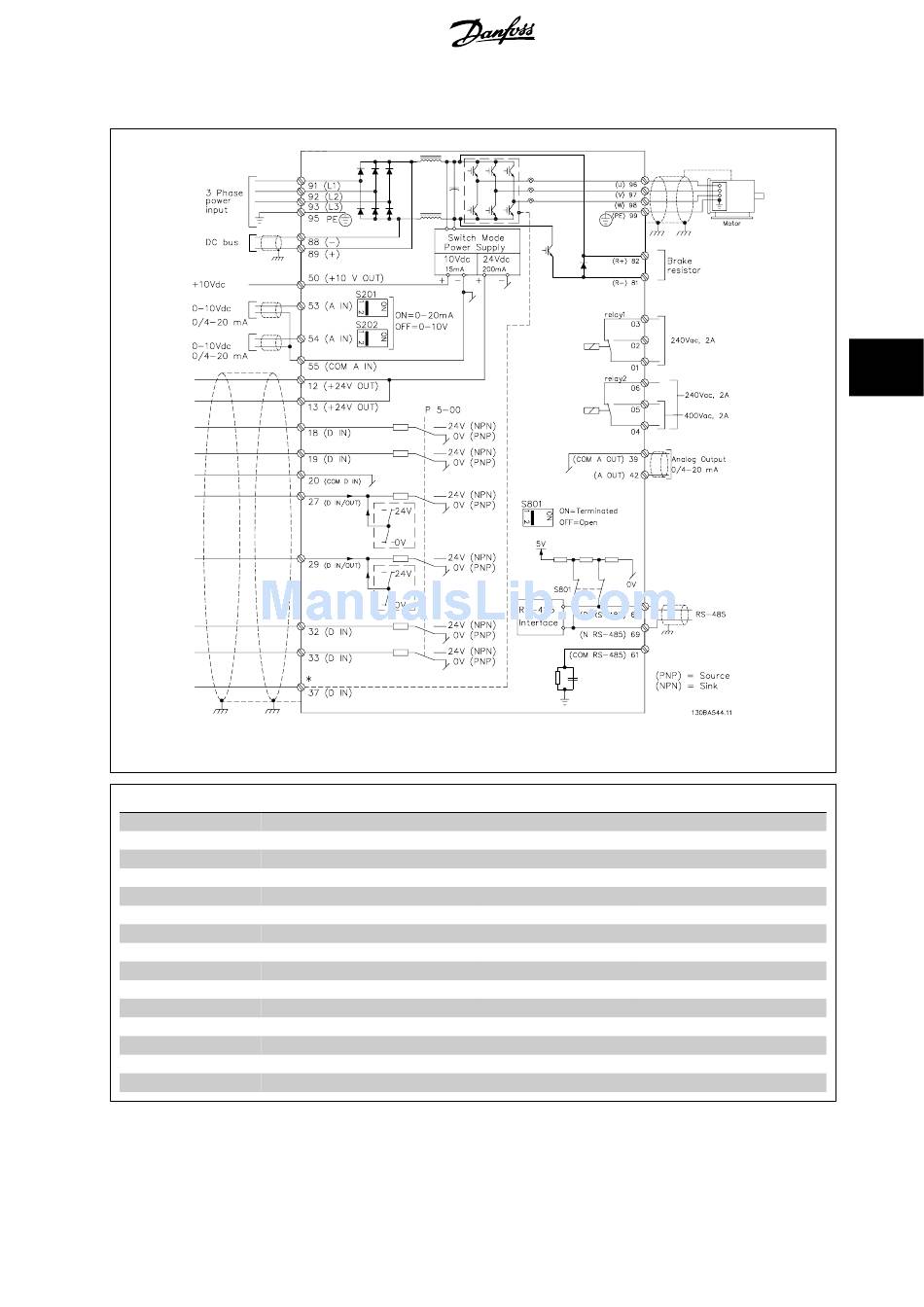

Illustration 5.8: Diagram showing all electrical terminals. (Terminal 37 present for units with Safe Stop Function only.)
Terminal number
1+2+3
4+5+6
12
13
18
19
20
27
29
32
33
37
42
53
54
Table 5.3: Terminal connections
Terminal description
Terminal 1+2+3-Relay1
Terminal 4+5+6-Relay2
Terminal 12 Supply
Terminal 13 Supply
Terminal 18 Digital Input
Terminal 19 Digital Input
Terminal 20
Terminal 27 Digital Input/Output
Terminal 29 Digital Input/Output
Terminal 32 Digital Input
Terminal 33 Digital Input
Terminal 37 Digital Input
Terminal 42 Analog Output
Terminal 53 Analog Input
Terminal 54 Analog Input
