General Information

The FD141CV-C-6 is a special mission 14" night vision/sunlight readable widescreen
monitor.
Built with retrofit aircraft integration in mind, the display can switch between three video
sources using the front button controls. The display includes a daylight/NVG rocker
switch mounted on the front bezel. Additional functions can be added using the 8 bezel
keys; 4-buttons on each side located on the front face of the bezel. These functions are
generated by the mission computer via USB connection through the circular 22-pin
connector.

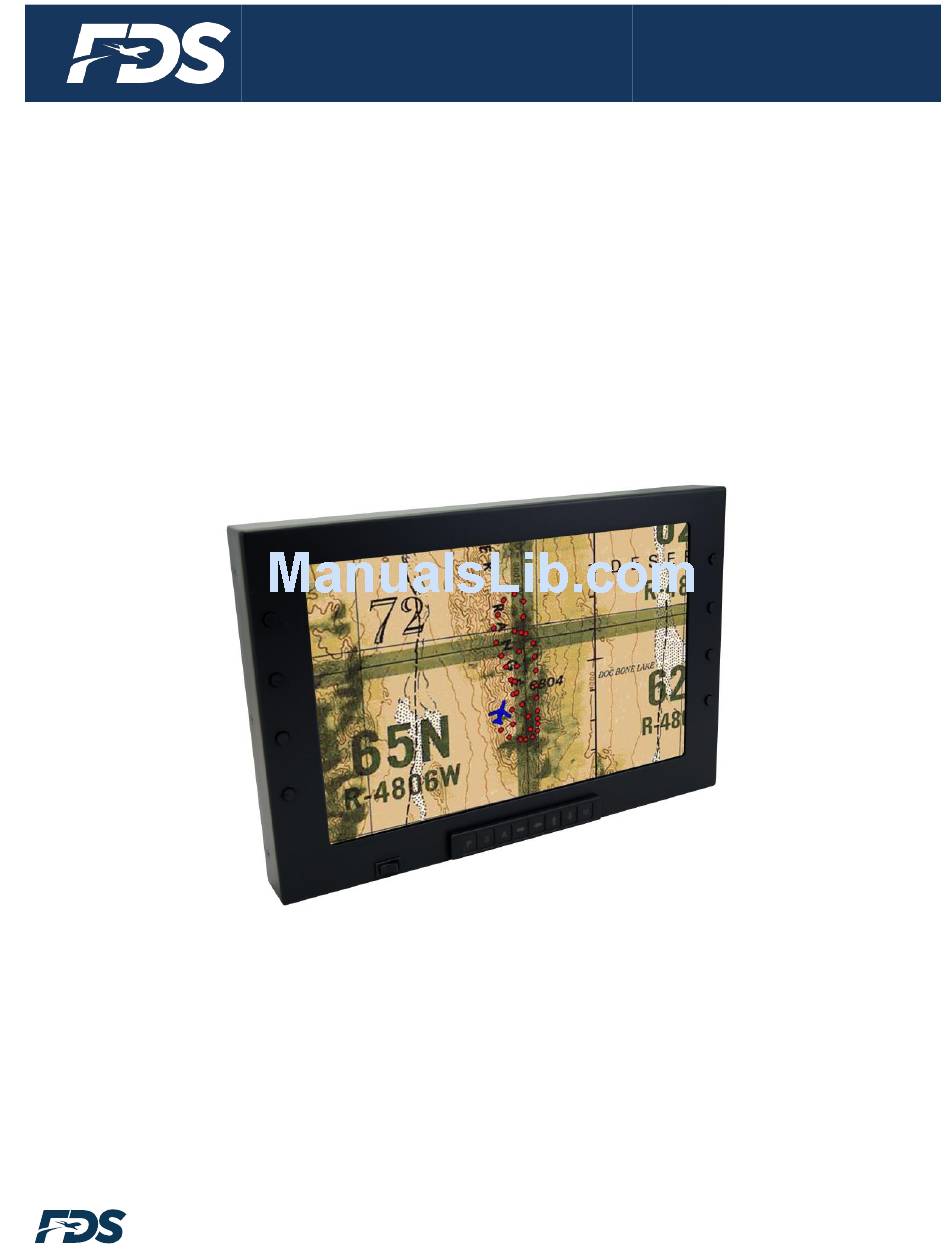

Front View

Additional Information

The FD141CV-C-6 utilizes a state of the art digital video decoding chipset for video input.
The available video sources are HDSDI (High Definition SDI), VGA (Computer Video,
such as a Moving Map) and Composite Video (Camera, Standard Definition DVD).
The LCD is protected with a .060" non-glare Lexan lens to prevent scratching of the LCD,
and to meet stringent FAA abrasive load criteria.
