General Information

The FD141CV-C-1 is a 14.1" High –Definition Touchscreen LCD with Quad Screen
display capabilities. This monitor includes seven video source inputs: (4) HD-SDI, quad
screen input, (1) DVI, Computer Input, (1) VGA, Computer graphics such as Moving
Maps, and (1) Composite NTSC/PAL.
The FD141CV-C-1 also has touchscreen capability to support programs with RS-232
interface capability. Source selection is made from the front mounted bezel buttons which
provides the operator to easily select the multiple sources available.

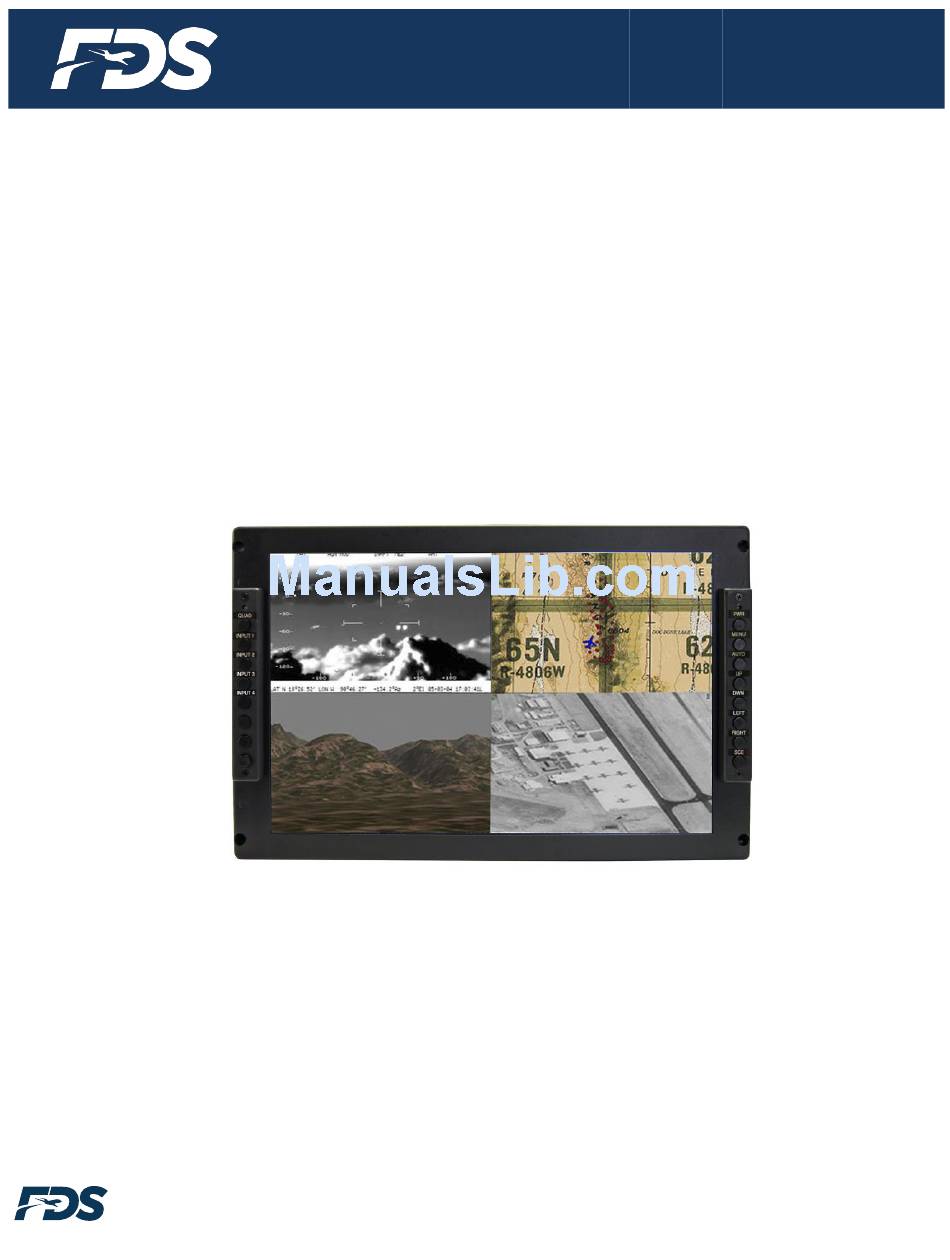

Front View

Additional Information

The FD141CV-C-1 utilizes a state of the art digital video decoding chipset for all video
inputs. Three video sources are activated: HD-SDI, with input from an internal quad board
for viewing up to 4 HD Video inputs, DVI, and VGA (for computer graphics i.e. moving
maps).
Connecting the SDI input to the output of the attached quad box on the unit will enable the
operator to view any image from any of the connected screens on board the aircraft.
The LCD is protected with a .060" non-glare Lexan lens to prevent scratching of the LCD,
and to meet stringent FAA abrasive load criteria.
