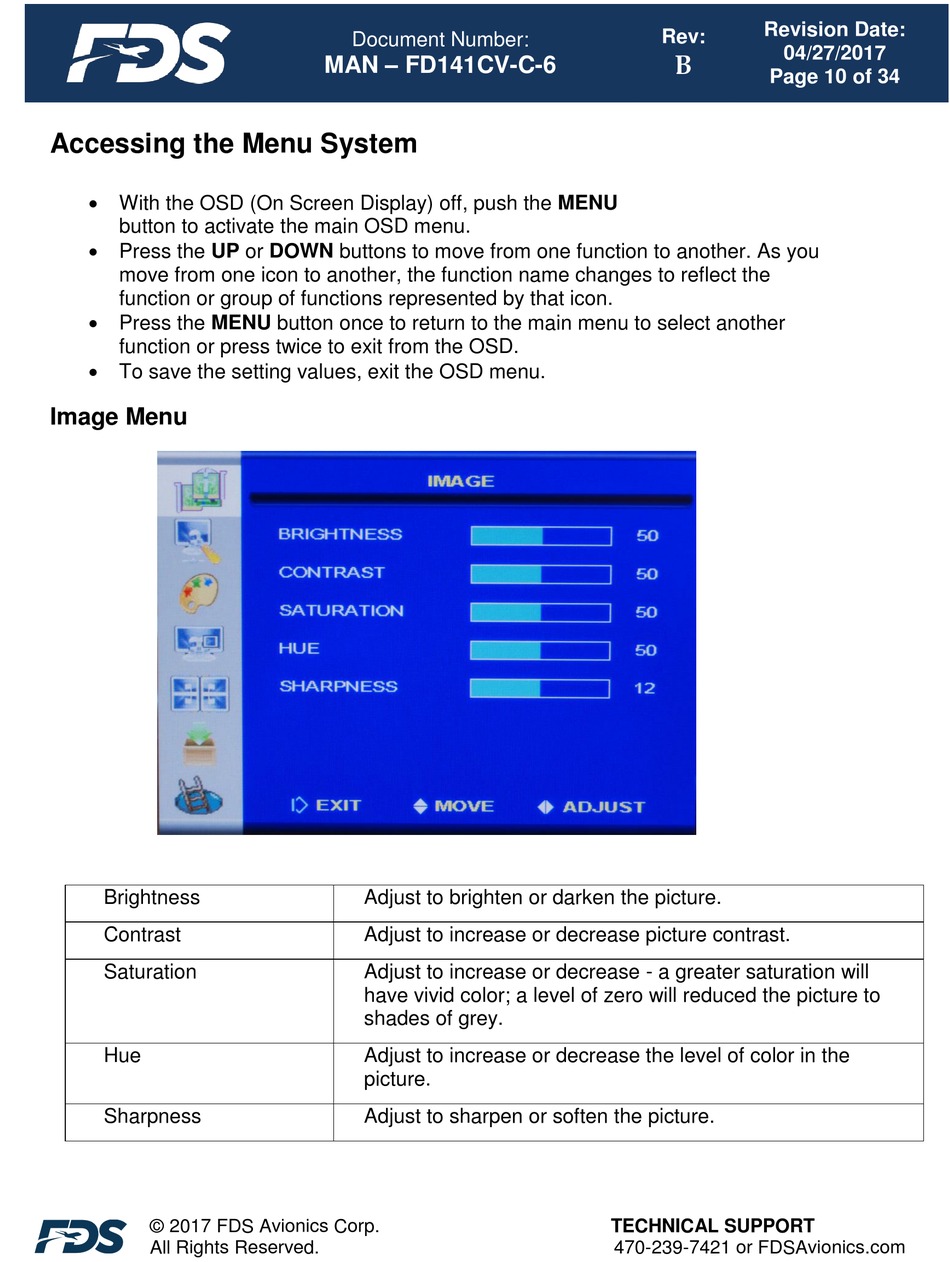

Accessing the Menu System
 With the OSD (On Screen Display) off, push the MENU
button to activate the main OSD menu.
 Press the UP or DOWN buttons to move from one function to another. As you
move from one icon to another, the function name changes to reflect the
function or group of functions represented by that icon.
 Press the MENU button once to return to the main menu to select another
function or press twice to exit from the OSD.
 To save the setting values, exit the OSD menu.
Image Menu
Brightness
Contrast
Saturation
Hue
Sharpness
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD141CV-C-6
Adjust to brighten or darken the picture.
Adjust to increase or decrease picture contrast.
Adjust to increase or decrease - a greater saturation will
have vivid color; a level of zero will reduced the picture to
shades of grey.
Adjust to increase or decrease the level of color in the
picture.
Adjust to sharpen or soften the picture.
